Instrument Panel Outer Air Outlet Duct Replacement

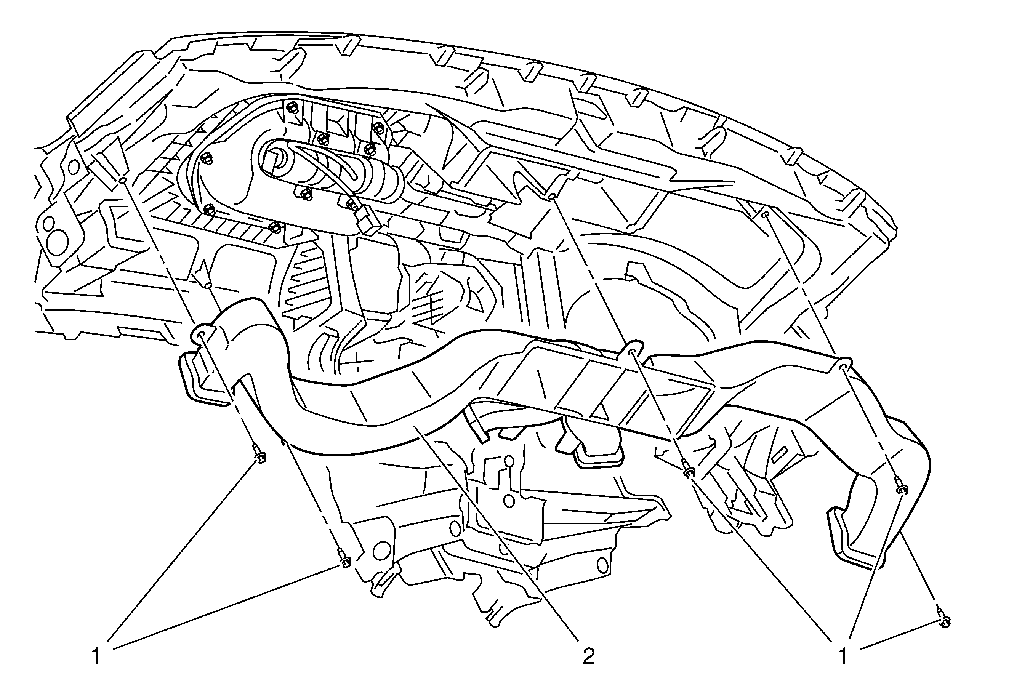

Fig 1: Instrument Panel Outer Air Outlet Duct & Fasteners
GM2193996Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1 Instrument Panel Outer Air Outlet Duct Fastener (Qty:5)
2 Instrument Panel Outer Air Outlet Duct
