Instrument Panel Center Air Outlet Deflector Housing Replacement

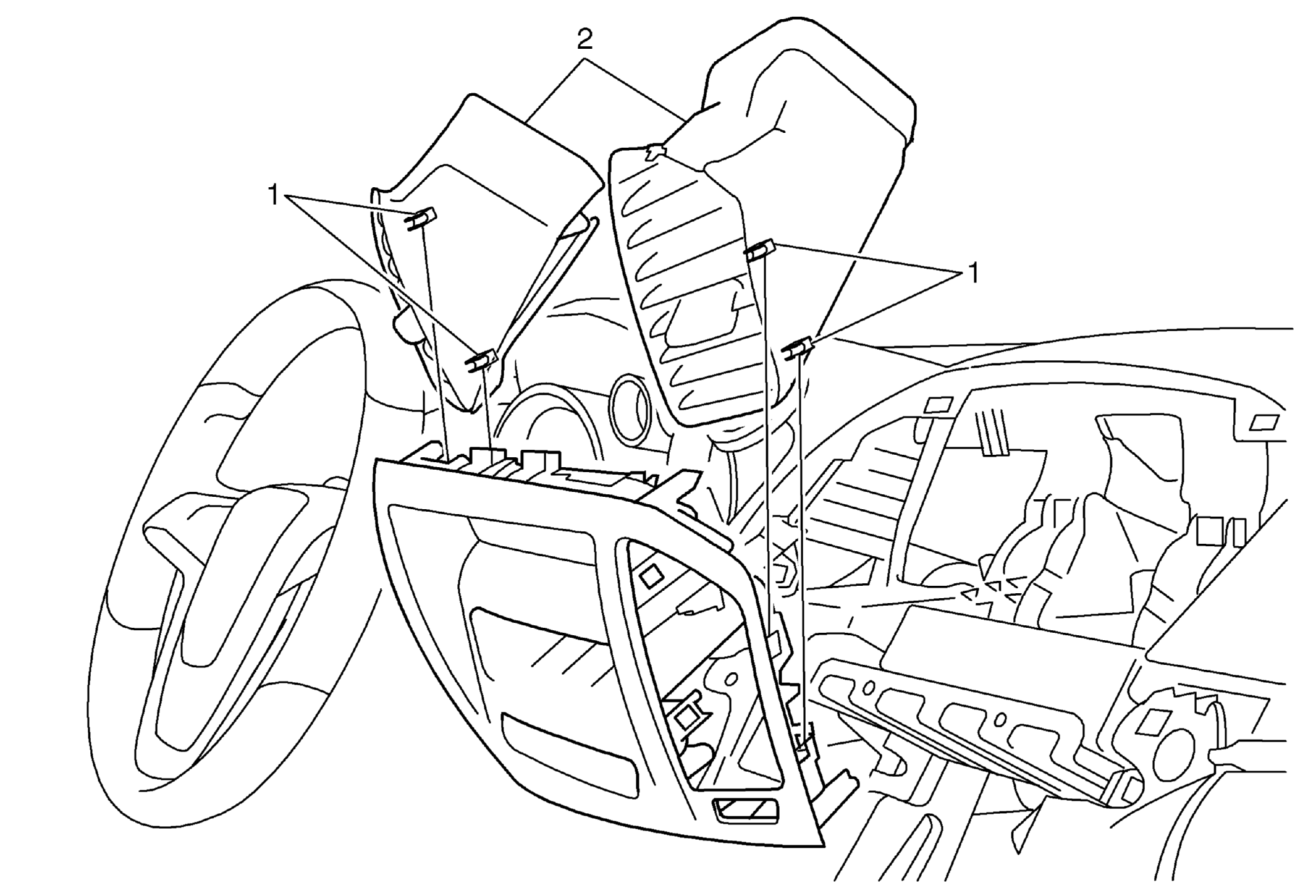

Fig 1: Instrument Panel Center Air Outlet Deflector Housing & Fasteners
GM2020233Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel (I/P) upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Instrument Panel Center Air Outlet Deflector Housing Fastener (Qty:4)
2 Instrument Panel Center Air Outlet Deflector Housing
