Floor Rear Air Outlet Duct Replacement - Right Side

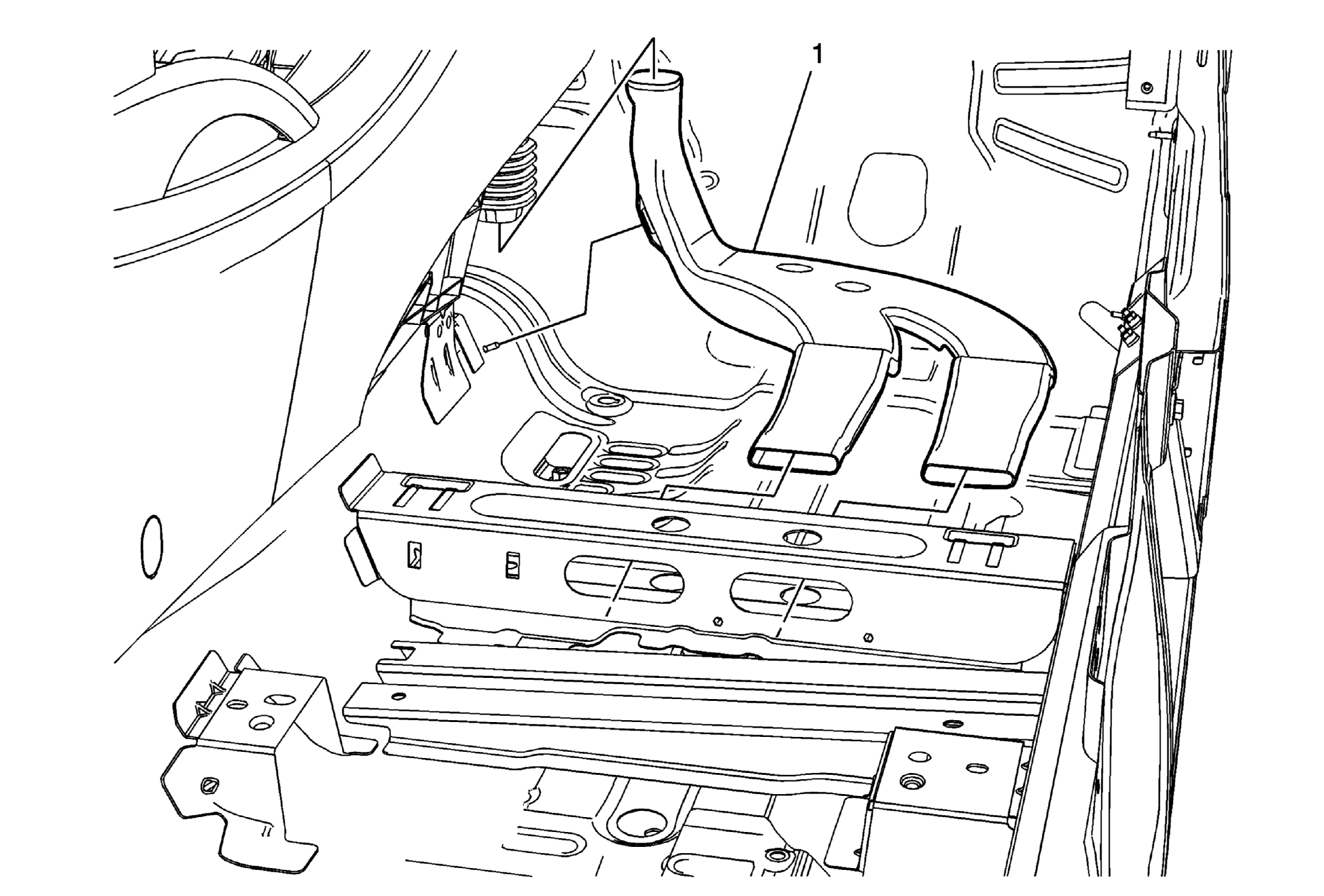

Fig 1: Floor Rear Air Outlet Duct - Right Side
GM2204856Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
1 Floor Rear Air Outlet Duct

Procedure

  1. Remove the floor rear air outlet duct from the retainer and the heater air conditioning evaporator and blower module.
  2. Remove the floor rear air outlet duct from vehicle.
