Floor Rear Air Outlet Duct Replacement - Left Side

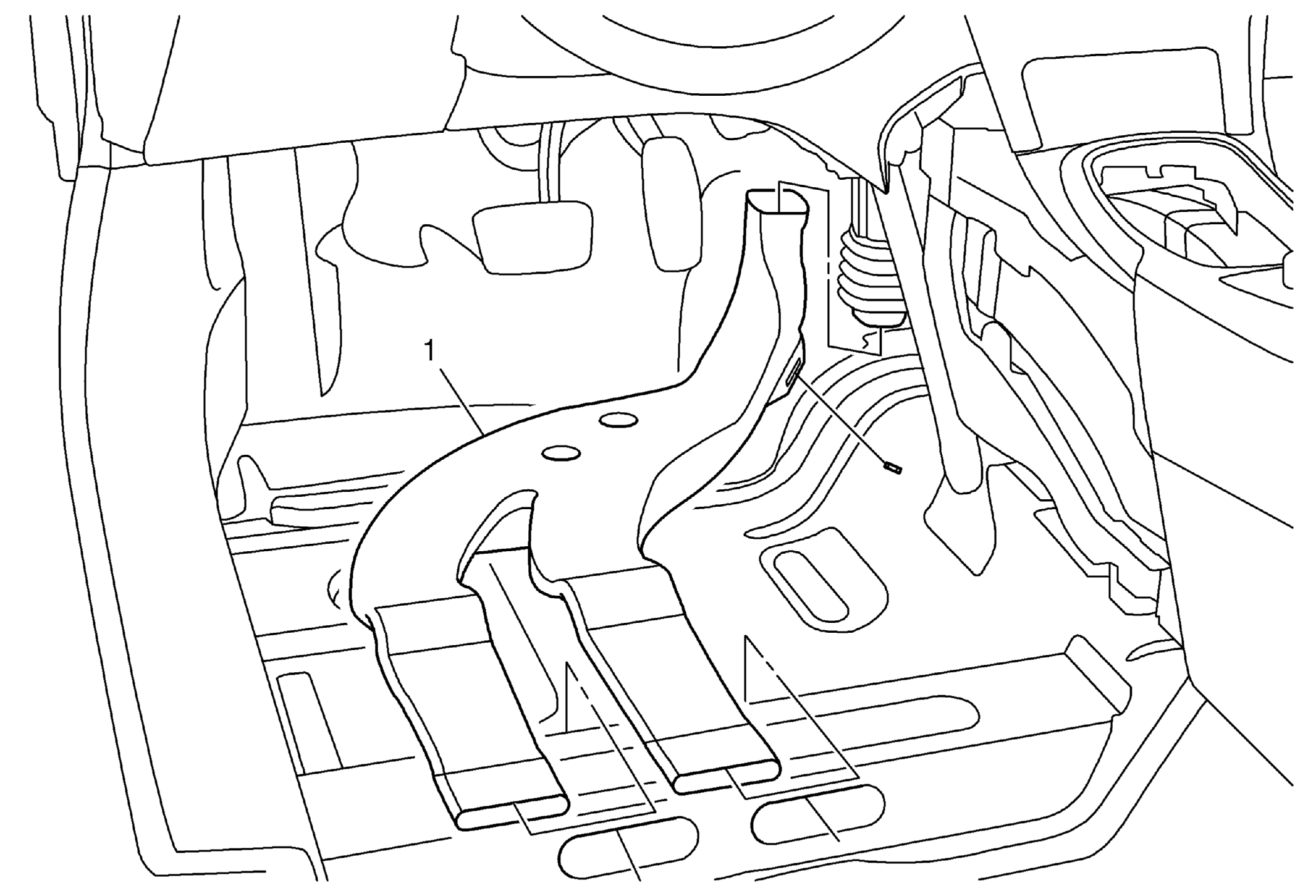

Fig 1: Floor Rear Air Outlet Duct - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the Front Floor Panel Carpet. Refer to Front Floor Panel Carpet Replacement .
1	Floor Rear Air Outlet Duct Procedures Remove the Floor Rear Air Outlet Duct from the retainer and the Heater Air Conditioning Evaporator and Blower Module. Remove the Floor Rear Air Outlet Duct from vehicle.

Callout

Component Name

Preliminary Procedure
Remove the Front Floor Panel Carpet. Refer to Front Floor Panel Carpet Replacement .

Floor Rear Air Outlet Duct

Procedures

Remove the Floor Rear Air Outlet Duct from the retainer and the Heater Air Conditioning Evaporator and Blower Module.
Remove the Floor Rear Air Outlet Duct from vehicle.
