Compressor Pressure Relief Valve Replacement (LTG, LUK)

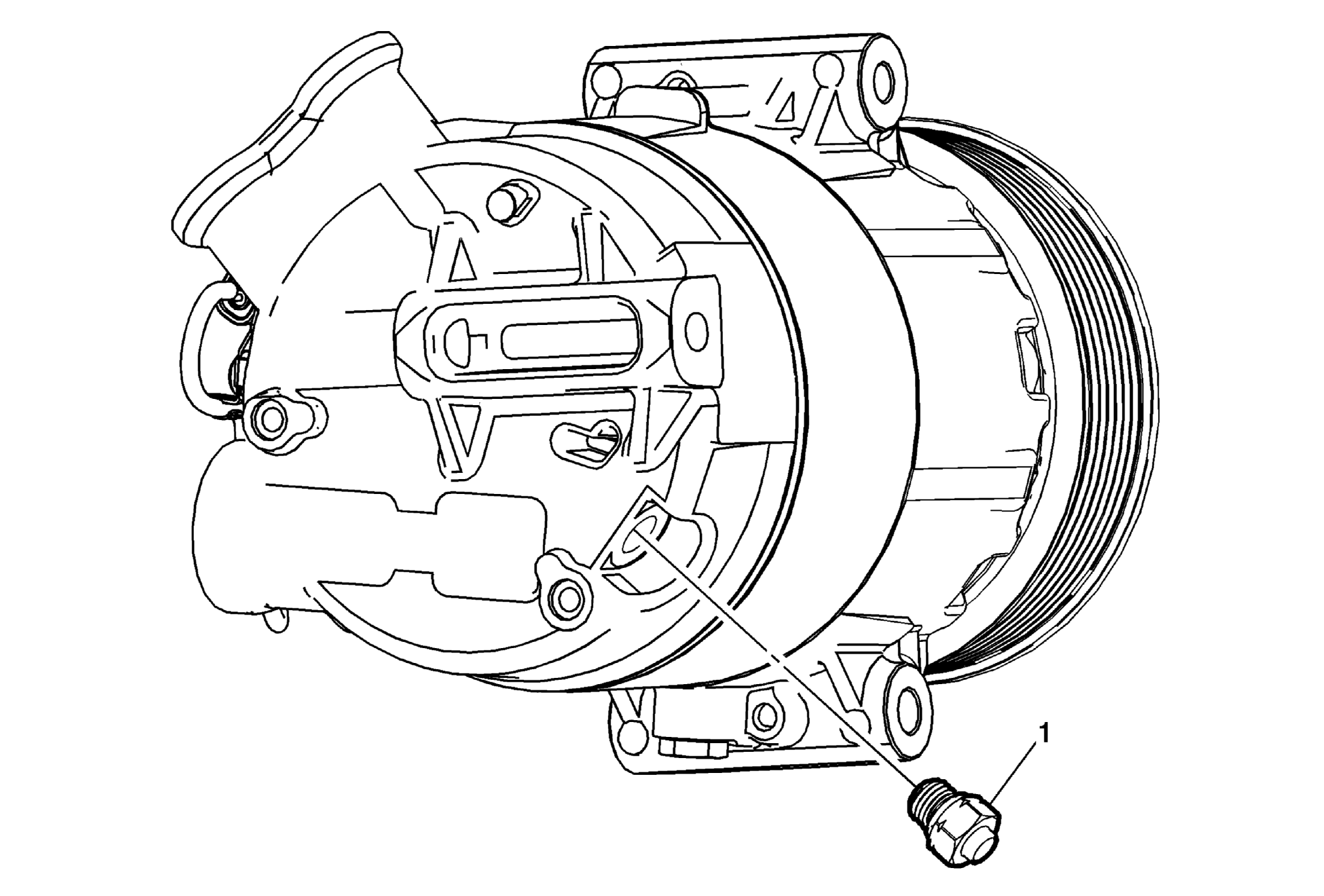

Fig 1: Compressor Pressure Relief Valve (LUK)
GM2568101Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LUK) , Air Conditioning Compressor Replacement (LTG) .
1 Compressor Pressure Relief Valve
CAUTION:

Refer to Fastener Caution .


Procedure
Remove and discard sealing washers. Refer to Air Conditioning System Seal Replacement .
Tighten
8 N.m (70 lb in)
