Compressor Pressure Relief Valve Replacement (LEA)

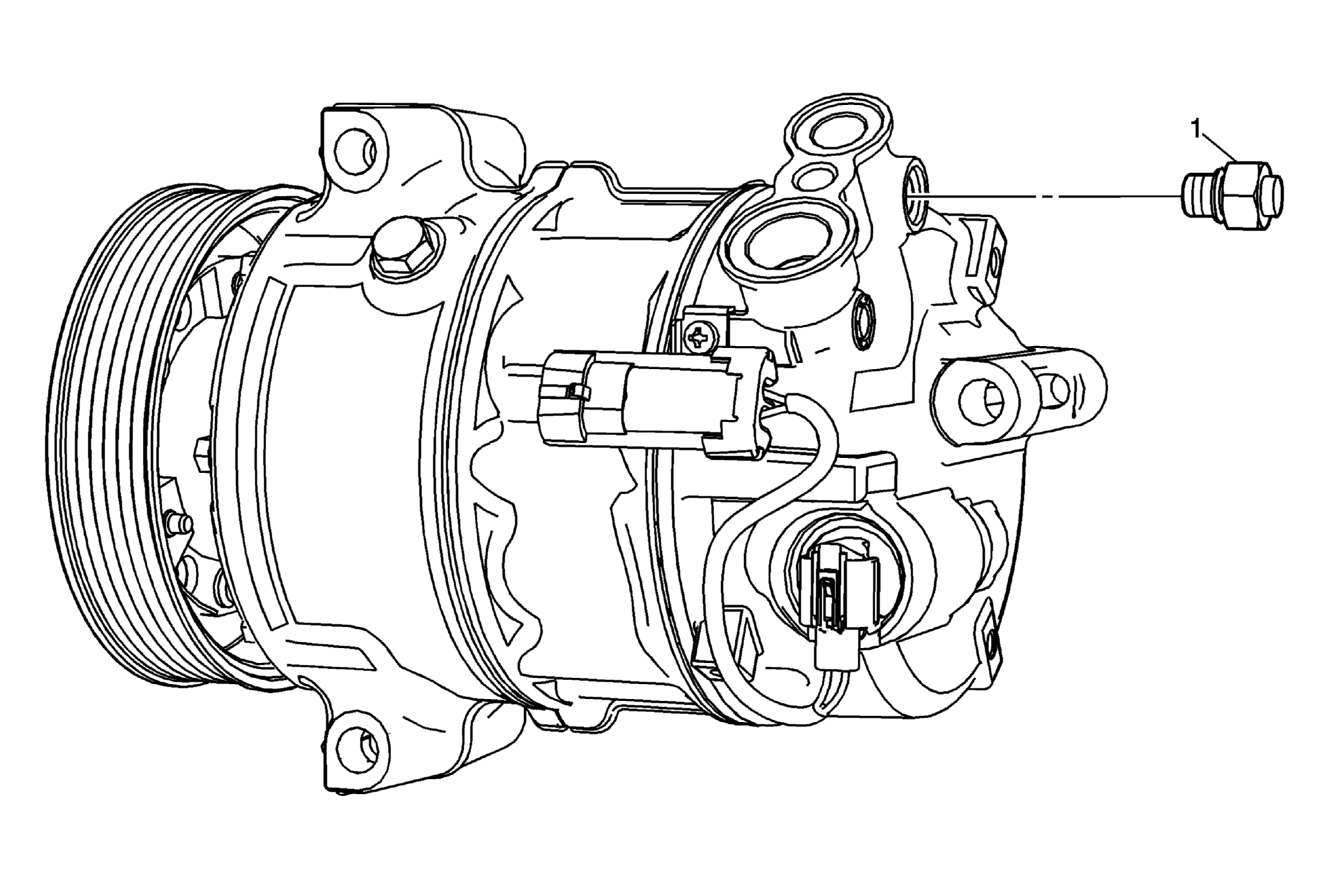

Fig 1: Compressor Pressure Relief Valve
GM2221139Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LEA) .
1 Compressor Pressure Relief Valve
CAUTION:

Refer to Fastener Caution .


Procedure
Remove and discard sealing washers. Refer to Air Conditioning System Seal Replacement .
Tighten
8 N.m (70 lb in)
