Blower Motor Replacement

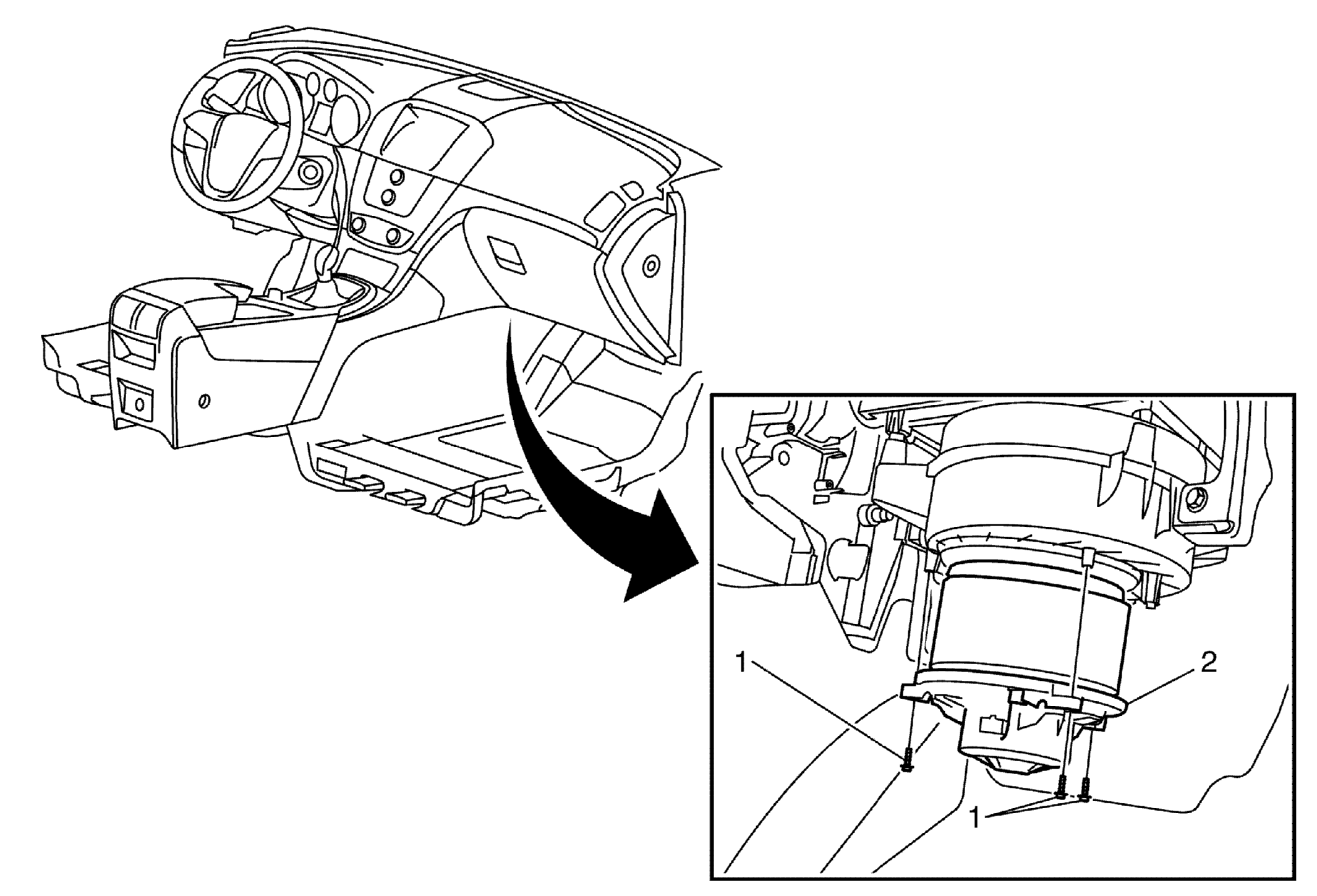

Fig 1: Blower Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side . Disconnect the blower motor electrical connector.
1	Blower Motor Fastener (Qty:3)
2	Blower Motor

Callout

Component Name

Preliminary Procedures

Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
Disconnect the blower motor electrical connector.

Blower Motor Fastener (Qty:3)

Blower Motor
