Air Conditioning Evaporator Core Replacement

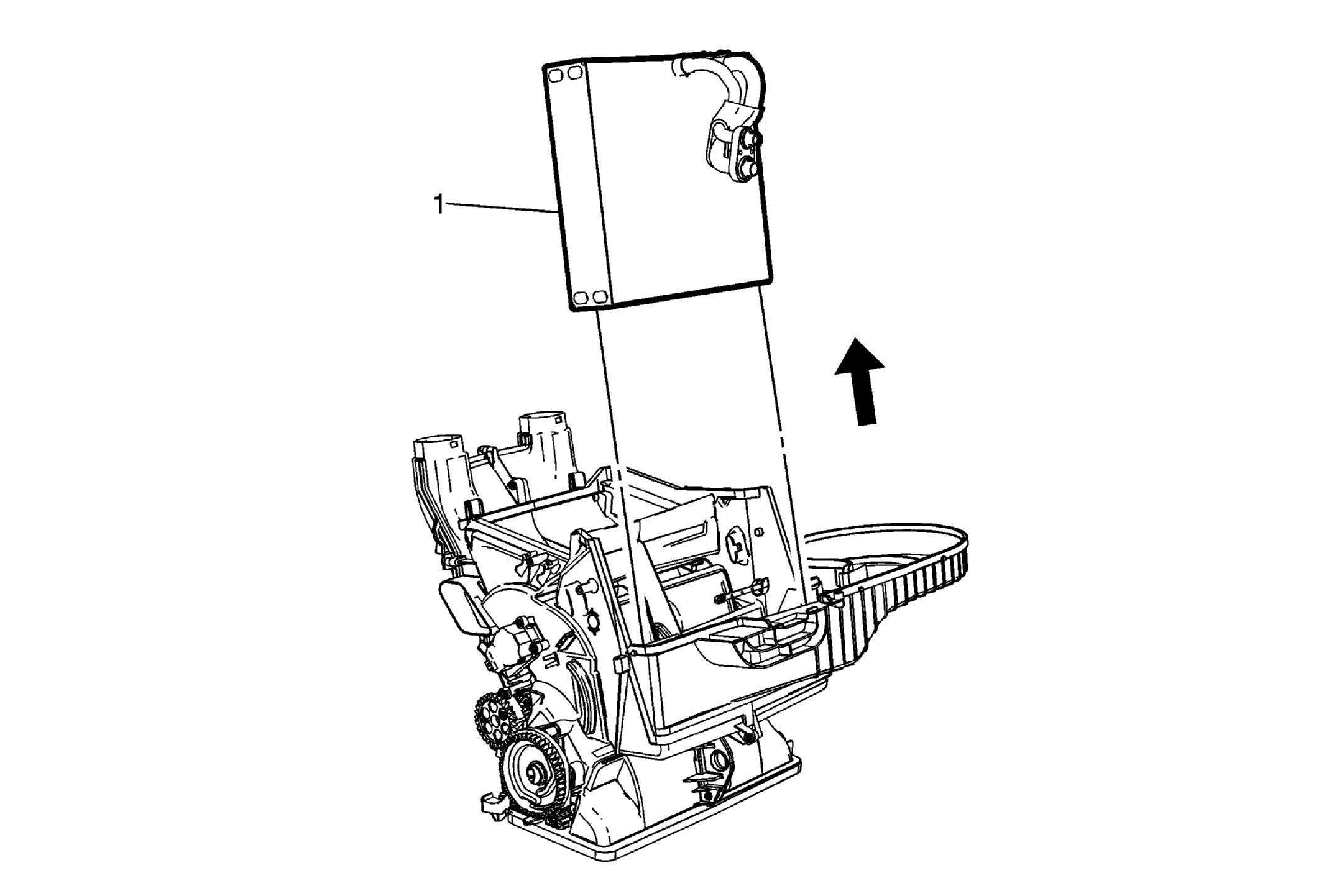

Fig 1: Air Conditioning Evaporator

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the heater and air conditioning evaporator and blower lower case. Refer to Heater and Air Conditioning Evaporator and Blower Lower Case Replacement .
1	Air Conditioning Evaporator Assembly
