Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

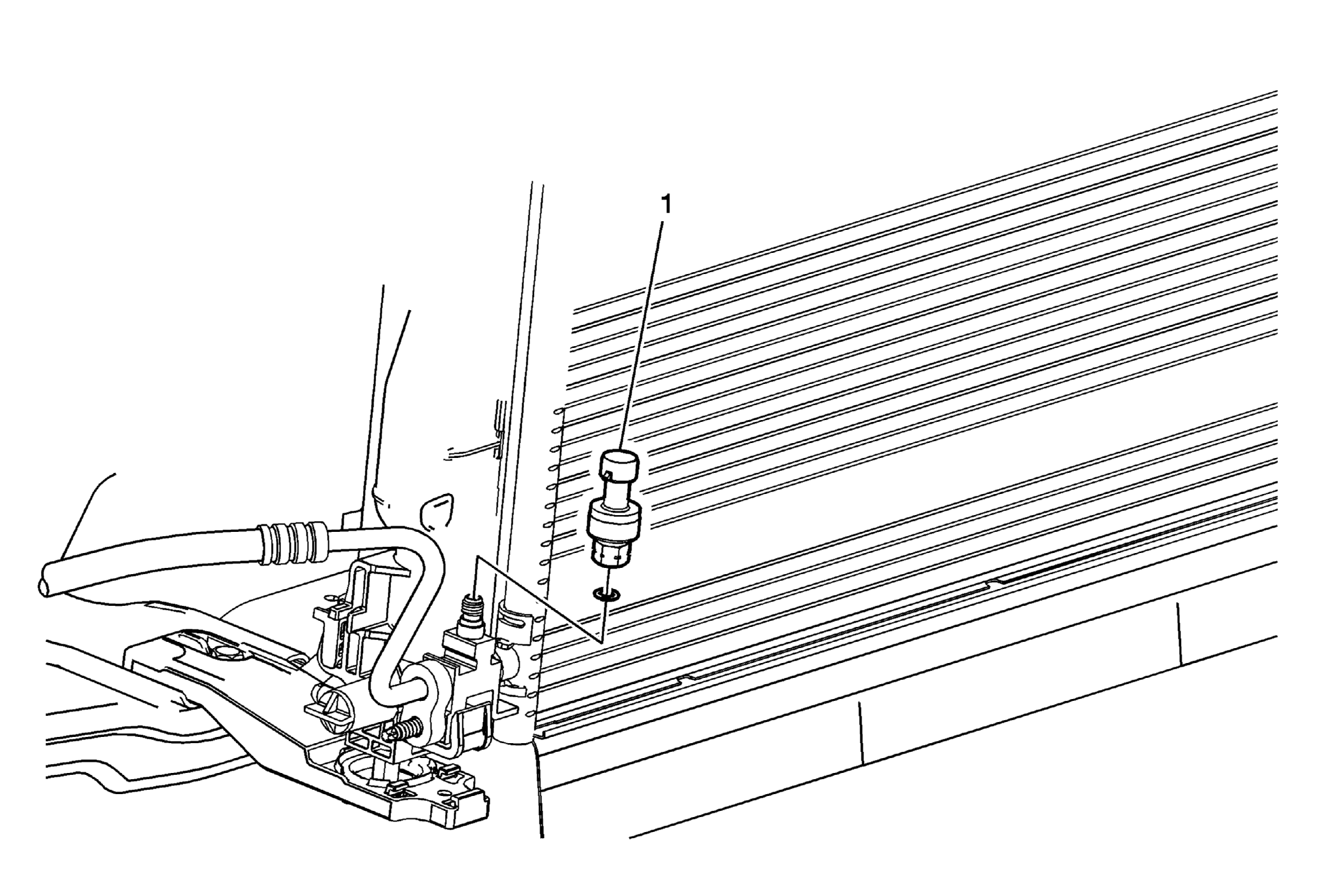

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor
GM2211310Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement
1 Air Conditioning (AC) Refrigerant Pressure Sensor
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Disconnect the electrical connector from A/C refrigerant pressure sensor.
  2. Remove the A/C refrigerant pressure sensor from the A/C condenser.
  3. Remove and discard the O-ring. Refer to Air Conditioning O-Ring Seal Replacement

Tighten
7.4 N.m (66 lb in)
