Air Inlet Housing Replacement

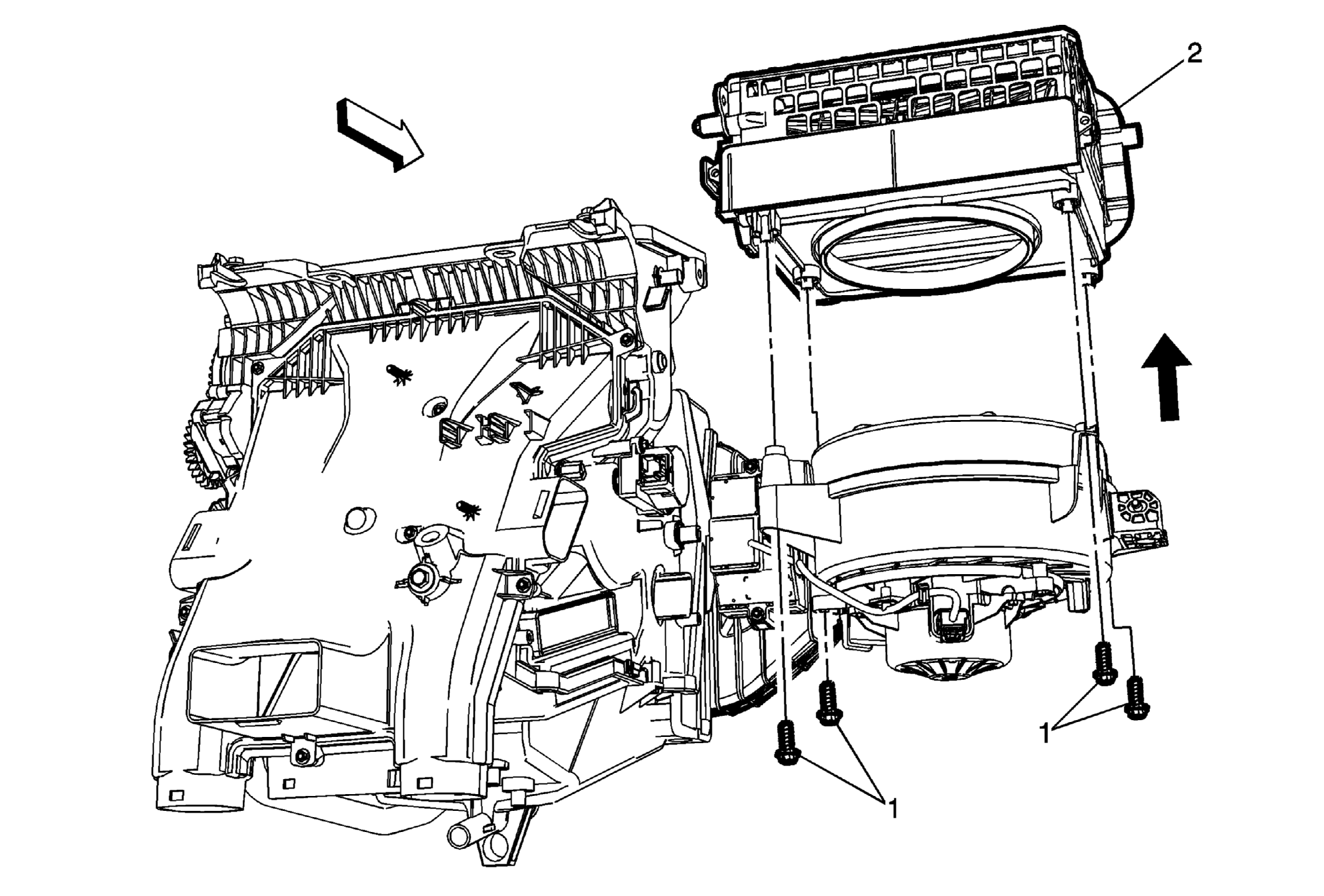

Fig 1: Air Inlet Housing & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . Disconnect the electrical connectors as necessary.
1	Air Inlet Housing Fastener (Qty:4) CAUTION: Refer to Fastener Caution .
2	Air Inlet Housing Assembly Procedure Transfer all part as necessary.

Call out

Component Name

Preliminary Procedures

Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation .
Disconnect the electrical connectors as necessary.

Air Inlet Housing Fastener (Qty:4)

CAUTION:

Air Inlet Housing Assembly
Procedure
Transfer all part as necessary.
