Inside Air Moisture and Windshield Temperature Sensor Replacement (ASV UFL)

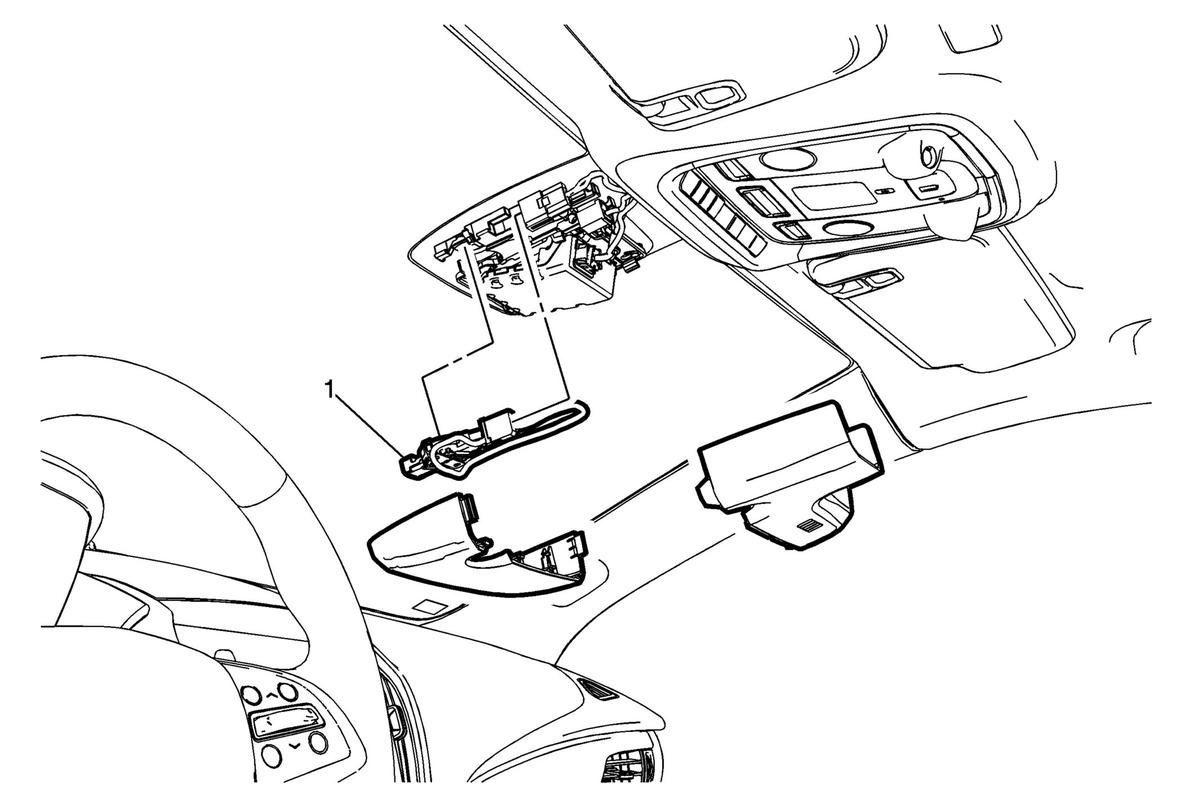

Fig 1: Inside Air Moisture and Windshield Temperature Sensor (ASV UFL)
GM3283258Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
1 Inside Air Moisture and Windshield Temperature Sensor

Procedures

  1. Unlatch the inside air moisture and windshield temperature sensor, from the inside rear view mirror support bracket.
  2. Disconnect the inside air moisture and windshield temperature sensor connector.
