Inside Rearview Mirror Replacement

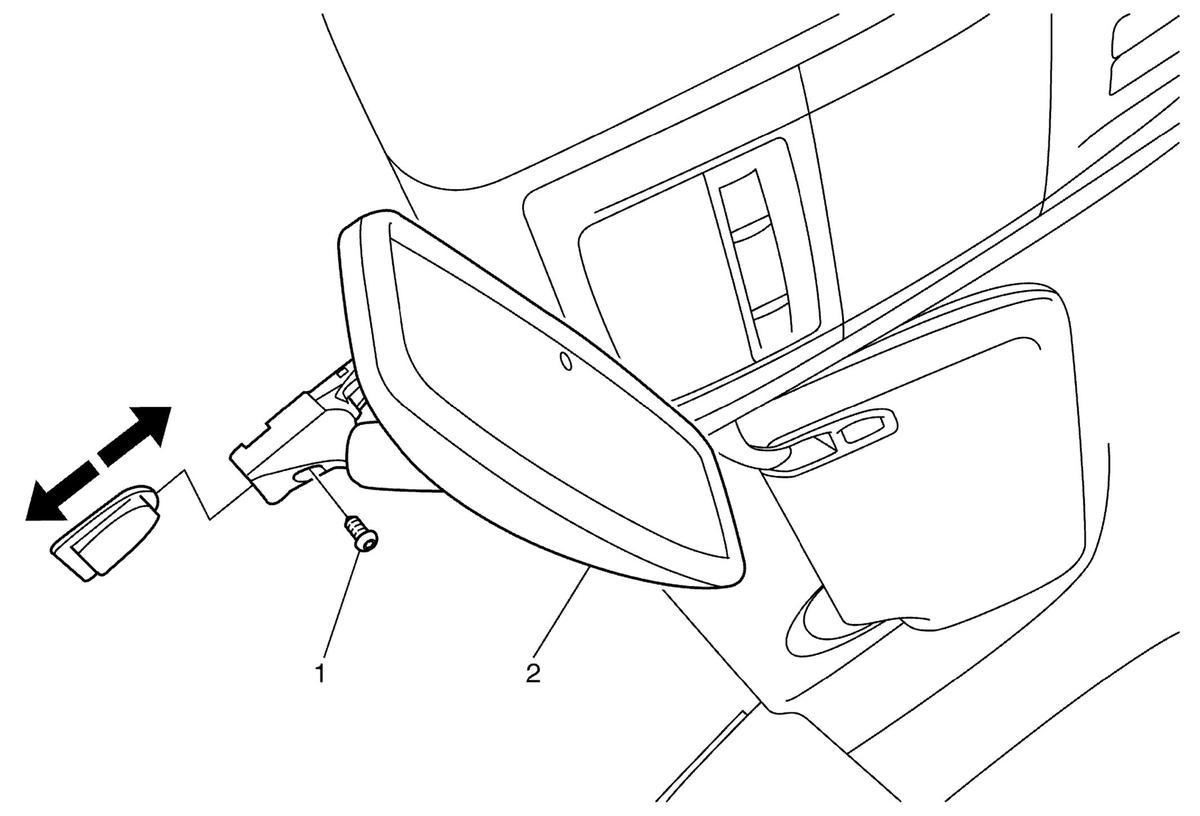

Fig 1: Inside Rearview Mirror & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .
1	Inside Rearview Mirror Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror Procedure Disconnect the electrical connector. With both hands on the mirror, rock it from side to side while sliding upward, this will assist in the releasing of the mirror from the mounting tab.

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .

Inside Rearview Mirror Fastener

CAUTION:

Tighten
2 N.m (18 lb in)

Inside Rearview Mirror

Procedure

Disconnect the electrical connector.
With both hands on the mirror, rock it from side to side while sliding upward, this will assist in the releasing of the mirror from the mounting tab.
