Heater and Air Conditioning Remote Control Replacement

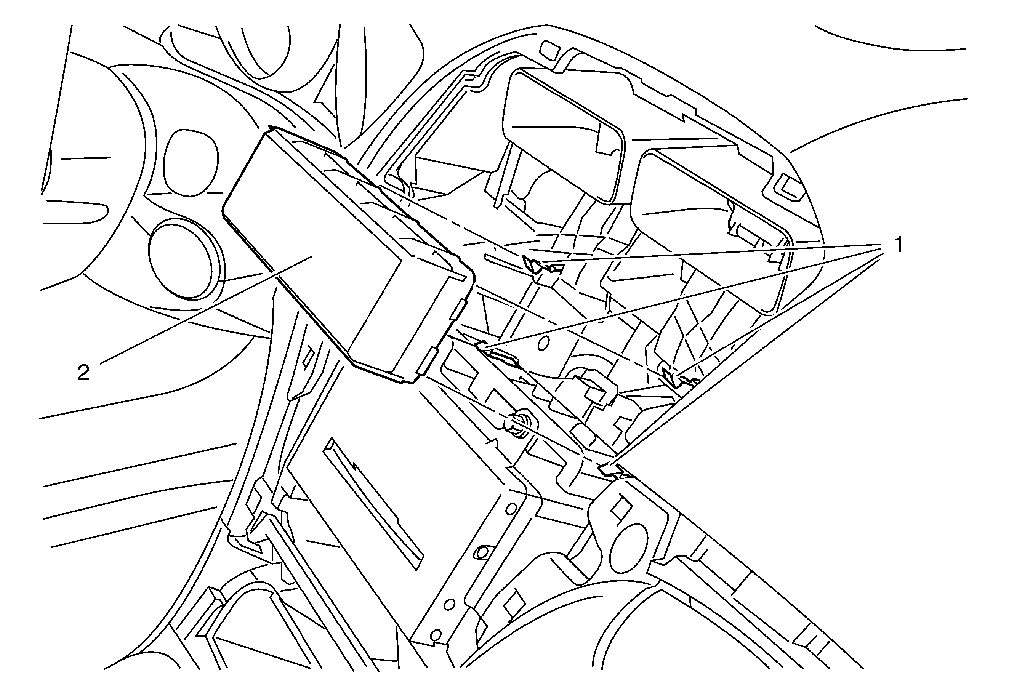

Fig 1: Heater And Air Conditioning Remote Control
GM2020279Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
  2. Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1 Heater and Air Conditioning Remote Control Retainer (Qty:4)

Procedure

  1. Release the heater and air conditioning remote control from the instrument panel.
  2. Disconnect the electrical connections.
2 Heater and Air Conditioning Remote Control
Procedure
For programming and set up information, refer to Control Module References .
