Heater and Air Conditioning Control Replacement

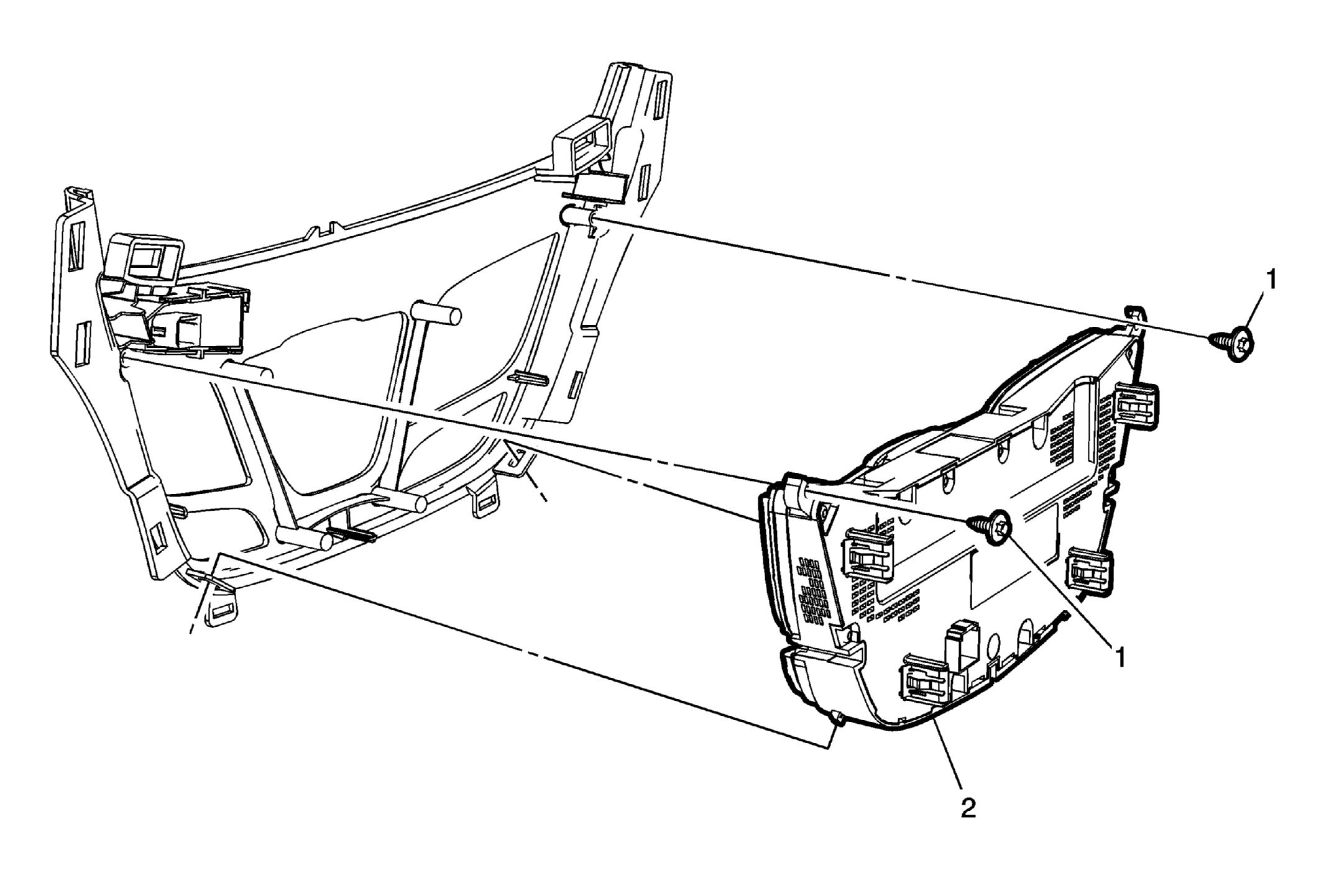

Fig 1: Heater and Air Conditioning Control
GM3422053Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
1 Heater And Air Conditioning Control Fastener (Qty:2)
CAUTION:

Refer to Fastener Caution .
2 Heater And Air Conditioning Control

Procedures

  1. Disconnect the heater and air conditioning control connectors.
  2. Perform the actuator re-calibration procedure.

    Refer to Actuator Recalibration (C67) .
