Instrument Panel Accessory Trim Plate Replacement

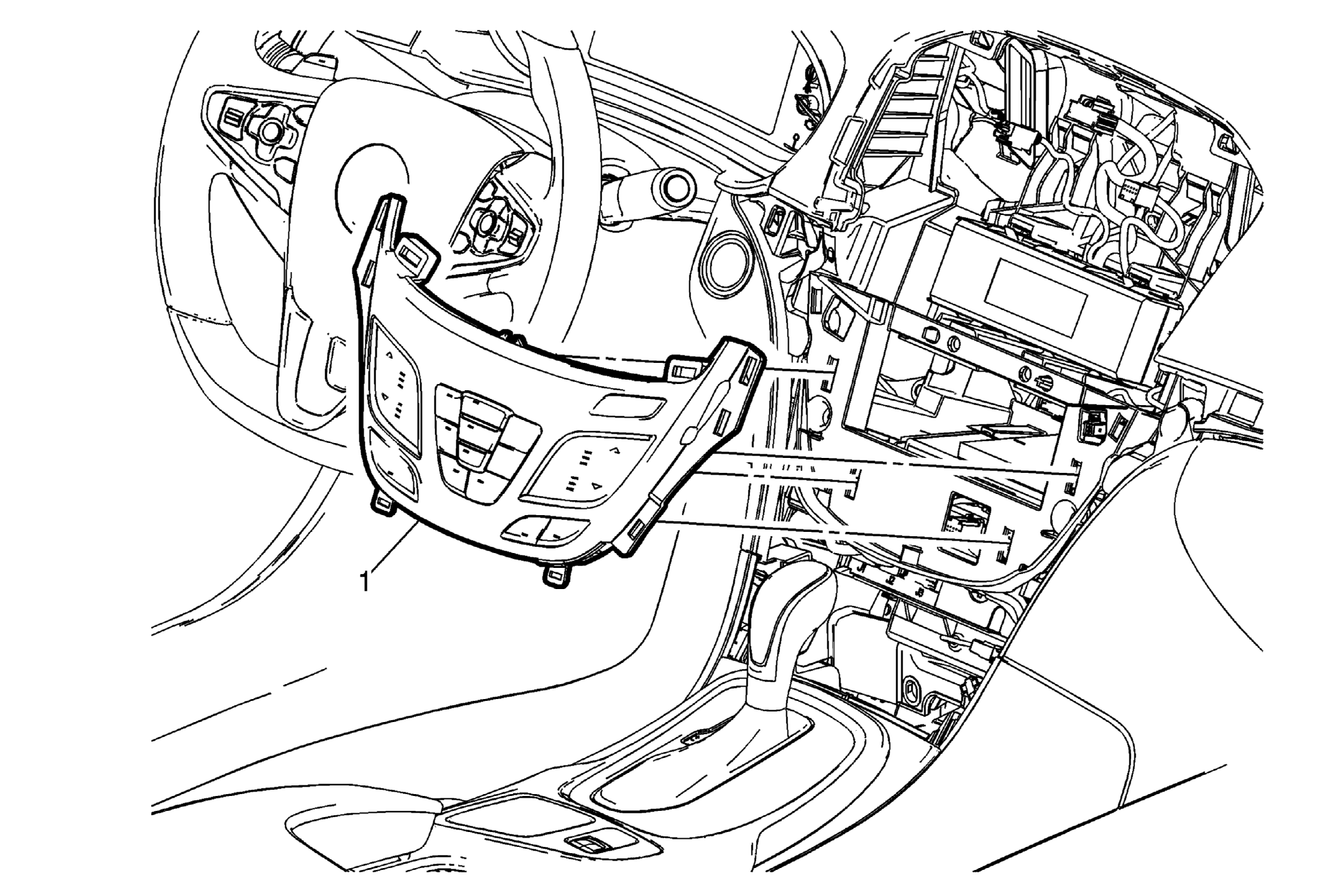

Fig 1: Instrument Panel Accessory Trim Plate
GM3407082Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
  2. Remove the driver and passenger side instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement (Passenger Side) .
1 Instrument Panel Accessory Trim Plate

Procedures

  1. Disconnect the electrical connections.
  2. When replacing the instrument panel accessory trim plate, transfer all necessary components,
