Air Inlet Valve Actuator Replacement (Left Hand Drive)

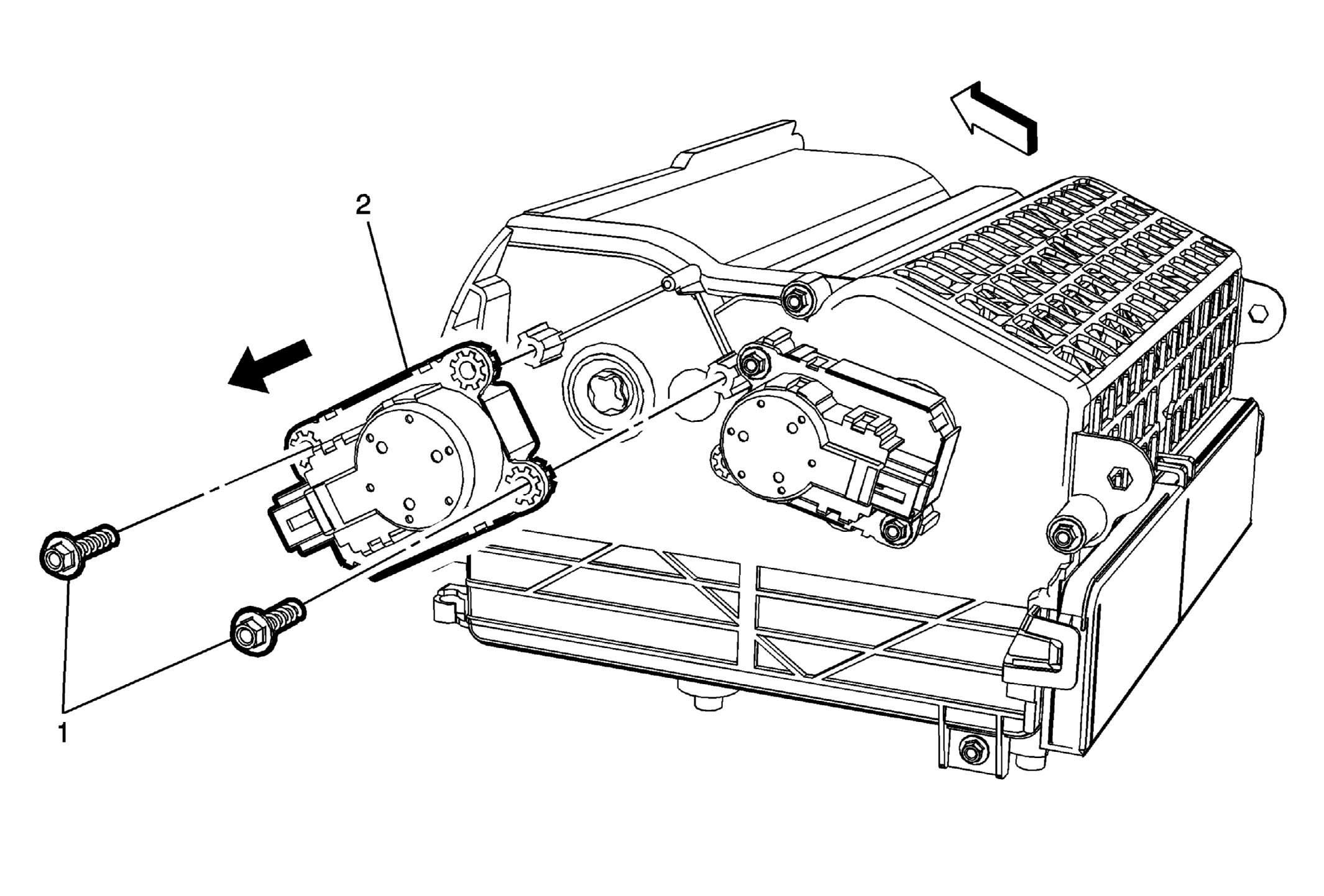

Fig 1: Air Inlet Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) . Remove the air inlet housing assembly. Refer to Air Inlet Housing Replacement .
1	Air Inlet Valve Actuator Fastener (Qty:2) CAUTION: Refer to Fastener Caution .
2	Air Inlet Valve Actuator Procedure Disconnect the air inlet valve actuator electrical connector. NOTE: The actuator is self-calibrating when connecting the battery.

Call out

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
Remove the air inlet housing assembly. Refer to Air Inlet Housing Replacement .

Air Inlet Valve Actuator Fastener (Qty:2)

CAUTION:

Air Inlet Valve Actuator
Procedure
Disconnect the air inlet valve actuator electrical connector.

NOTE:

The actuator is self-calibrating when connecting the battery.
