Installation Procedure

WARNING: This page is about a different variant/trim than selected.

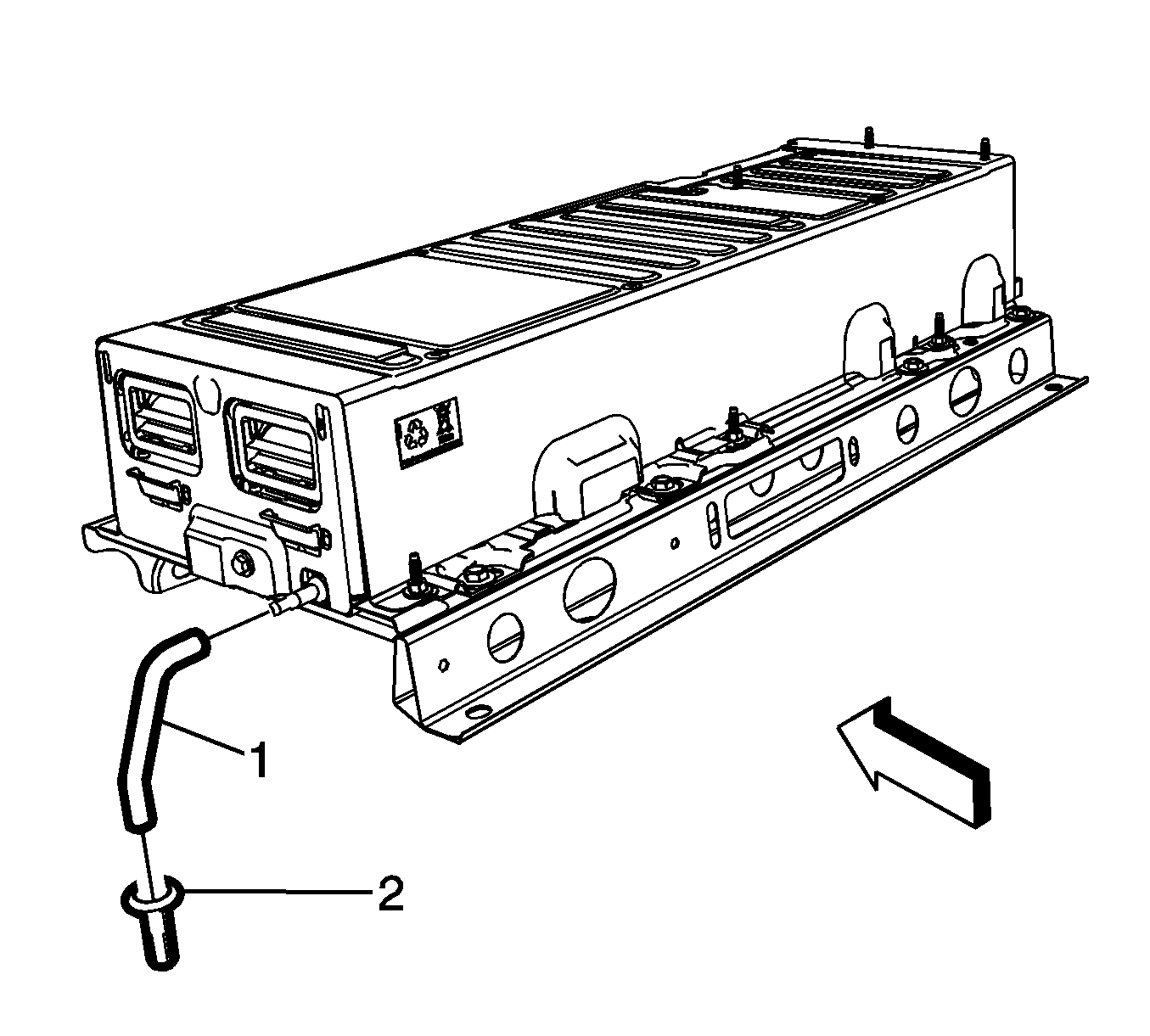

Fig 1: Battery Vent Tube

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not bend or disfigure the battery vent tube.

NOTE:

Battery vent tube and rear compartment grommet are replaced as an assembly.

Install the battery vent tube (1) with the rear compartment grommet (2).
Install the rear compartment floor panel with battery cover. Refer to Rear Compartment Floor Panel Trim Replacement (With Battery Cover, HP6) .
