Transmission Mount Replacement - Left Side
WARNING: This page is about a different variant/trim than selected.

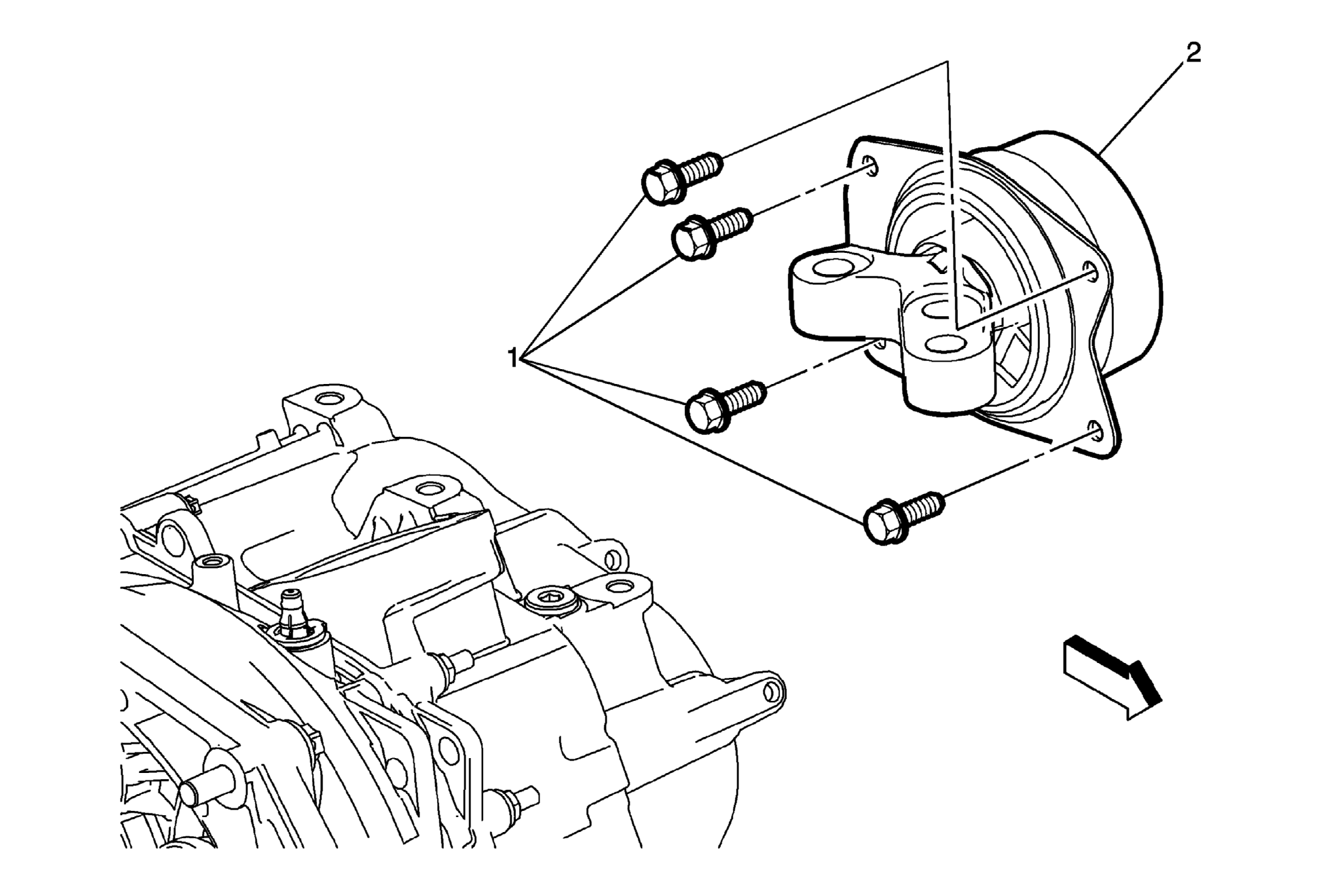

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the transmission mount bracket. Refer to Transmission Mount Bracket Replacement - Left Side .Refer to Safety Glasses Warning . |
|
| 1 | Transmission Mount Fastener (Qty:4)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Transmission Mount |
