Transmission Fluid Drain and Fill

WARNING: This page is about a different variant/trim than selected.

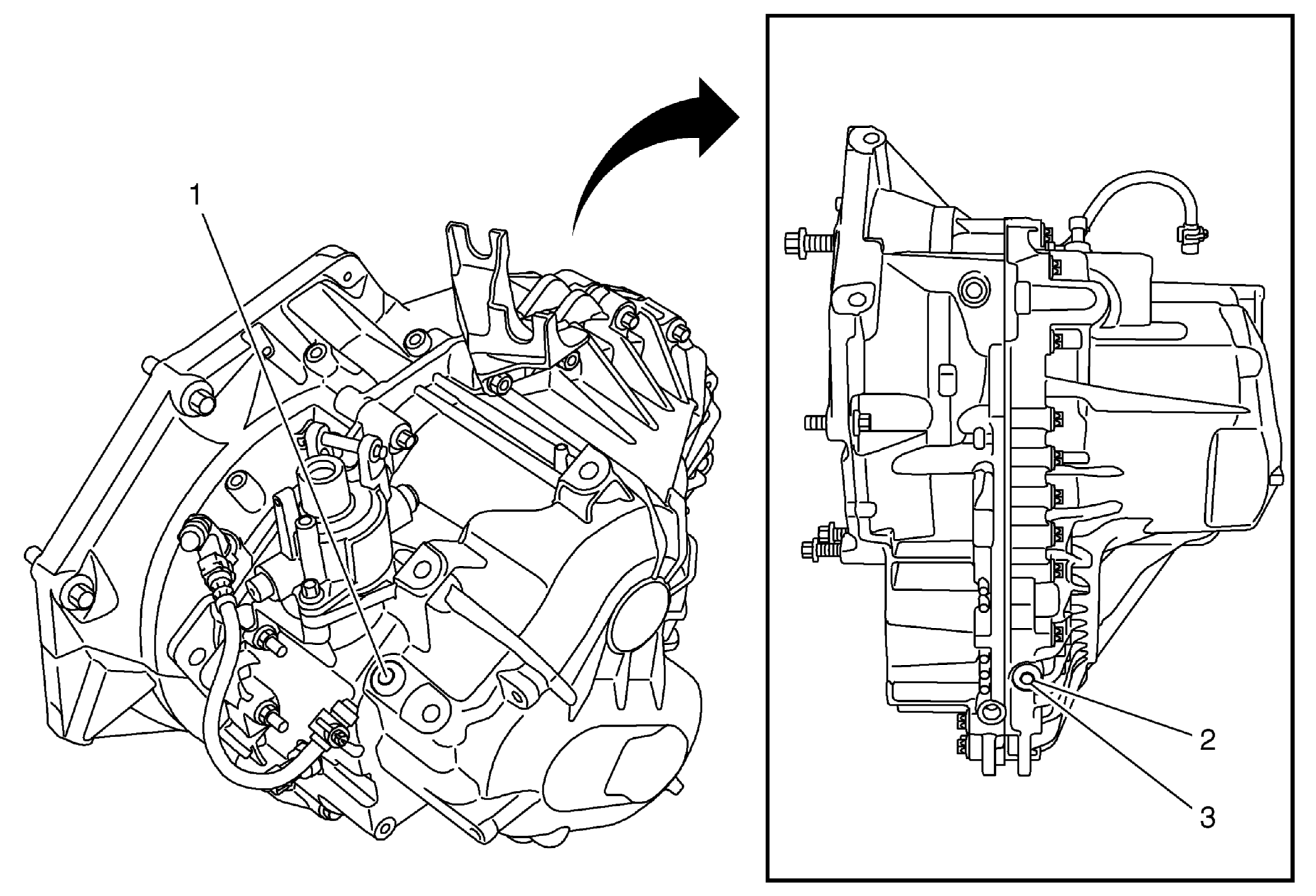

Fig 1: Transmission Fluid Drain and Fill Components
GM2018702Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the battery tray. Refer to Battery Tray Replacement .
1 Transmission Filler Plug
CAUTION:

Refer to Fastener Caution .

NOTE:

A NEW filler plug must be installed.


Tighten
30 N.m (22 lb ft)
2 Transmission Drain Plug
WARNING:

When the transmission is at operating temperatures, take necessary precautions when removing the check/fill plug, to avoid being burned by draining fluid.

Procedure

  1. Place pan under transmission to collect fluid.
  2. Allow transmission fluid to drain out for approximately 10 minutes.
NOTE:

A NEW drain plug must be installed.


Tighten
30 N.m (22 lb ft)
3 Transmission Fluid

Procedure

  1. Fill up with 1.7 liters (1.8 quarts) of transmission fluid (0.1 liter remains in the transmission from the drain).
  2. If a new transmission is installed, the total capacity fill is 1.8 liters (1.9 quarts).
