Shift Control Housing Replacement

WARNING: This page is about a different variant/trim than selected.

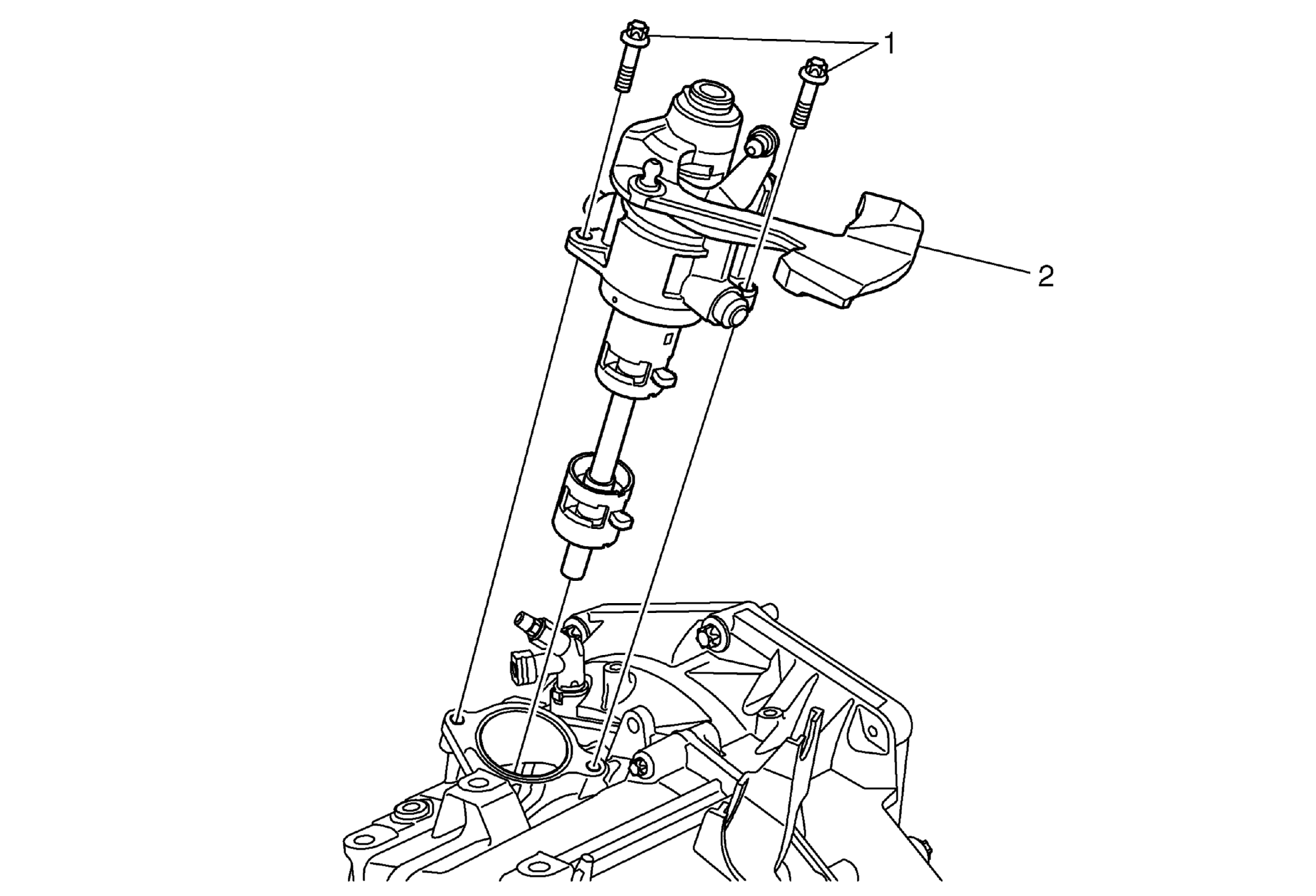

Fig 1: Shift Control Housing & Fasteners
GM2018975Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the battery and battery tray. Refer to Battery Tray Replacement .
  2. Remove the brake pressure modulator. Refer to Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement .
  3. Remove the manual transmission shift lever and selector lever cable from the shift control housing. Refer to Manual Transmission Shift Lever and Selector Lever Cable Replacement .
  4. Lock the transmission control housing with DT-527-A  adjuster or equivalent.
Special Tools DT-527-A  AdjusterFor equivalent regional tools, refer to Special Tools .
1 Shift Control Housing Fastener (Qty:2)
CAUTION:

Refer to Fastener Caution .


Tighten
26 N.m (19 lb ft)
2 Shift Control Housing

Procedure

  1. Detach the cables from the shift linkage lever.
  2. Remove the shift cables.
  3. Install a NEW seal.
  4. After installation, adjust the manual transmission shift lever cable. Refer to Manual Transmission Shift Lever and Selector Lever Cable Adjustment .
NOTE:

Shift transmission into NEUTRAL.
