Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Selector Lever Cable, Adjust Locks And Transmission Control Lever Housing
    GM2191406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not lock yet.

  1. Slide the shift lever and selector lever cable into the shift lever and selector lever cable adjust locks (2).
  2. Clip the shift lever and selector lever cable (3) into the transmission control lever housing (1).
  3. Install shift lever and selector lever cable from inside the vehicle.

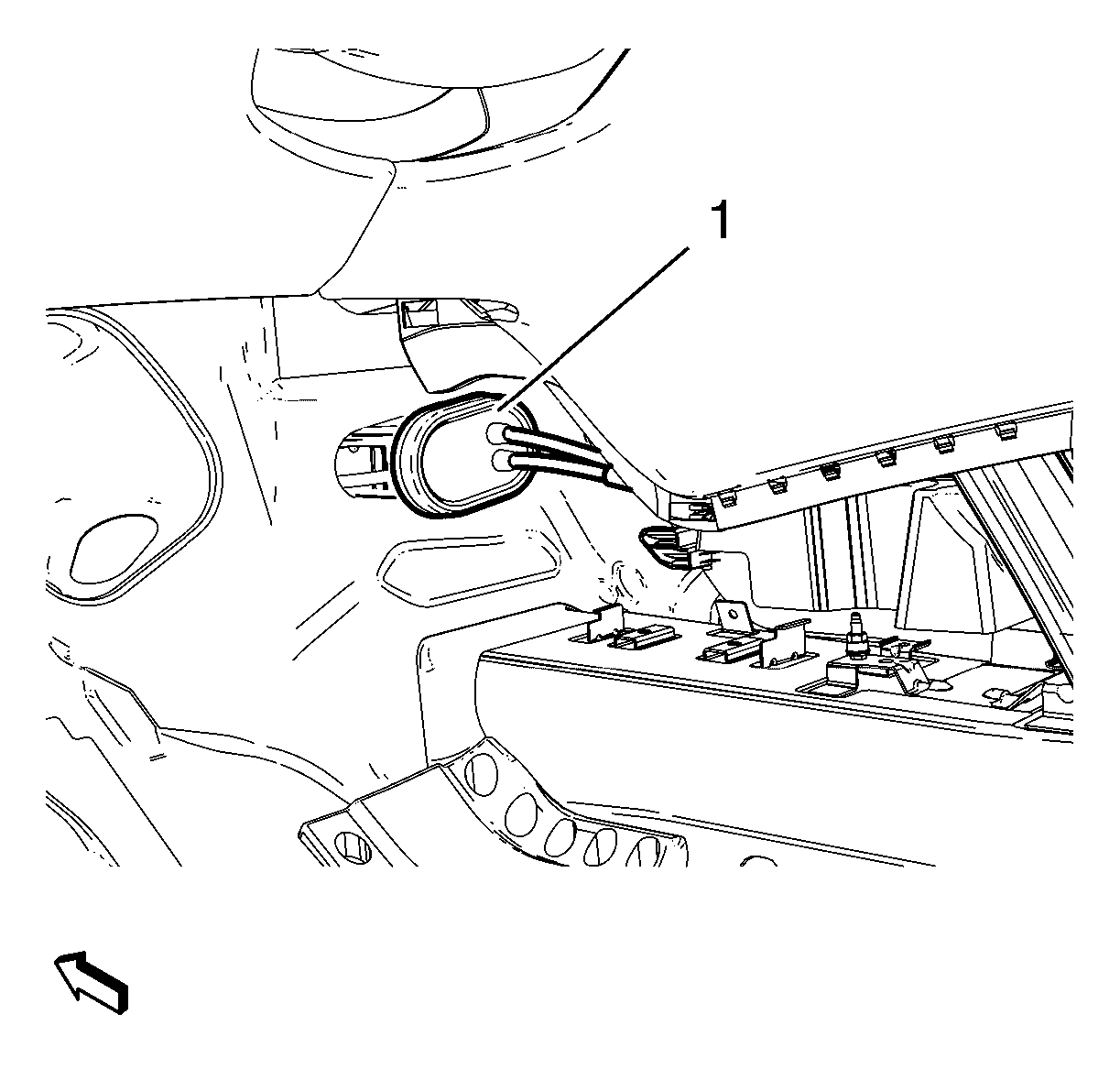

    4. Fig 2: Selector Lever Cable
    GM2191408Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install the guide with the white marking upwards to the bulkhead. Do not cross the cables.

  4. Install the shift lever and selector lever cable grommet (1) to the bulkhead.
  5. Check for correct fit.

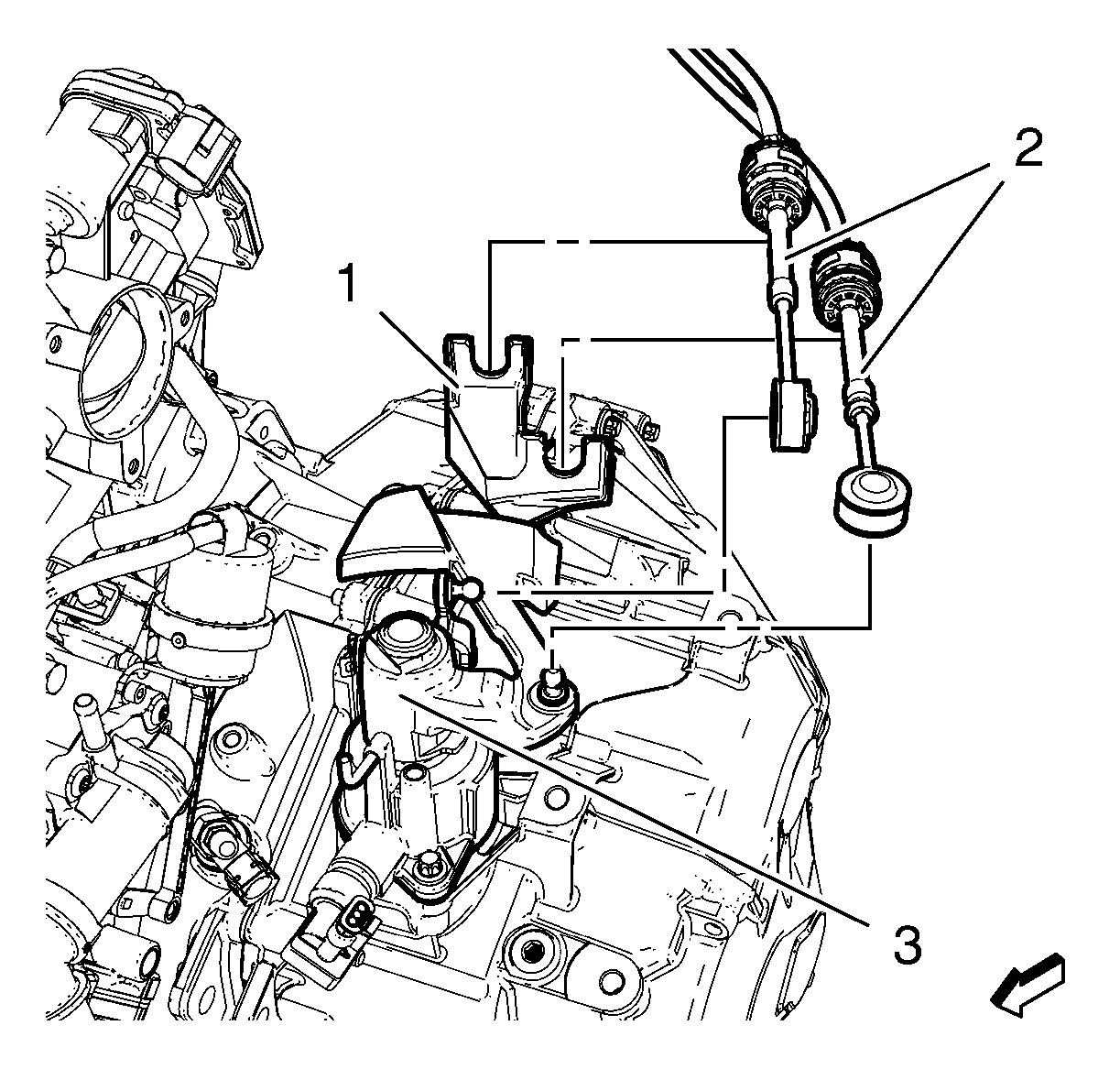

    6. Fig 3: Shift Lever And Selector Lever Cable
    GM2191414Courtesy of GENERAL MOTORS COMPANY
  6. Install the shift lever and selector lever cable (2) to the shift lever and selector lever cable bracket (1).
  7. Install the shift lever and selector lever cable to the transmission control housing (3).
  8. Install the battery tray. Refer to Battery Tray Replacement .
  9. Adjust the shift lever and selector lever cable. Refer to Manual Transmission Shift Lever and Selector Lever Cable Adjustment .
  10. Install the front floor console. Refer to Front Floor Console Replacement .
