Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Selector Lever Cable, Adjust Locks And Transmission Control Lever Housing
    GM2191406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not lock yet.

  1. Slide shift lever and selector lever cable into shift lever and selector lever cable adjust locks (2).
  2. Clip shift lever and selector lever cable (3) into transmission control lever housing (1).
  3. Install shift lever and selector lever cable from inside the vehicle.

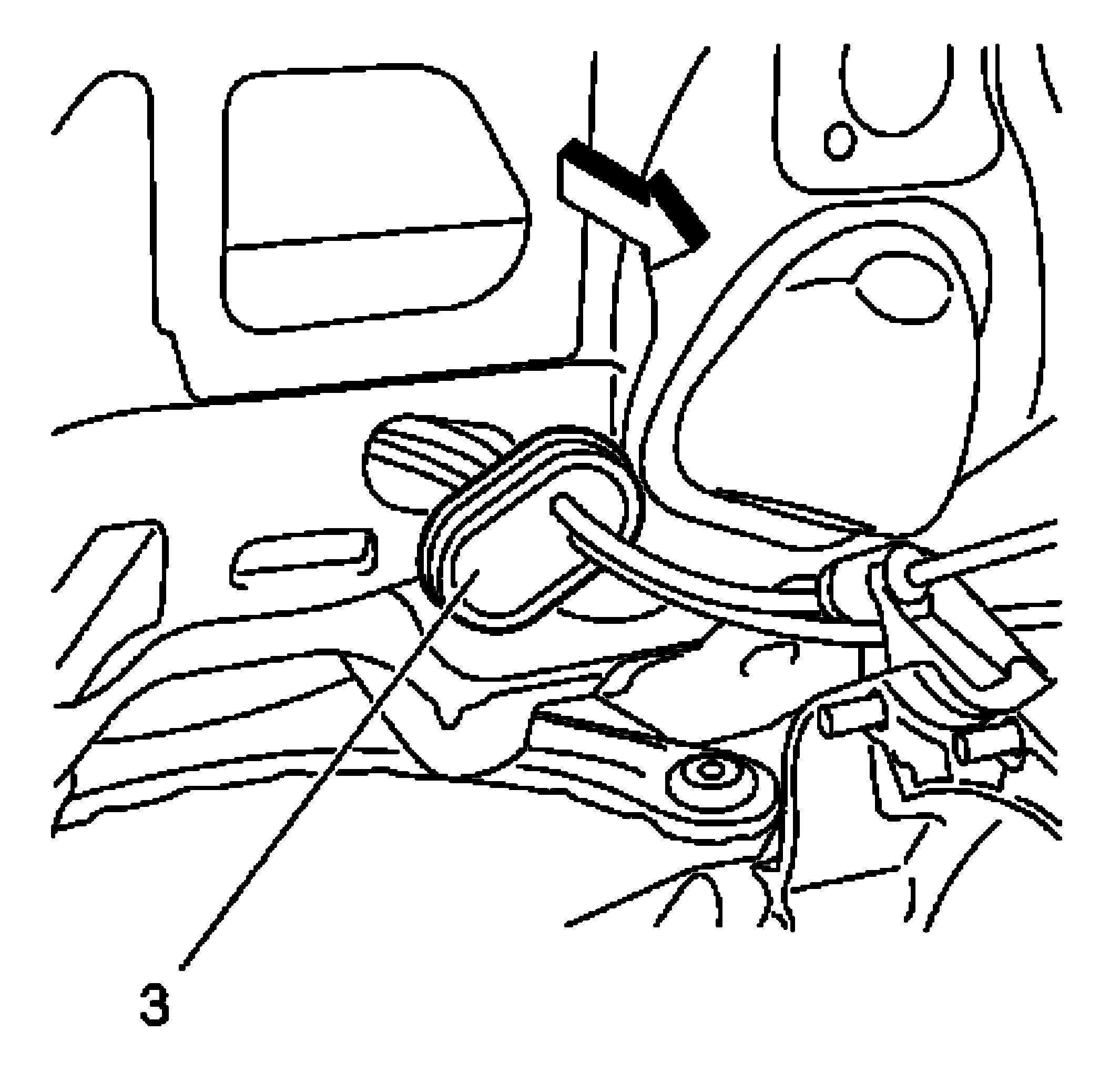

    4. Fig 2: Shift Lever And Selector Lever Cable
    GM2020420Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install the guide with the white marking upwards to the bulkhead. Do not cross the cables.

  4. Install shift lever and selector lever cable (3) to bulkhead.
  5. Check for correct fit.
    6. Fig 3: Selector Lever Cable, Bracket And Transmission Control Housing
    GM2191413Courtesy of GENERAL MOTORS COMPANY
  6. Install shift lever and selector lever cable (2) to shift lever and selector lever cable bracket (1).
  7. Install shift lever and selector lever cable to transmission control housing (3).
  8. Install the battery tray. Refer to Battery Tray Replacement .
  9. Adjust shift lever and selector lever cable. Refer to Manual Transmission Shift Lever Cable Adjustment .
  10. Install the front floor console. Refer to Front Floor Console Replacement .
