Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise the transmission with the transmission jack and position the transmission to the engine.

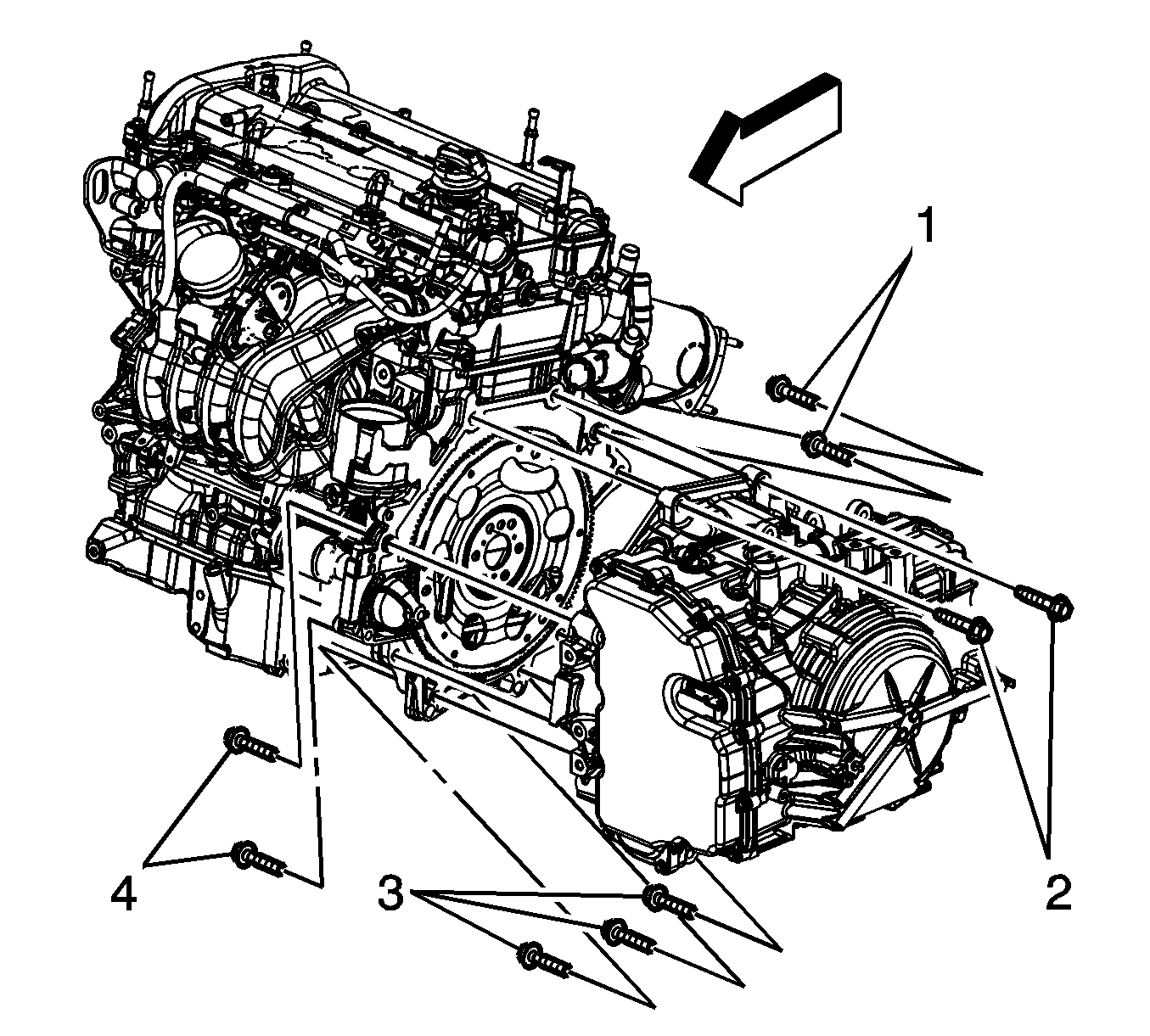

- Install the transmission bolts (1,3,4) and tighten to 75 N.m (55 lb ft).
- Remove the transmission jack.
- Install the torque converter to flywheel bolts (1) and tighten to 62 N.m (46 lb ft).
- Install the starter. Refer to Starter Replacement (LEA, LUK) .
- Install the front transmission mount to the transmission. Refer to Transmission Front Mount Replacement .
- Install the rear transmission mount to the transmission. Refer to Transmission Rear Mount Replacement .
- Install the left transmission mount to the transmission. Refer to Transmission Mount Replacement - Left Side .
- Install the intermediate drive shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement (with MR6) .
- Install the left wheel drive shaft to the transmission. Refer to Front Wheel Drive Shaft Replacement (GNB/GNA) .
- Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement .
- Install the upper transmission to engine bolt (2) and tighten to 75 N.m (55 lb ft).
- Remove the engine support fixture.
- Install the transmission fluid cooler outlet hose (5) to the transmission.
- Install the transmission fluid cooler pipe retainer nut (4) and tighten to 22 N.m (16 lb ft).
- Install the transmission fluid cooler inlet hose (1) to the transmission.
- Install the transmission fluid cooler pipe retainer nut (3) and tighten to 22 N.m (16 lb ft).
- Connect the control valve body TCM electrical connector (1).
- Connect the control valve body TCM electrical connector (1).
- Install the transmission range select lever cable and bracket on the transmission.
- Install the battery tray. Refer to Battery Tray Replacement .
- Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
- Fill the transmission with fluid. Refer to Transmission Fluid Drain and Fill .
- If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Refer to Service Programming System (SPS) Description .
- Transmission internal service/overhaul
- Valve body repair or replacement
- Control solenoid valve assembly replacement
- TCM software/calibration update
- Any service in response to a shift quality concern
- Perform the Transmission Adaptive Values Learn procedure. Refer to Transmission Adaptive Values Learn .
- Road test the vehicle.
CAUTION:
Refer to Fastener Caution .
NOTE:
If reusing the torque converter bolts, clean the threads and apply threadlocker to the threads prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers for the recommended threadlock material.
NOTE:
The Transmission Adaptive Values Learn procedure must be performed when one of the following repairs have been made to the vehicle. Failure to perform the procedure after one of the following repairs may result in poor transmission performance, as well as transmission DTCs being set:
