Secondary Air Injection Pipe Replacement (LEA)
WARNING: This page is about a different variant/trim than selected.

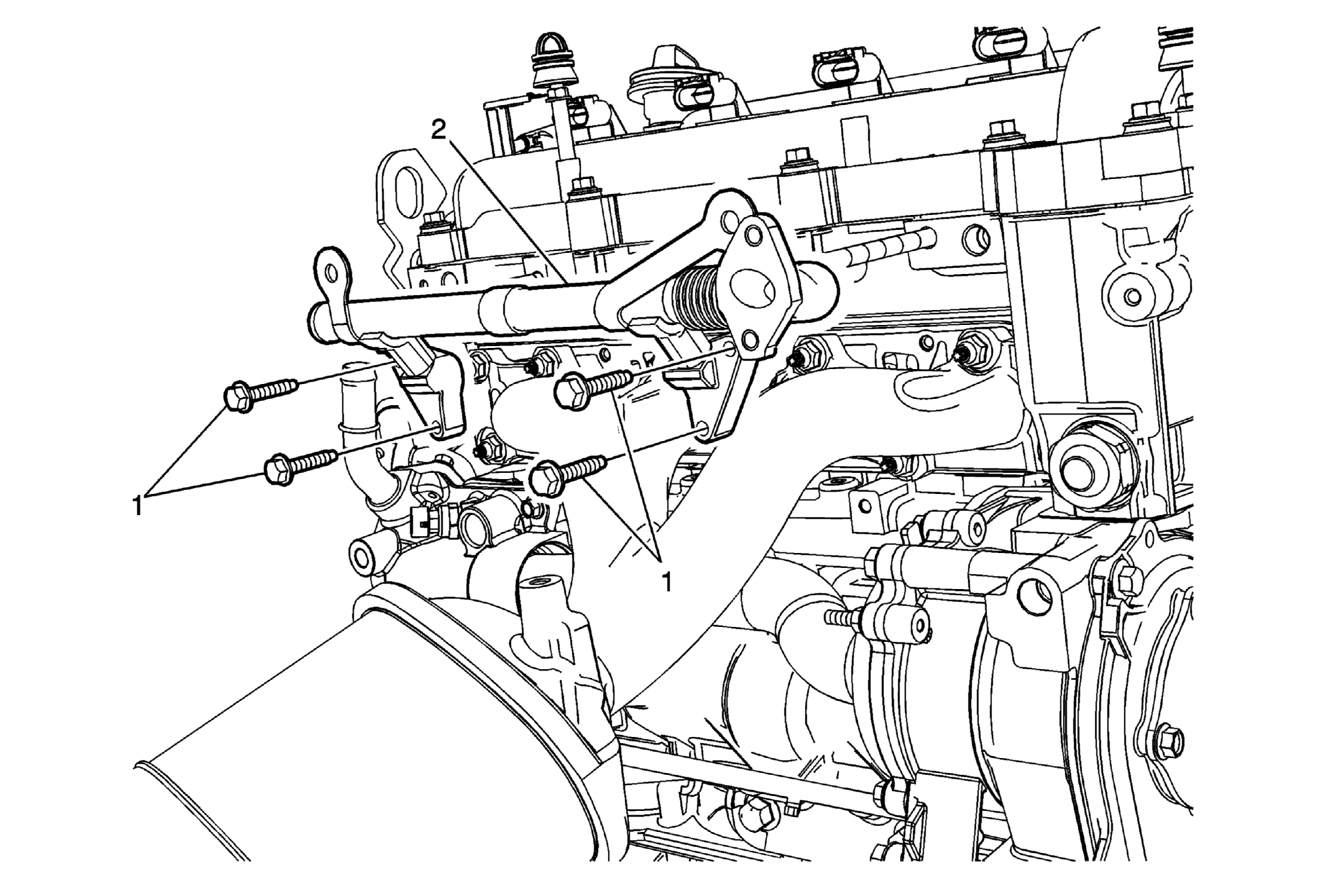

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the secondary air injection check valve. Refer to Secondary Air Injection Check Valve Replacement (LEA) |
|
| 1 | Secondary Air Injection Pipe Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in). |
| 2 | Secondary Air Injection Pipe |
