Secondary Air Injection Check Valve Replacement (LEA)
WARNING: This page is about a different variant/trim than selected.

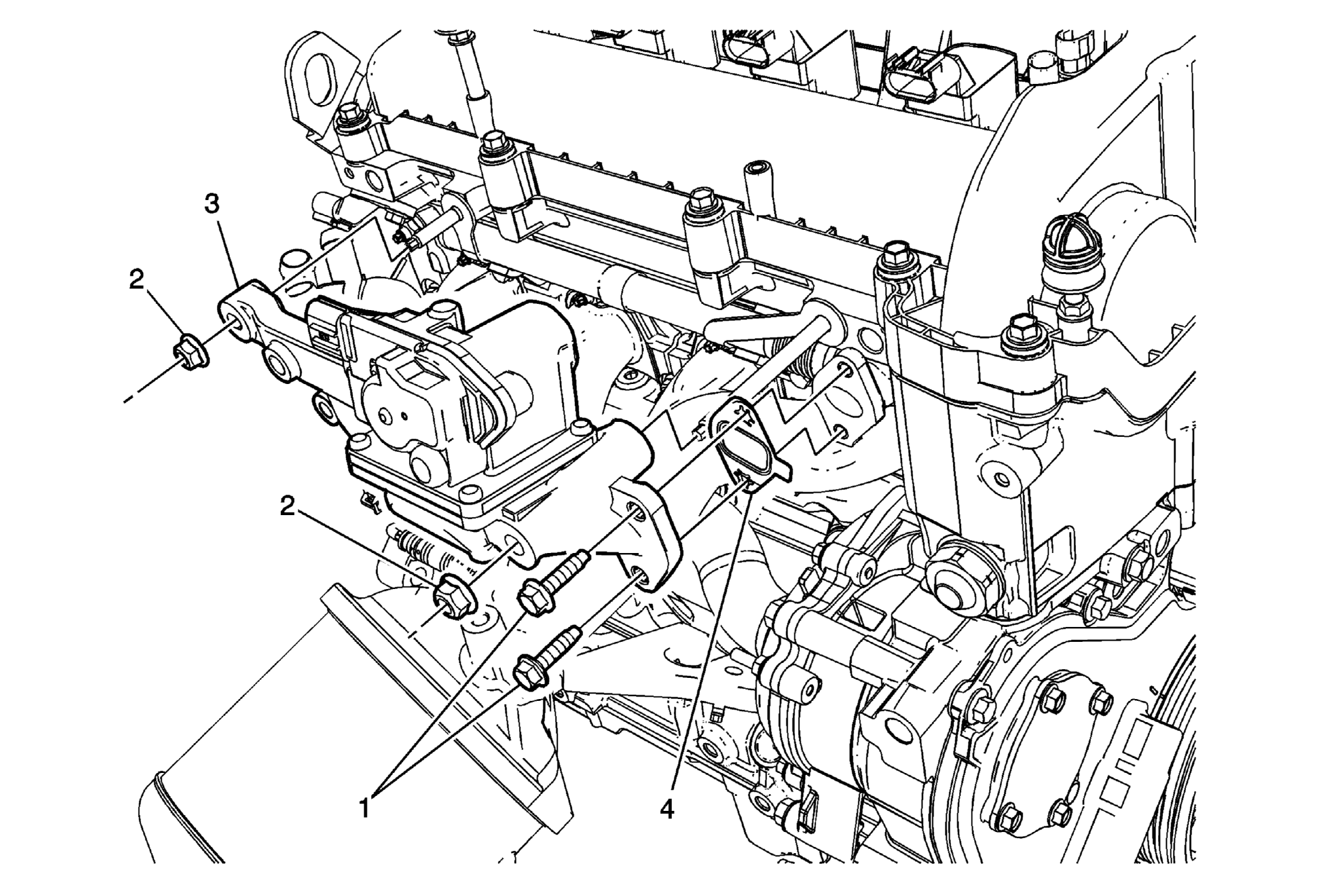

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LUK) . |
|
| 1 | Secondary Air Injection Check Valve Bolt (Qty:2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Secondary Air Injection Check Valve Nut (Qty:2) Tighten 25 N.m (18 lb ft) |
| 3 | Secondary Air Injection Check Valve Procedure Disconnect the electrical connector. |
| 4 | Secondary Air Injection Check Valve Gasket |
