Exhaust Manifold Heat Shield Replacement (LEA or LUK)

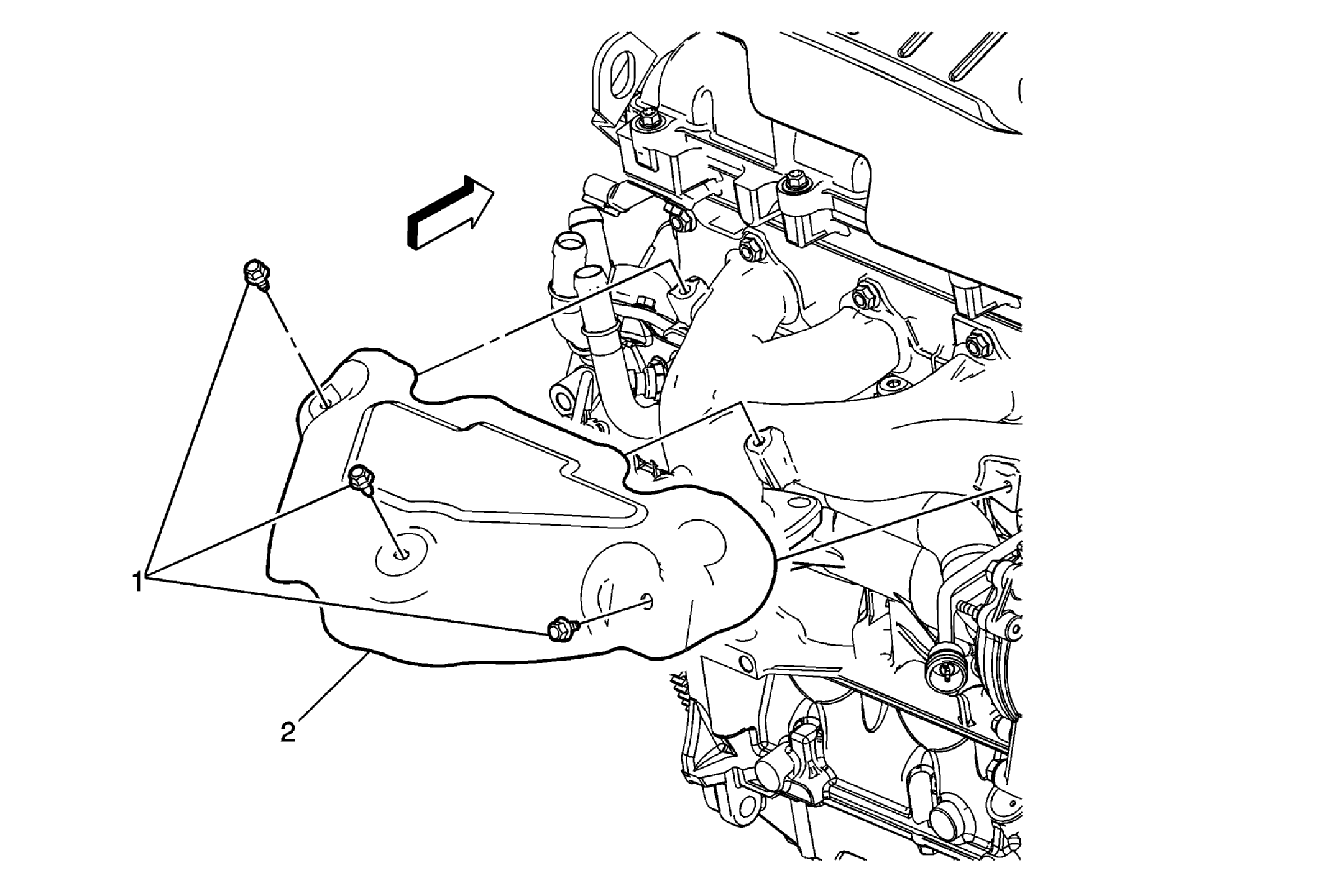

Fig 1: View Of Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Exhaust Manifold Heat Shield Bolt (Qty:3) WARNING: Refer to Hot Exhaust System Warning . CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Exhaust Manifold Heat Shield
