Fuel Feed Intermediate Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

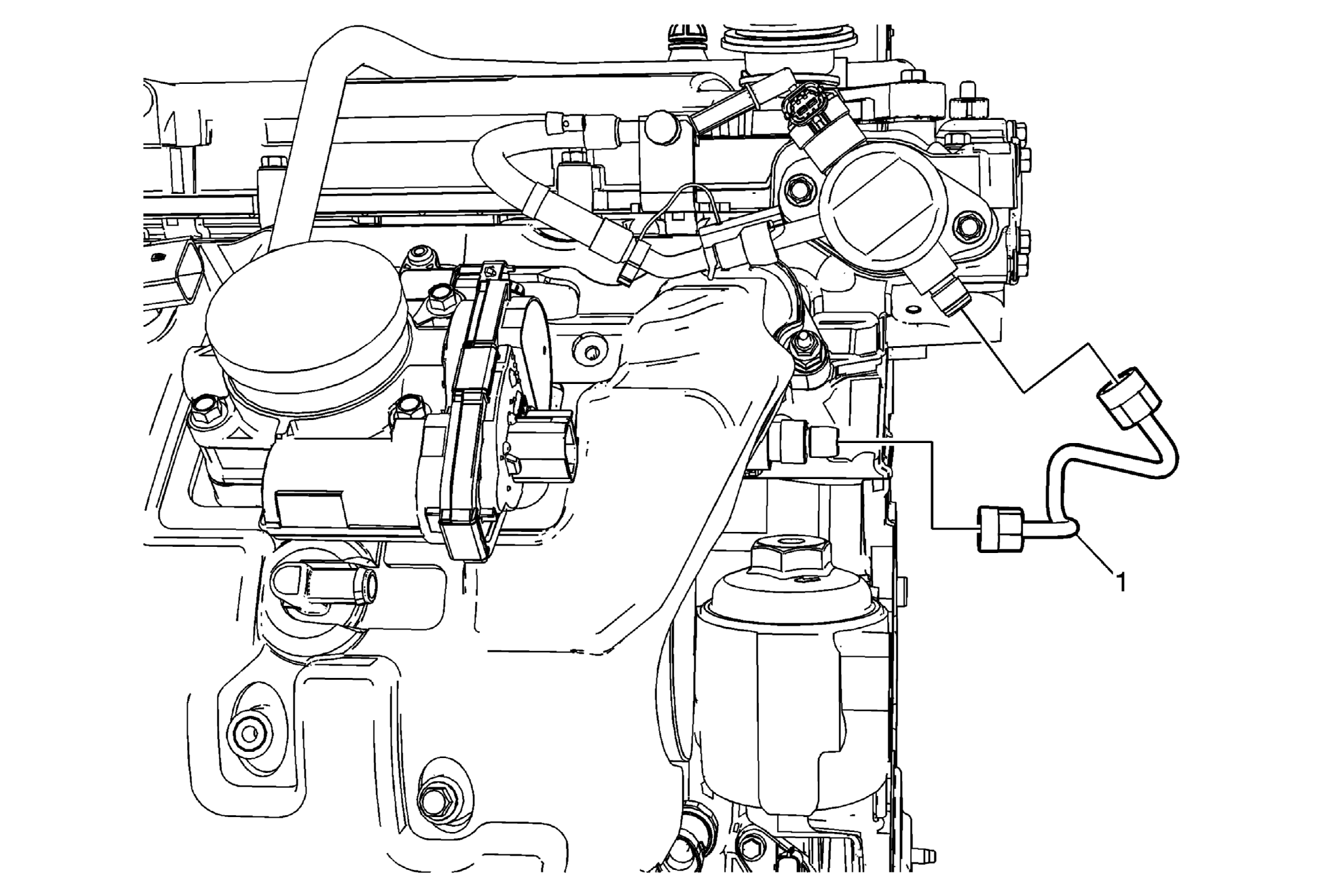

Fig 1: Fuel Feed Intermediate Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Relieve the system pressure. Refer to Fuel Pressure Relief (High Side) . Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement .
1	Fuel Feed Intermediate Pipe CAUTION: Refer to Fastener Caution . Procedure DISCARD the pipe when removed, and install a NEW pipe. Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers . Pressurize the fuel system and inspect for leaks. Tighten 30 N.m (22 lb ft) NOTE: The pipe fittings are a one time use, always install a NEW fuel pump intermediate pipe.

Callout

Component Name

Preliminary Procedures

Fuel Feed Intermediate Pipe

CAUTION:

Procedure

DISCARD the pipe when removed, and install a NEW pipe.
Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Pressurize the fuel system and inspect for leaks.

Tighten
30 N.m (22 lb ft)

NOTE:

The pipe fittings are a one time use, always install a NEW fuel pump intermediate pipe.
