Radiator Surge Tank Replacement (LTG)

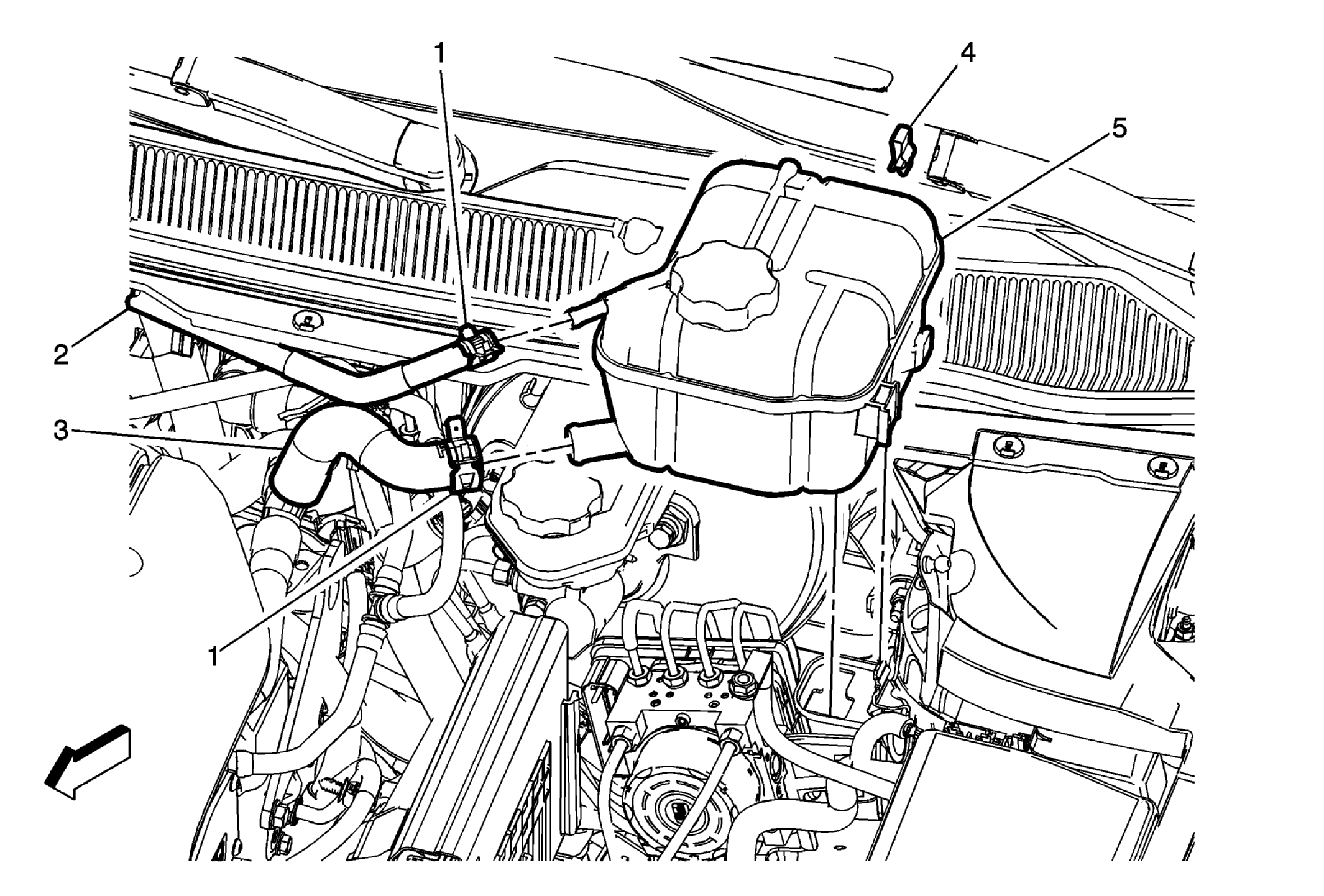

Fig 1: Radiator Surge Tank (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Radiator Surge Tank Hose Clamp (Qty:2) Procedure Reposition the radiator surge tank hose clamps using BO-38185 Hose Clamp Pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Inlet Hose
3	Heater Outlet Hose
4	Radiator Surge Tank Bracket Clip Procedure Lift the surge tank clip from the radiator surge tank and bracket.
5	Radiator Surge Tank Procedure Slide the radiator surge tank forward and lift out of the radiator surge tank bracket. After installation, fill the coolant reservoir to the proper level. Refer to Cooling System Draining and Filling (GE 47716) . Inspect cooling system for leaks.
