Installation Procedure

WARNING: This page is about a different variant/trim than selected.

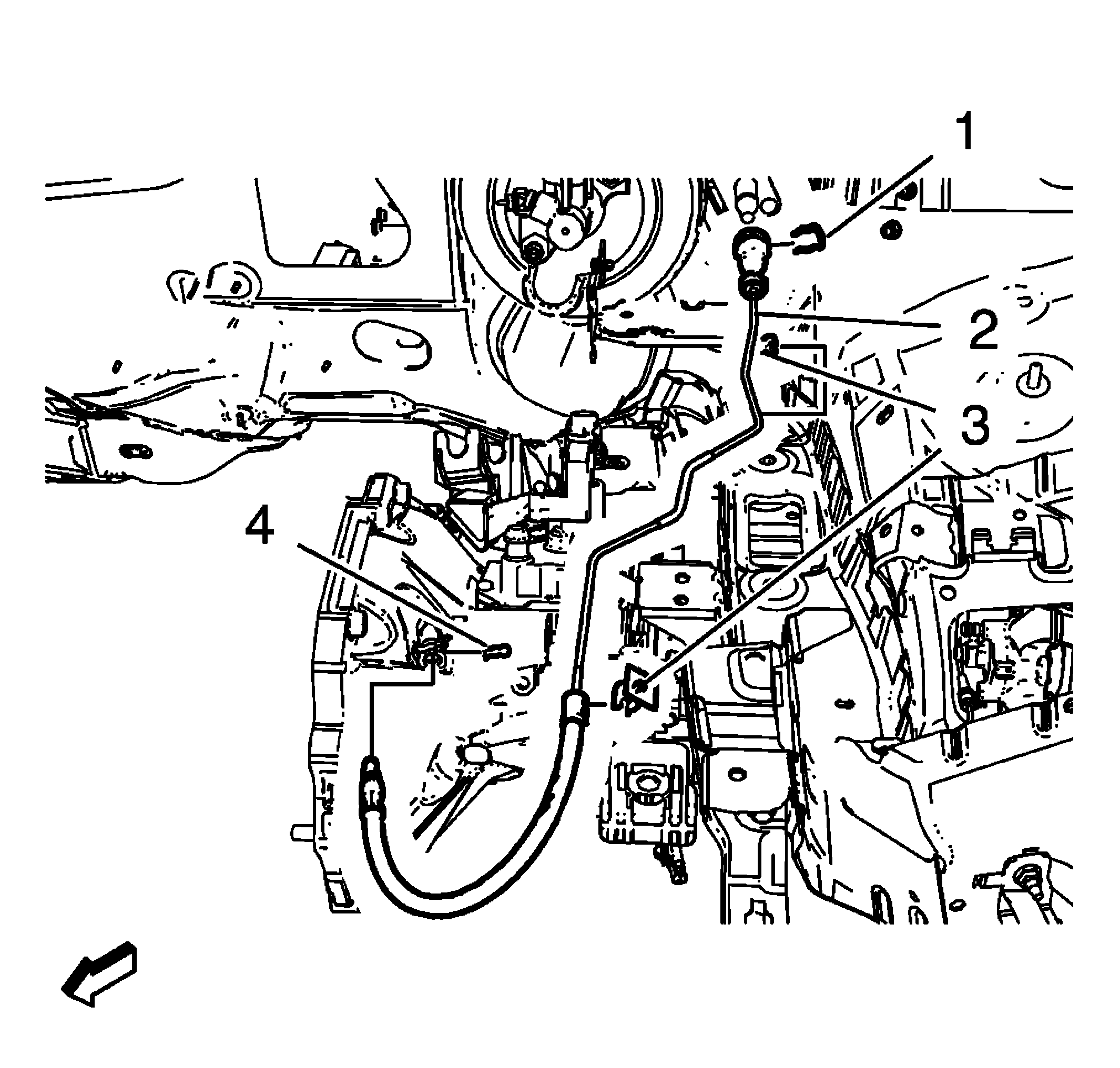

    Fig 1: Clutch Actuator Cylinder Front Pipe Retainers
    GM2028033Courtesy of GENERAL MOTORS COMPANY
  1. Install the clutch actuator cylinder front pipe (2).
  2. Install the clutch actuator cylinder front pipe to the retainer (3).
  3. Install the clutch actuator cylinder front pipe retainer (1, 4).
  4. Bleed the hydraulic clutch system.
  5. Fill the reservoir with clutch/brake fluid up to the MAX level.
    6. Fig 2: View Of Radiator Surge Tank And Radiator Surge Tank Clip
    GM2027873Courtesy of GENERAL MOTORS COMPANY
  6. Install the radiator surge tank (1).
  7. Install the radiator surge tank clip (2).
  8. Install the battery tray. Refer to Battery Tray Replacement .
