Radiator Side Mount Bracket Replacement - Left Side
WARNING: This page is about a different variant/trim than selected.

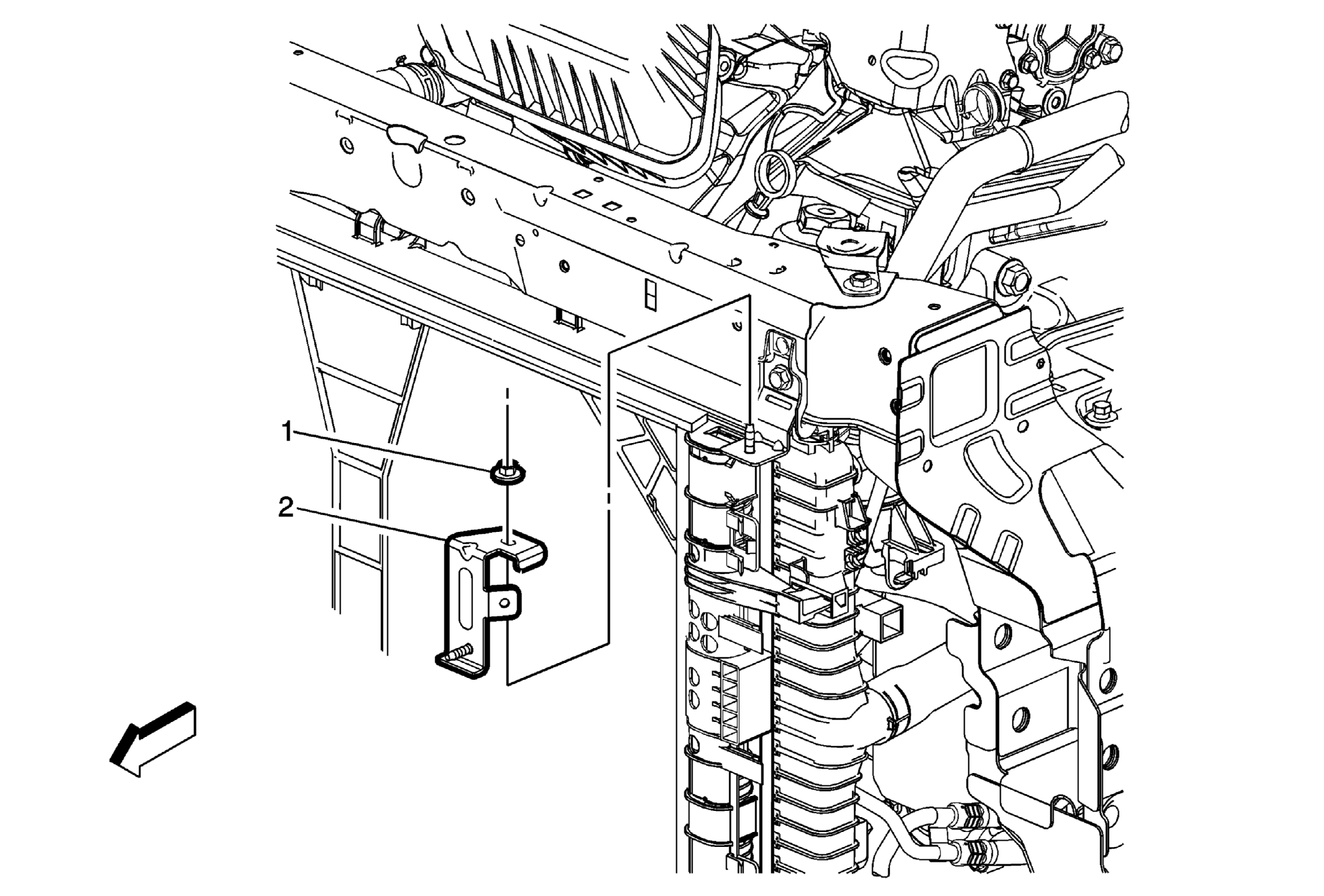

| Callout | Component Name |
|---|---|
| Preliminary Procedure Without disconnecting the cooler lines, remove the fasteners securing the auxiliary radiator to the brackets and reposition the auxiliary radiator out of the way. Refer to Auxiliary Radiator Replacement . |
|
| 1 | Radiator Side Mount Bracket-Left Side Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radiator Side Mount Bracket |
