Drive Motor Generator Battery Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

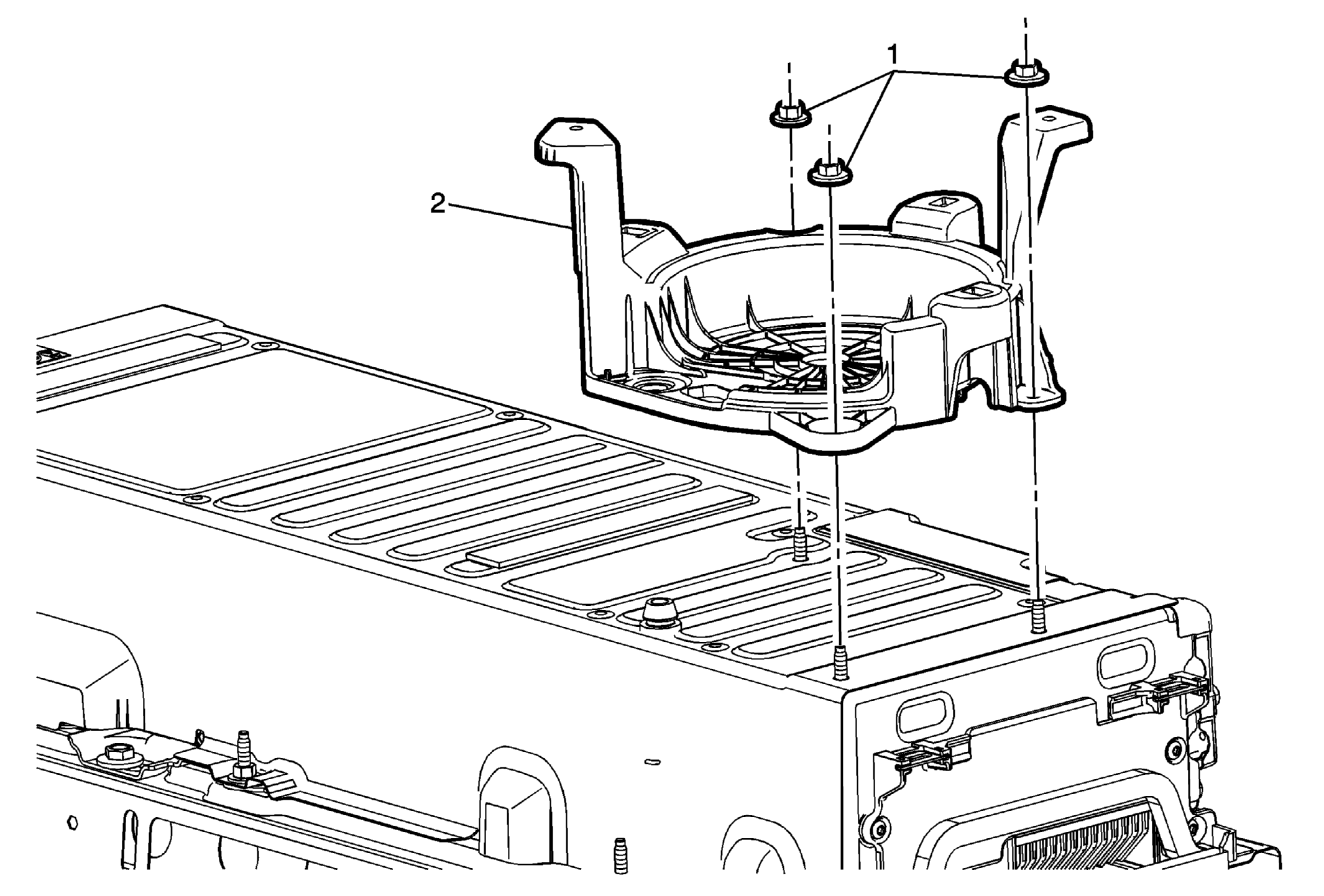

Fig 1: Drive Motor Generator Battery Cooling Blower Motor Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the Drive Motor Battery Cooling Blower. Refer to Drive Motor Battery Cooling Blower Replacement .
1	Drive Motor Generator Battery Bracket Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Drive Motor Generator Battery Bracket
