Rear Window Panel Stowage Compartment Cover Replacement (with HP6)

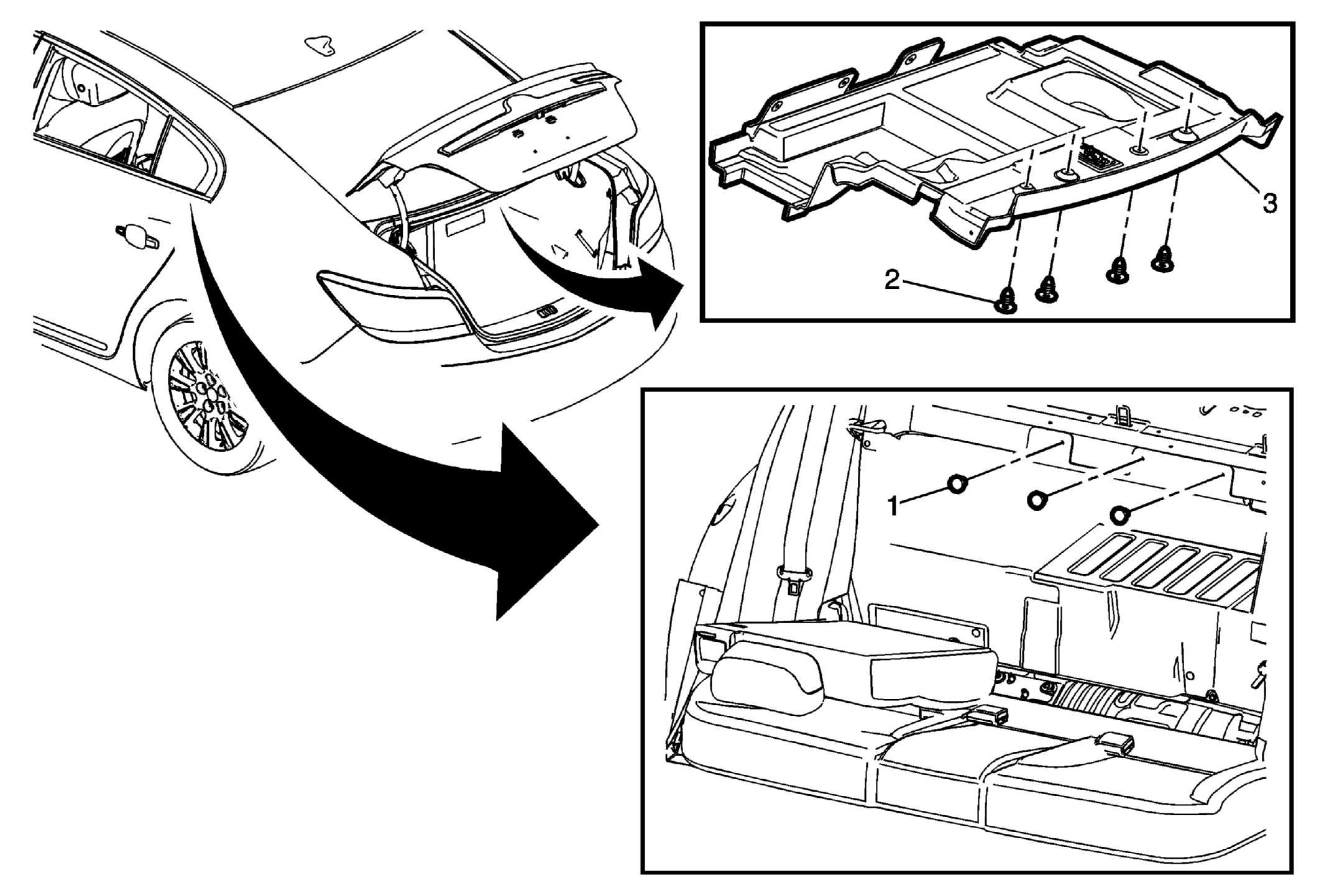

Fig 1: Rear Window Panel Stowage Compartment Cover (with HP6)
GM2592628Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with HP6) .
1 Rear Window Panel Stowage Compartment Cover Retainers (Qty:3)
Procedure
Use a trim removal tool to aid in the removal of the retainers.
2 Rear Window Panel Stowage Compartment Cover Retainers (Qty:4)

Procedures

  1. Open rear compartment lid to access retainers.
  2. Use a trim removal tool to aid in the removal of the retainers.
3 Rear Window Panel Stowage Compartment Cover
Procedure
Disconnect electrical connector.
