Drive Motor Battery Cooling Air Inlet Upper Duct Replacement

WARNING: This page is about a different variant/trim than selected.

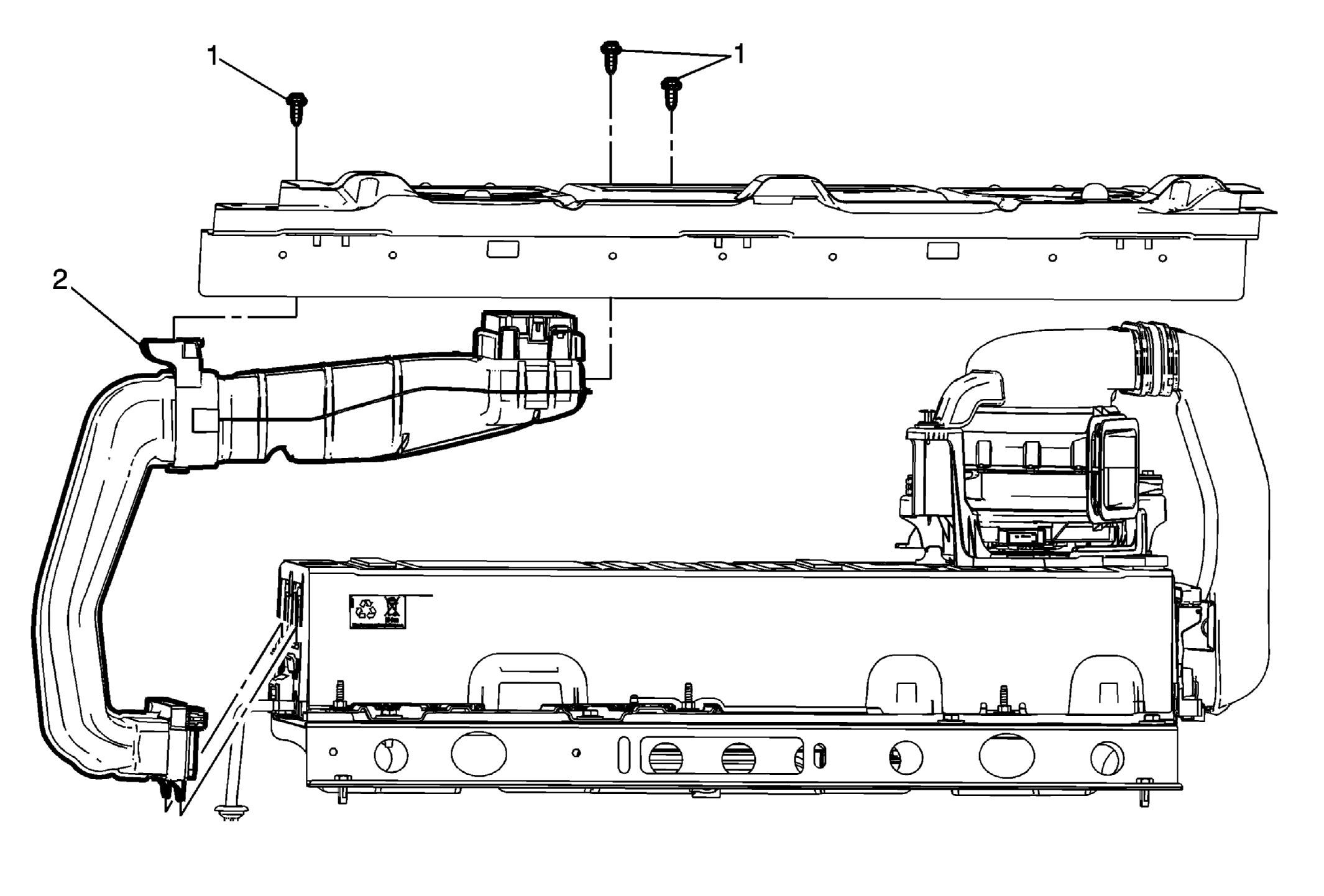

Fig 1: Drive Motor Battery Cooling Air Inlet Upper Duct & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove rear window panel storage compartment. Refer to Rear Window Panel Stowage Compartment Cover Replacement (with HP6) . Remove rear compartment side trim. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Right Side) .
1	Drive Motor Battery Cooling Air Inlet Upper Duct Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Drive Motor Battery Cooling Air Inlet Upper Duct

Callout

Component Name

Preliminary Procedures

Drive Motor Battery Cooling Air Inlet Upper Duct Fasteners (Qty: 3)

CAUTION:

Drive Motor Battery Cooling Air Inlet Upper Duct
