Drive Motor Battery Coolant/Air Separator Replacement

WARNING: This page is about a different variant/trim than selected.

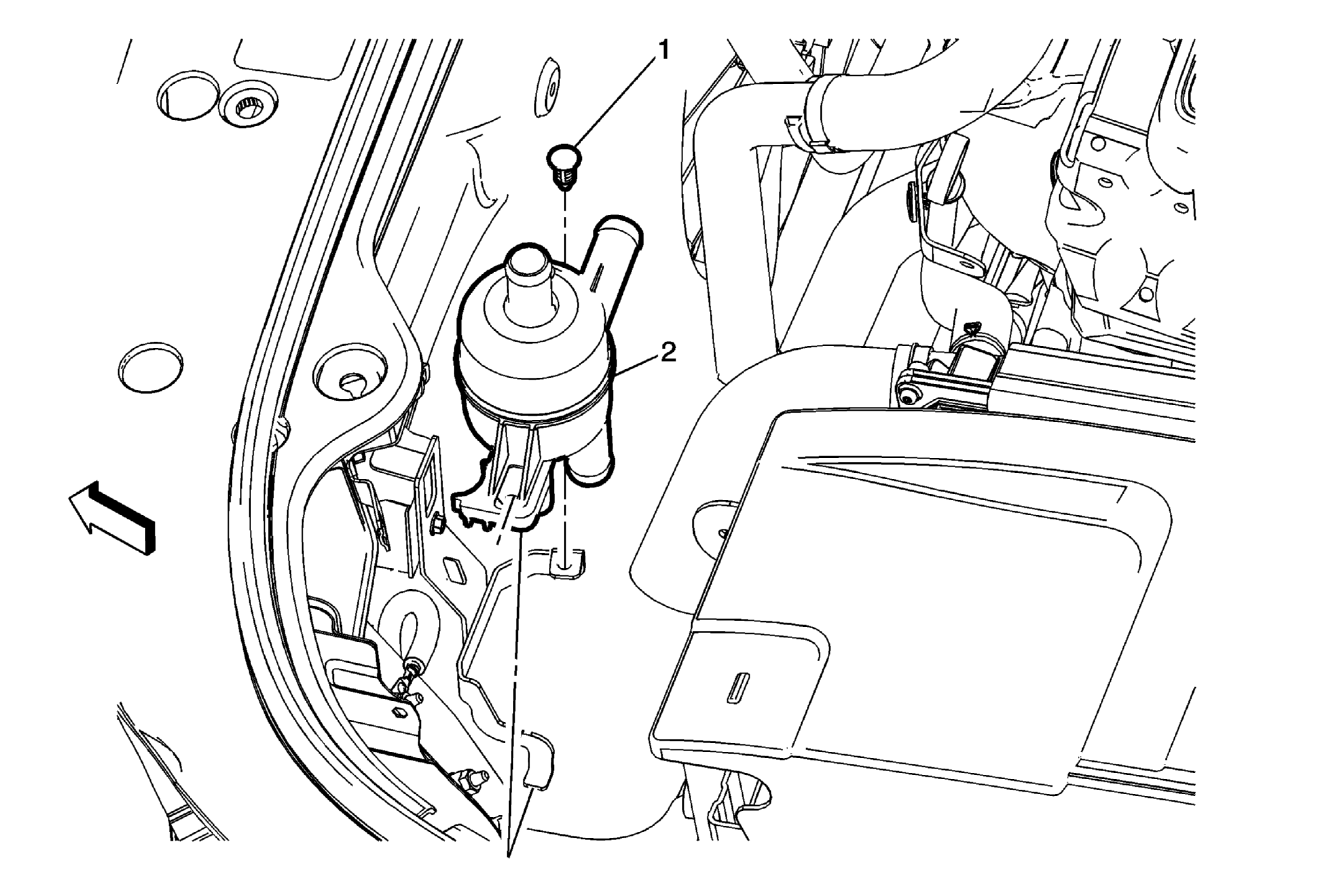

Fig 1: Drive Motor Battery Coolant/Air Separator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) Remove the surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement . Remove the generator control module coolant pump hose. Refer to Generator Control Module Coolant Pump Hose Replacement . Remove generator control module coolant outlet hose. Refer to Generator Control Module Coolant Outlet Hose Replacement .
1	Drive Motor Battery Coolant Air Separator Retainer
2	Drive Motor Battery Coolant Air Separator

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Cooling System Draining and Filling (GE 47716)
Remove the surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement .
Remove the generator control module coolant pump hose. Refer to Generator Control Module Coolant Pump Hose Replacement .
Remove generator control module coolant outlet hose. Refer to Generator Control Module Coolant Outlet Hose Replacement .

Drive Motor Battery Coolant Air Separator Retainer

Drive Motor Battery Coolant Air Separator
