Radiator Surge Tank Outlet Hose Replacement (LUK)

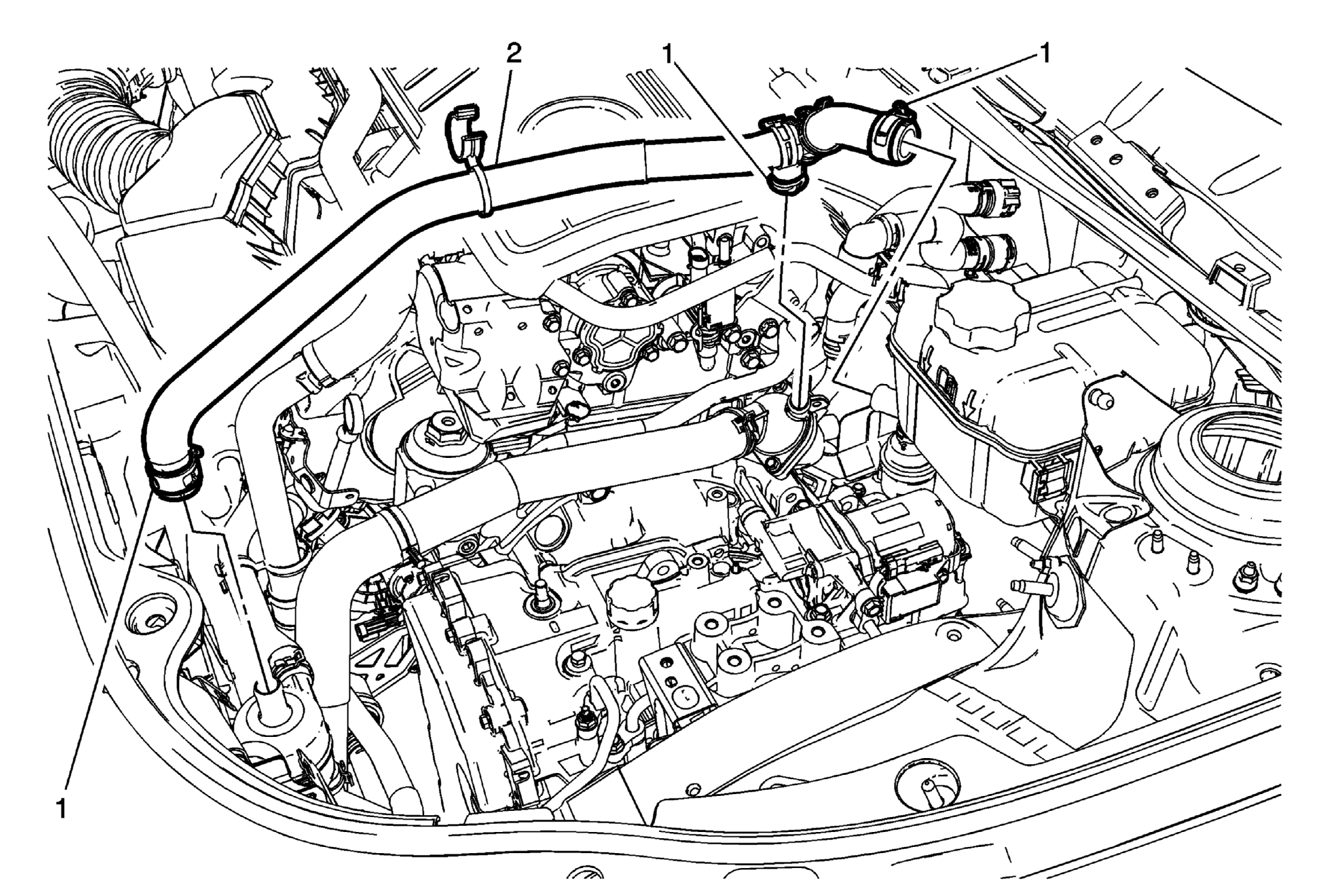

Fig 1: Radiator Surge Tank Outlet Hose (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Radiator Surge Tank Outlet Hose Clamp (Qty:3)
2	Radiator Surge Tank Outlet Hose
