Coolant Recovery Reservoir Bracket Replacement
WARNING: This page is about a different variant/trim than selected.

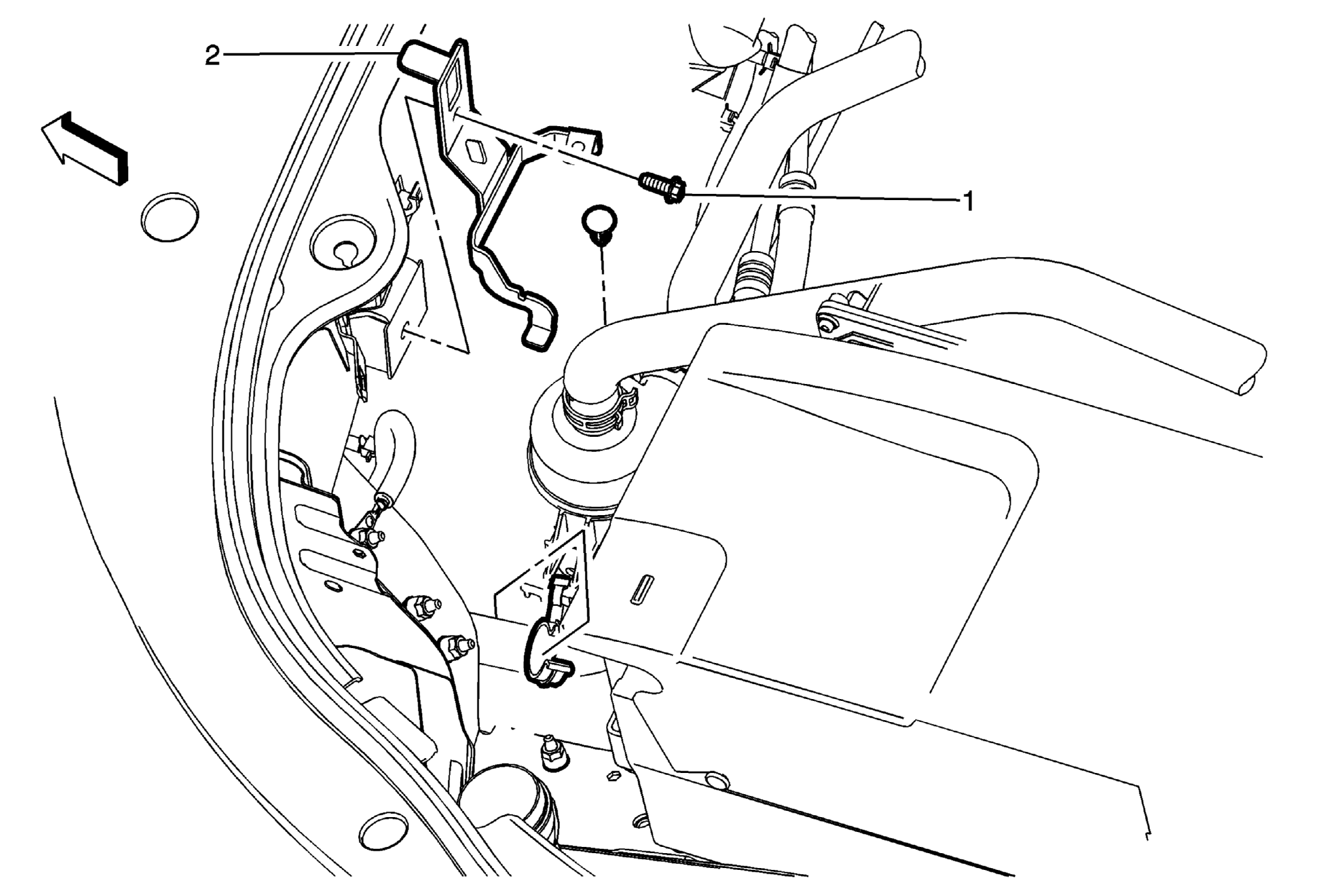

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the drive motor battery cool air separator from the bracket without disconnecting any hoses. Refer to Drive Motor Battery Coolant/Air Separator Replacement . |
|
| 1 | Coolant Recovery Reservoir Fastener
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Coolant Recovery Reservoir Bracket |
