Installation Procedure

WARNING: This page is about a different variant/trim than selected.

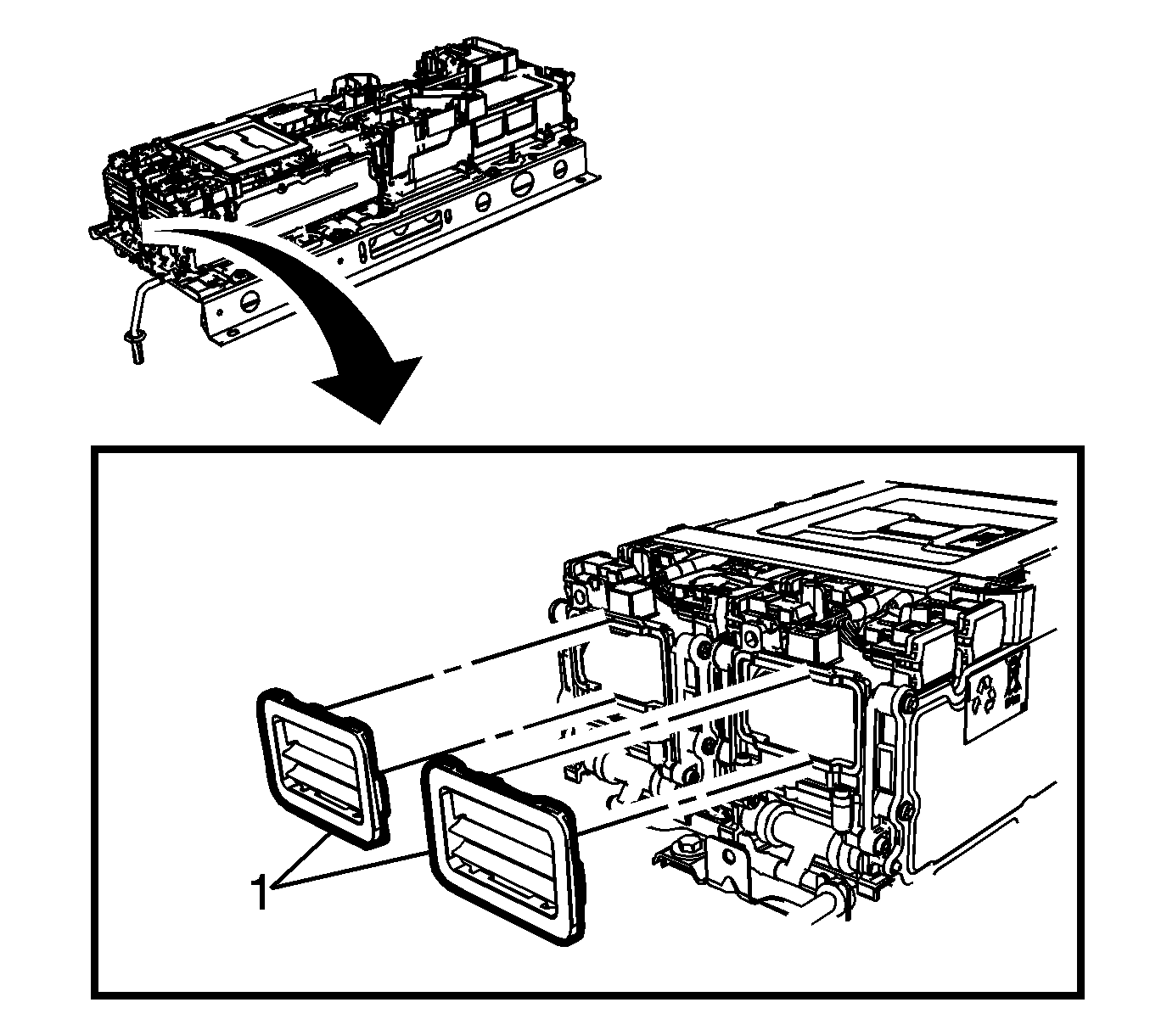

    Fig 1: Battery Cooling Air Inlet Ducts
    GM2601903Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not insert fingers into the vent area.

  1. Attach the battery cooling air inlet ducts (1) into the slotted receivers.
    2. Fig 2: Battery Cooling Air Inlet Duct
    GM2571125Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure the duct is flush against the cover.

  2. Install the drive motor battery cooling air inlet upper duct into the slots with the retainers (1). Refer to Drive Motor Battery Cooling Air Inlet Upper Duct Replacement .
  3. Enable the hybrid battery. Refer to High Voltage Enabling .
