Installation Procedure
WARNING: This page is about a different variant/trim than selected.

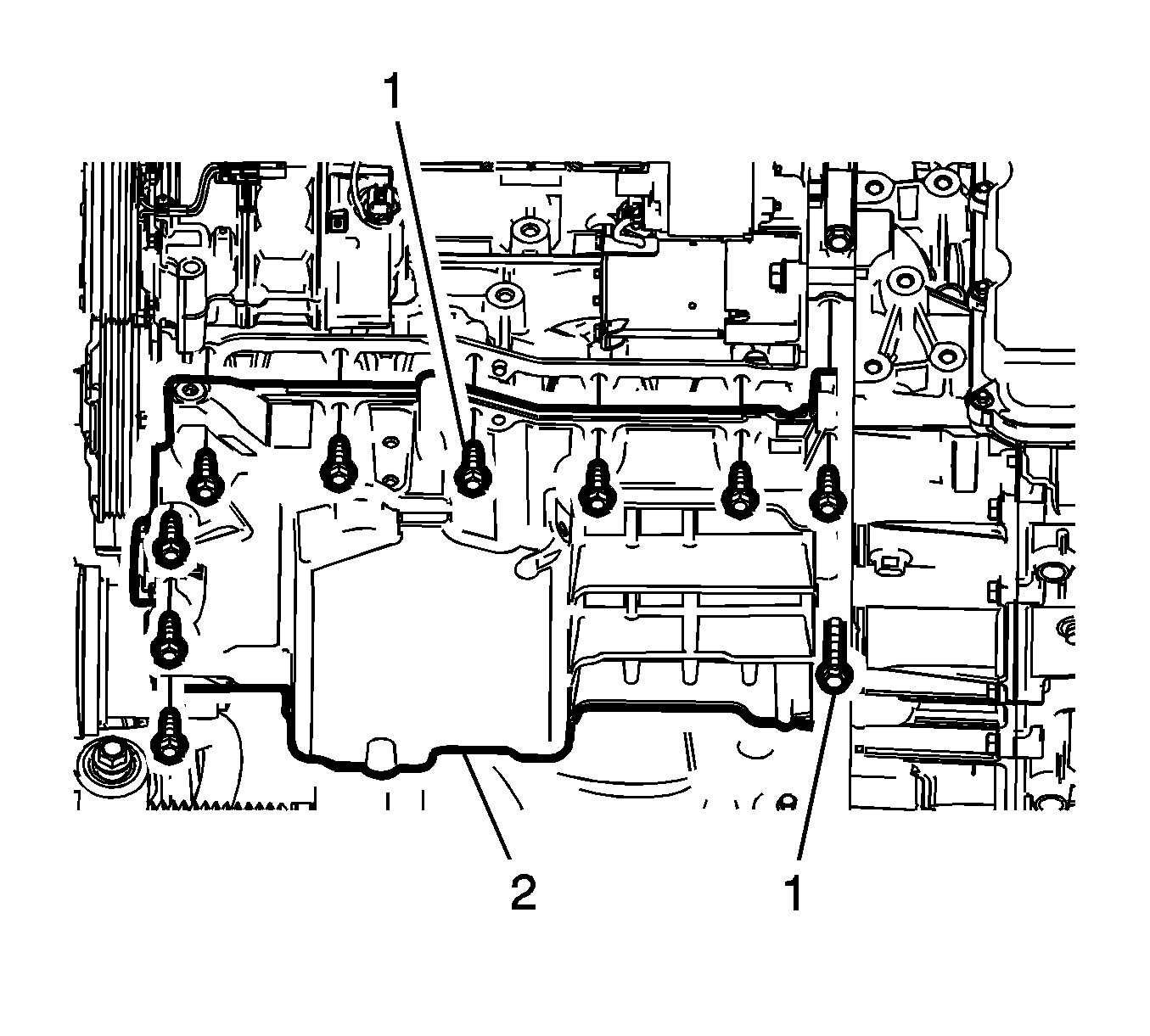

- Apply a 2.3 mm bead of sealer (1) on the level part of the flange next to the chamfer around the perimeter of the oil pan and the oil suction port opening. Refer to Adhesives, Fluids, Lubricants, and Sealers .
- Install the oil pan (2).
- Install the oil pan bolts (1).
- Tighten the oil pan bolts in the sequence shown to 25 N.m (18 lb ft).

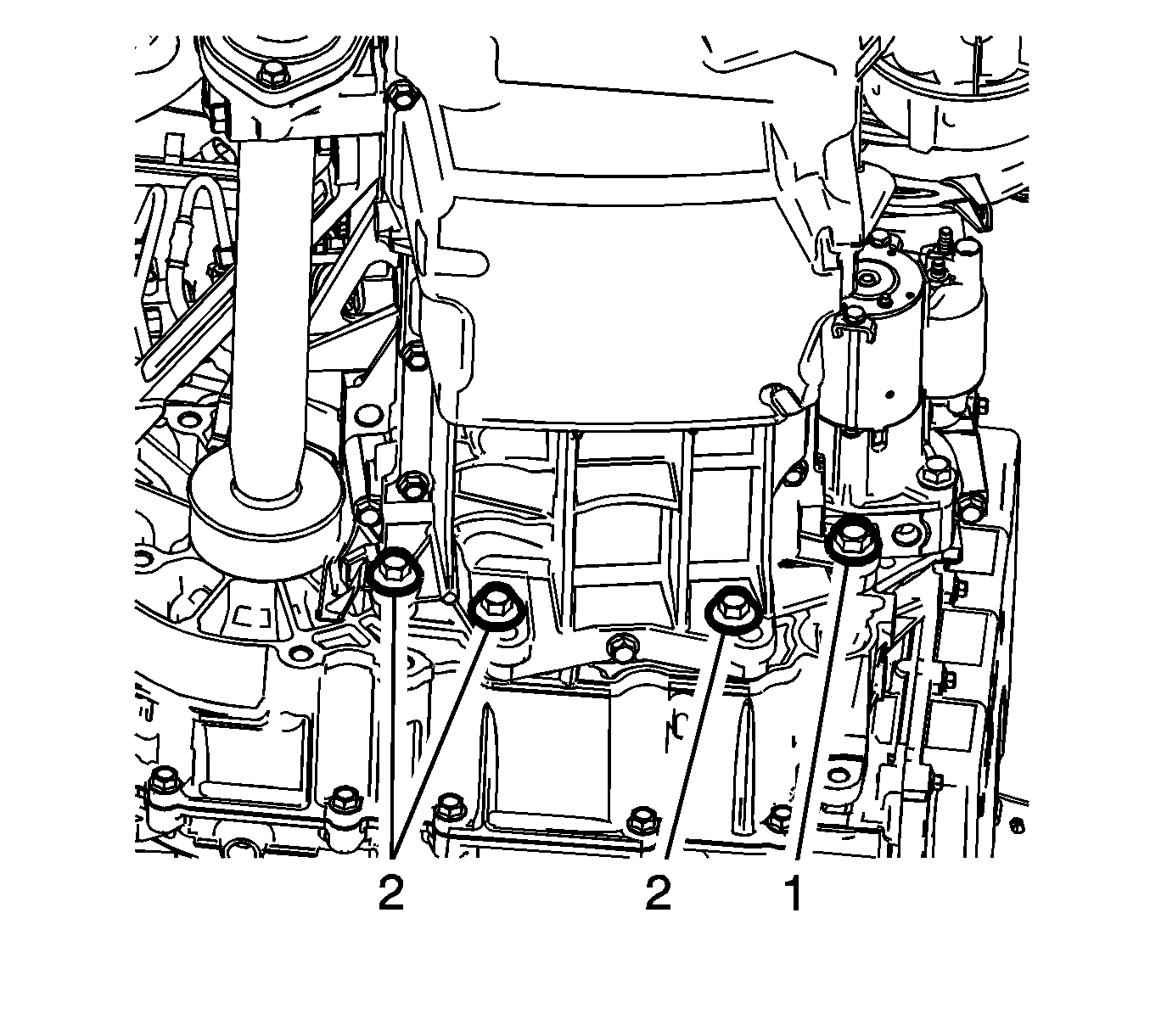

- Install the oil pan to transaxle bolts (1) and tighten to 75 N.m (55 lb ft).

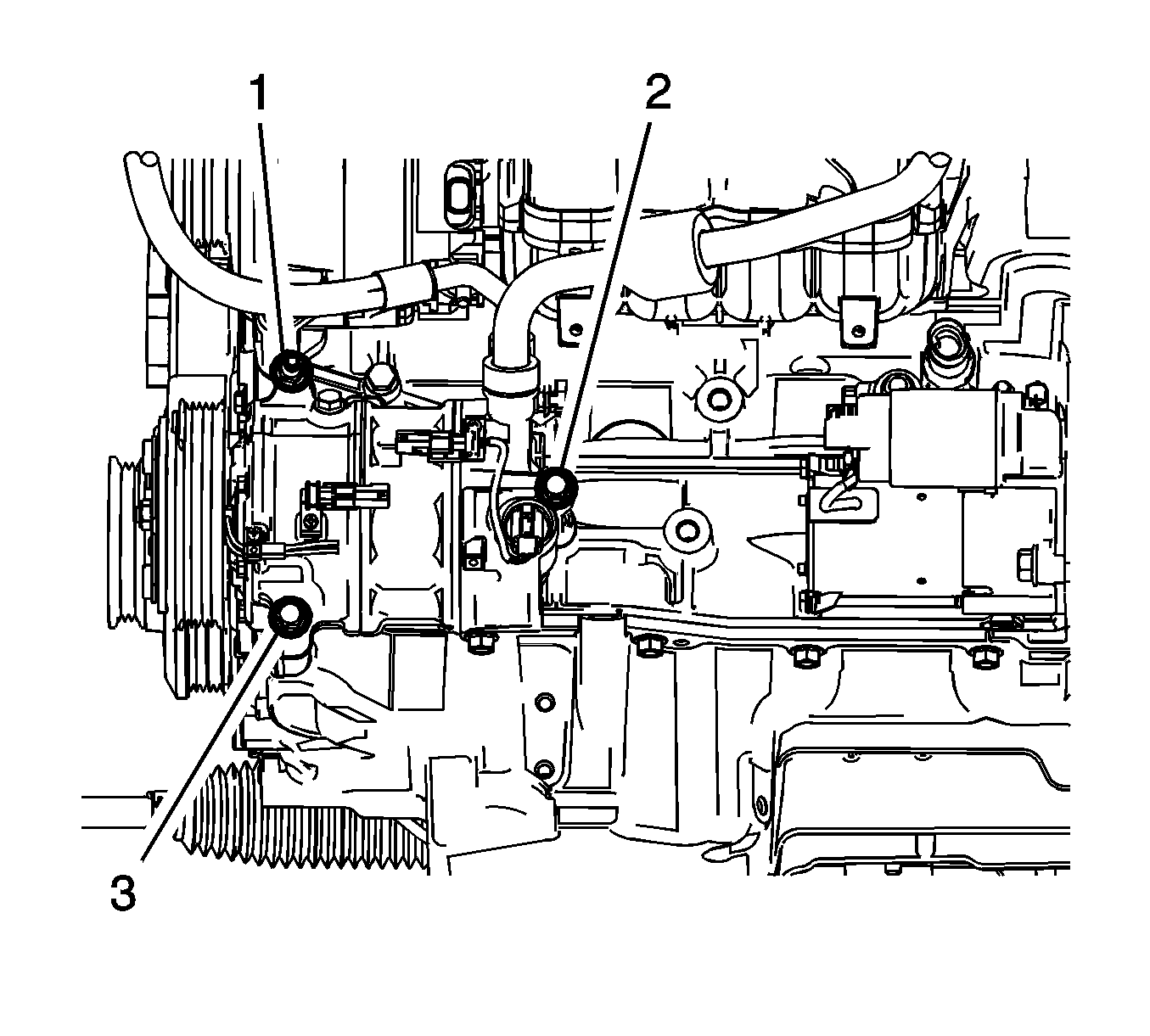

- Install the A/C Compressor bolts (2) and (3) and nut (1) and tighten bolt to 20 N.m (15 lb ft)
- Install the drivetrain and front suspension frame . Refer to Drivetrain and Front Suspension Frame Replacement .
- Install the oil level indicator tube. Refer to Engine Mechanical Specifications (LEA, or LUK) .
- Install the drive belt. Refer to Drive Belt Replacement .
- Fill the engine oil to the proper level. Refer to Engine Oil and Oil Filter Replacement
NOTE:
The lower crankcase surface must be free of contamination prior to applying the sealer.
NOTE:
Install and align the oil pan to block within 20 minutes of applying the sealer.
NOTE:
The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
CAUTION:
Refer to Fastener Caution .
