Installation Procedure

WARNING: This page is about a different variant/trim than selected.

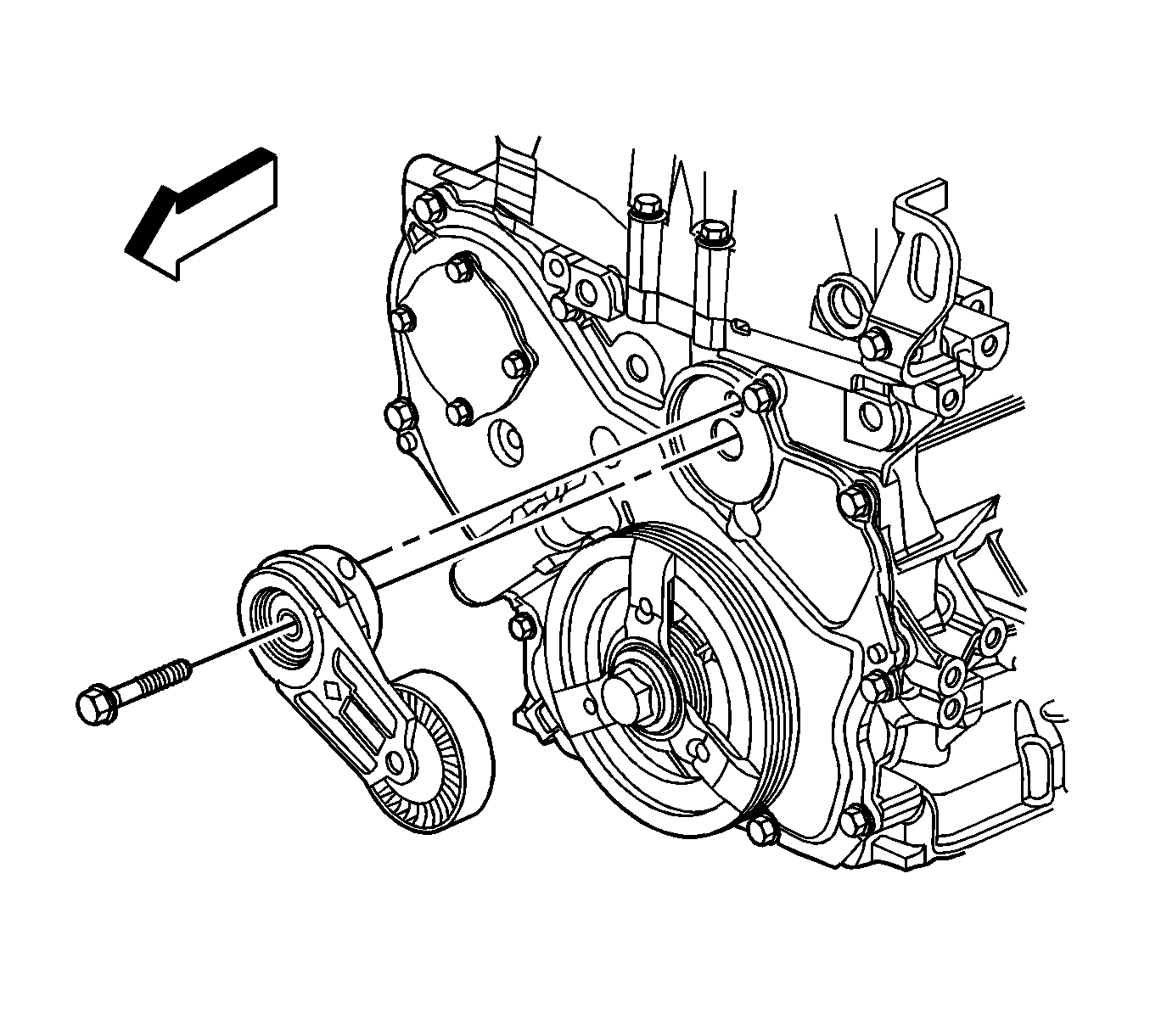

    Fig 1: Drive Belt Tensioner
    GM1571145Courtesy of GENERAL MOTORS COMPANY
  1. Position the drive belt tensioner.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt tensioner bolt and tighten to 45 N.m (33 lb ft).
  3. Install the drive belt. Refer to Drive Belt Replacement .
