Installation Procedure

WARNING: This page is about a different variant/trim than selected.

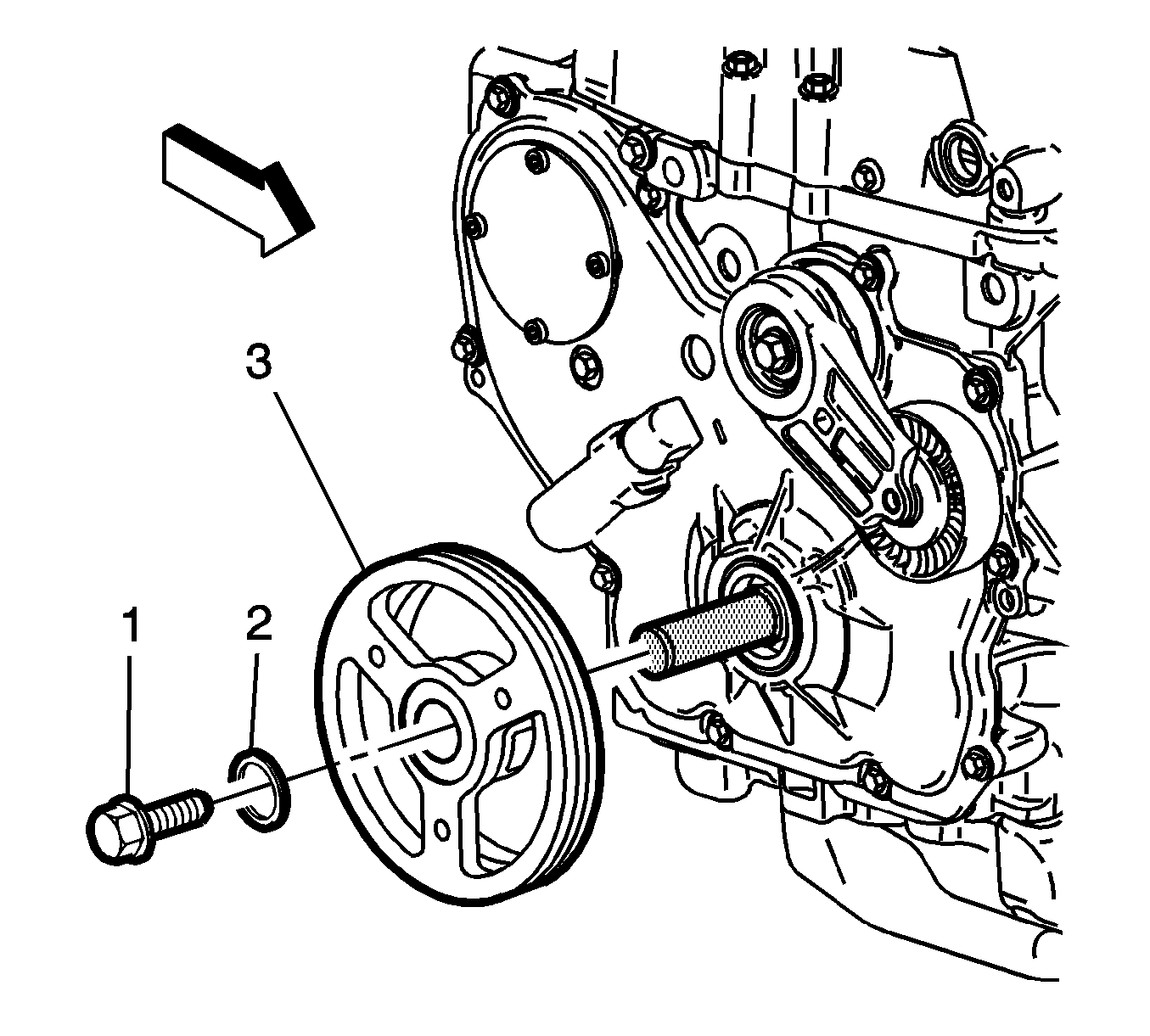

    Fig 1: Bolt, Washer And Crankshaft Balancer
    GM2604075Courtesy of GENERAL MOTORS COMPANY
  1. Position the crankshaft balancer (3) .
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install a NEW crankshaft balancer bolt (1) and washer (2).

    Tighten

    1. First Pass 100 N.m (74 lb ft).
    2. Final Pass 125 degrees using the EN-45059  meter.
  3. Remove the J-43653  flywheel holding tool.
  4. Install the starter. Refer to Starter Replacement (LEA, LUK) .
  5. Install the drive belt. Refer to Drive Belt Replacement .
  6. Install the wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
