Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Air Cleaner Outlet Duct Replacement
  2. Remove the ignition coils. Refer to Ignition Coil Replacement Ignition Coil Replacement

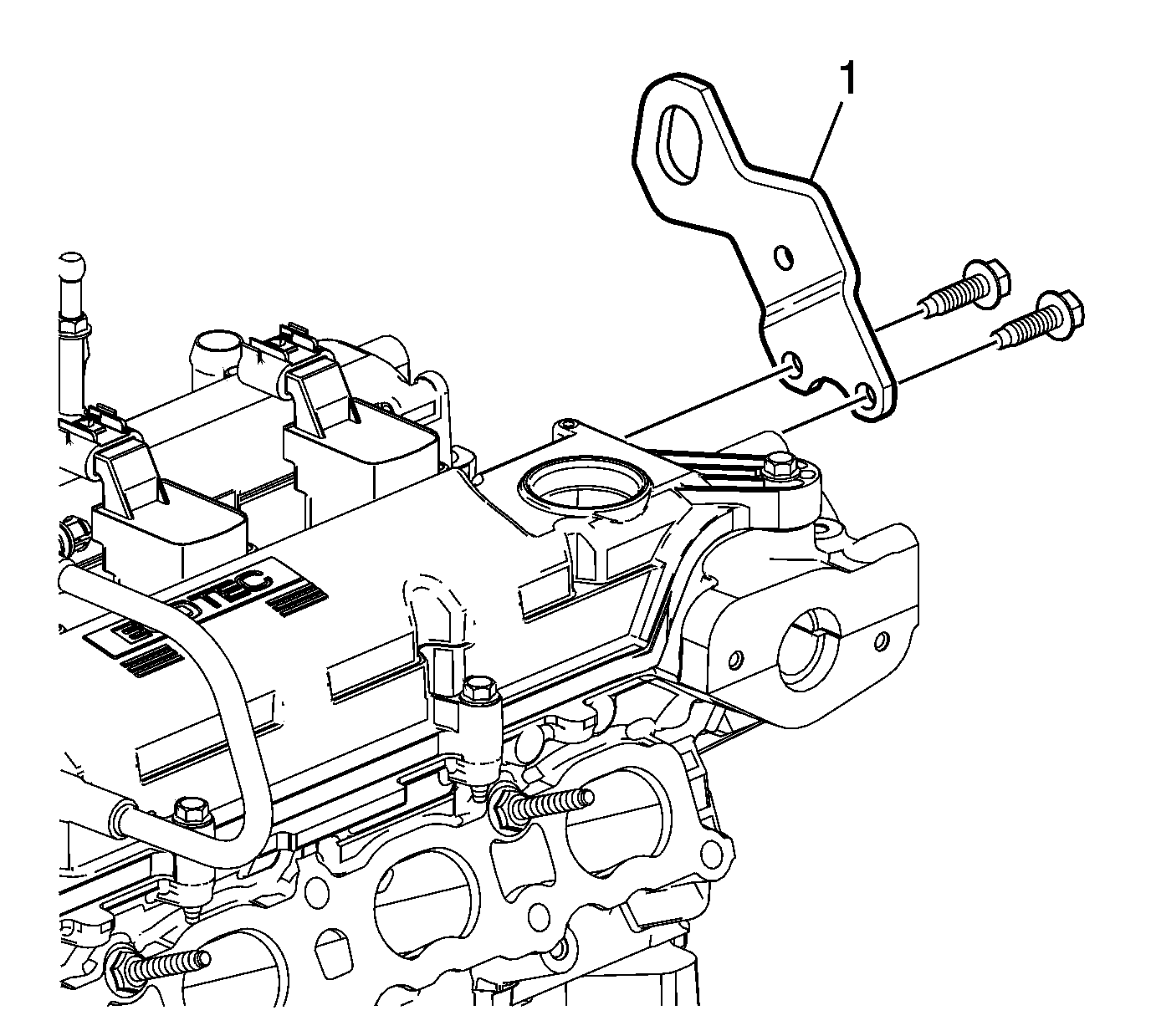

    3. Fig 1: Rear Lift Bracket
    GM2206997Courtesy of GENERAL MOTORS COMPANY
  3. Remove the rear lift bracket (1).

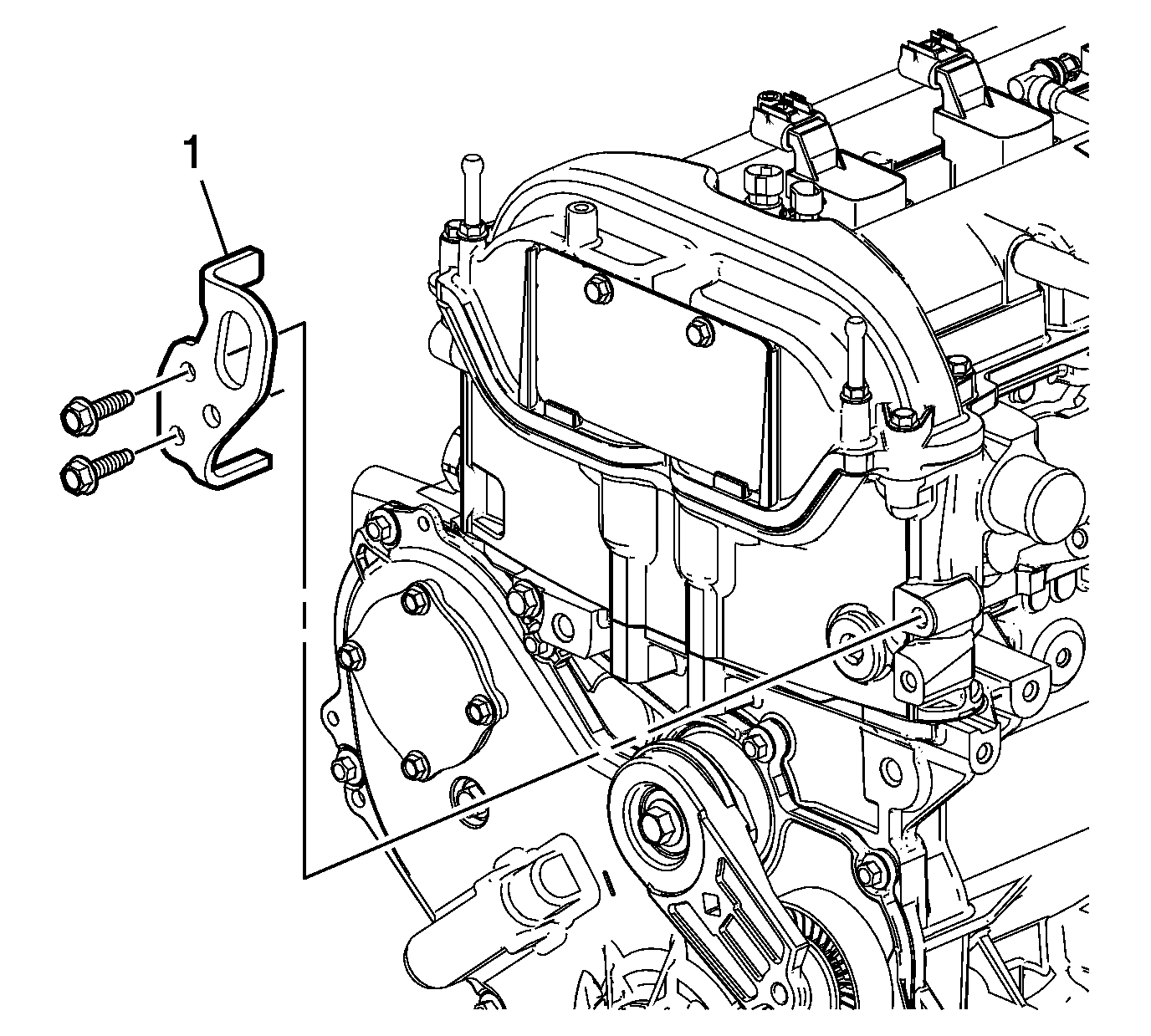

    4. Fig 2: Front Lift Bracket
    GM2206998Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front lift bracket (1).

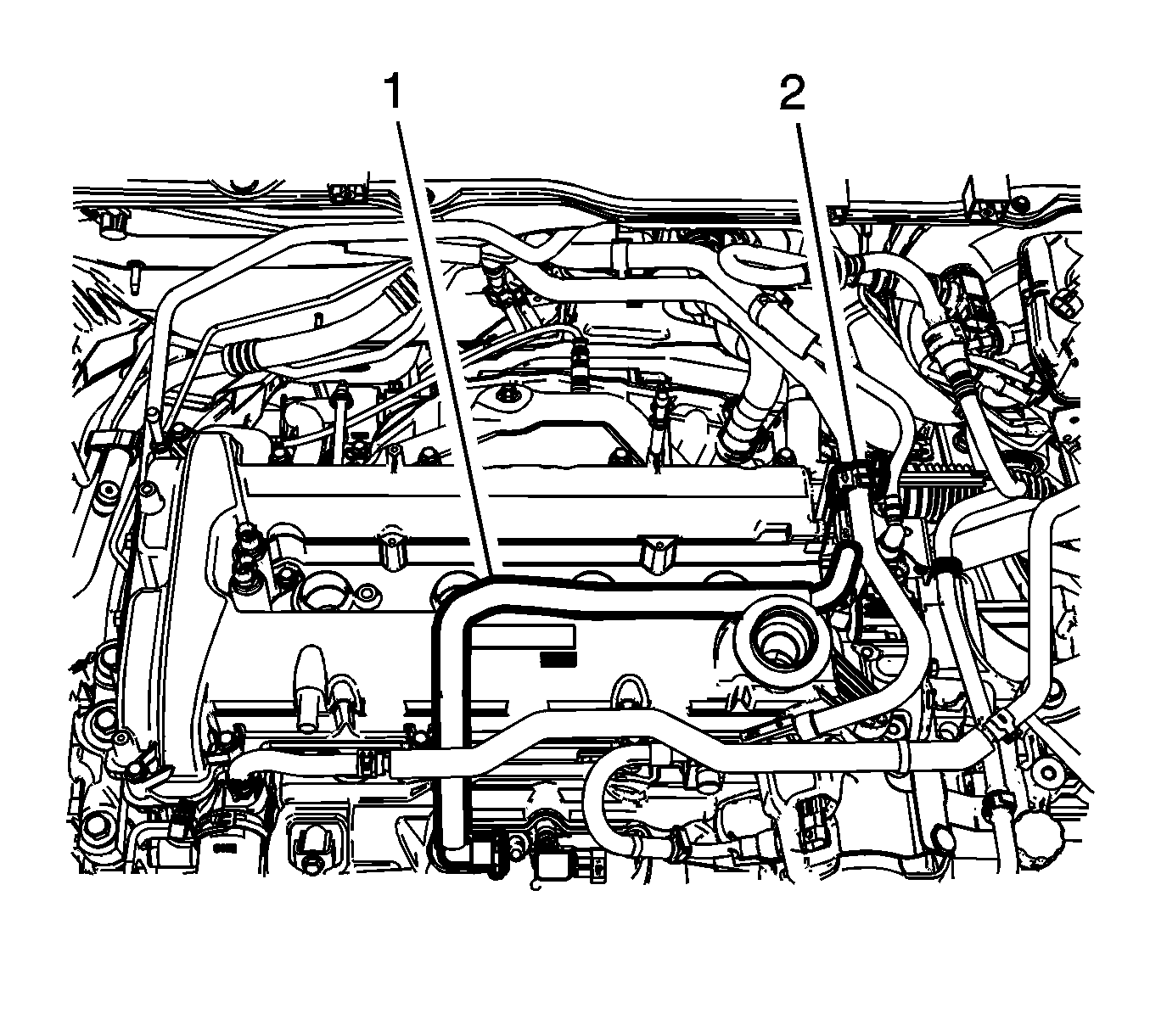

    5. Fig 3: Evaporative Emission Canister Purge Tube
    GM2680256Courtesy of GENERAL MOTORS COMPANY
  5. Remove the evaporative emission canister purge tube (1). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Disconnect fuel line clip (2).

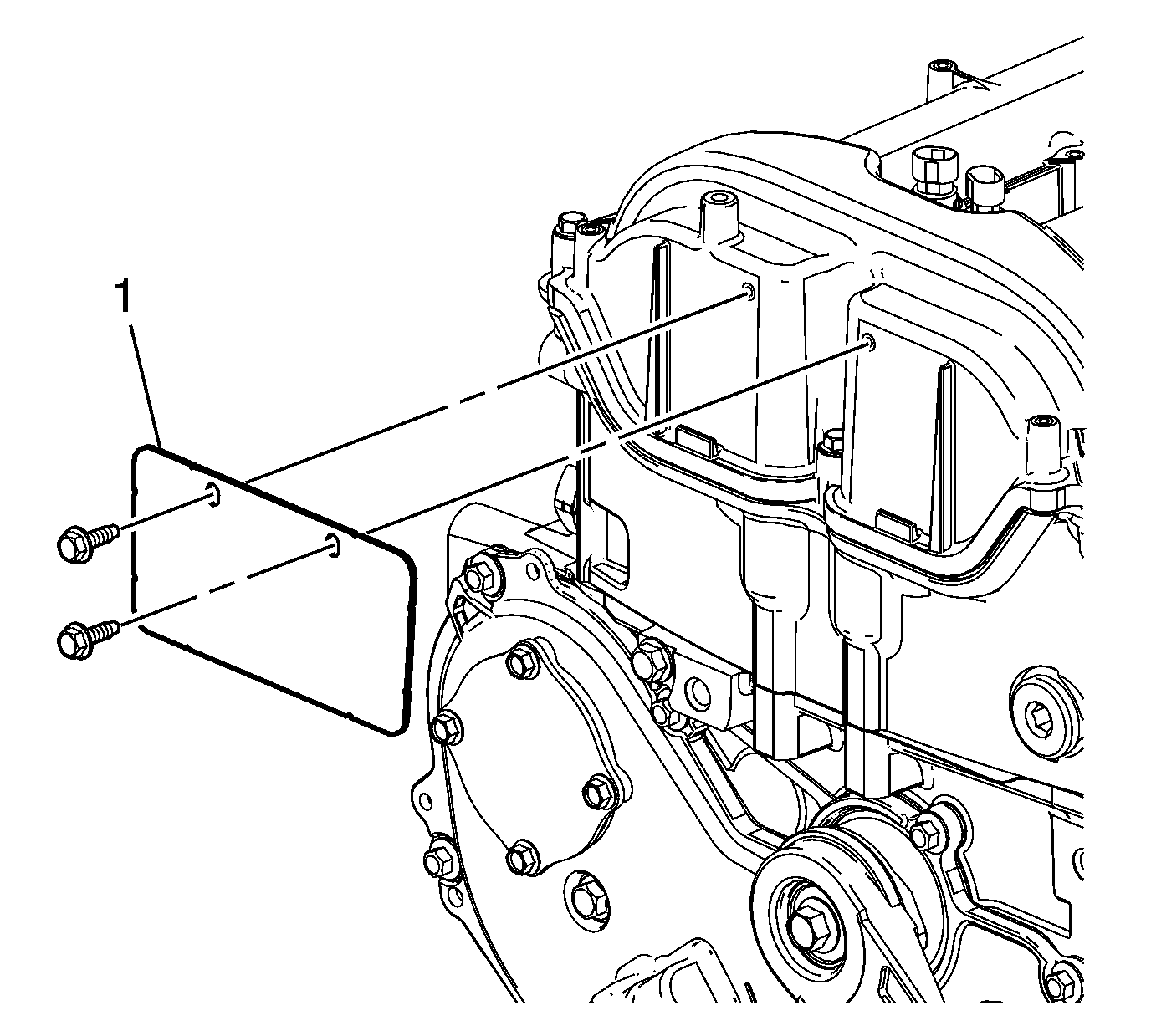

    7. Fig 4: Camshaft Housing Cover Insulator
    GM2207000Courtesy of GENERAL MOTORS COMPANY
  7. Remove the camshaft housing cover insulator (1).

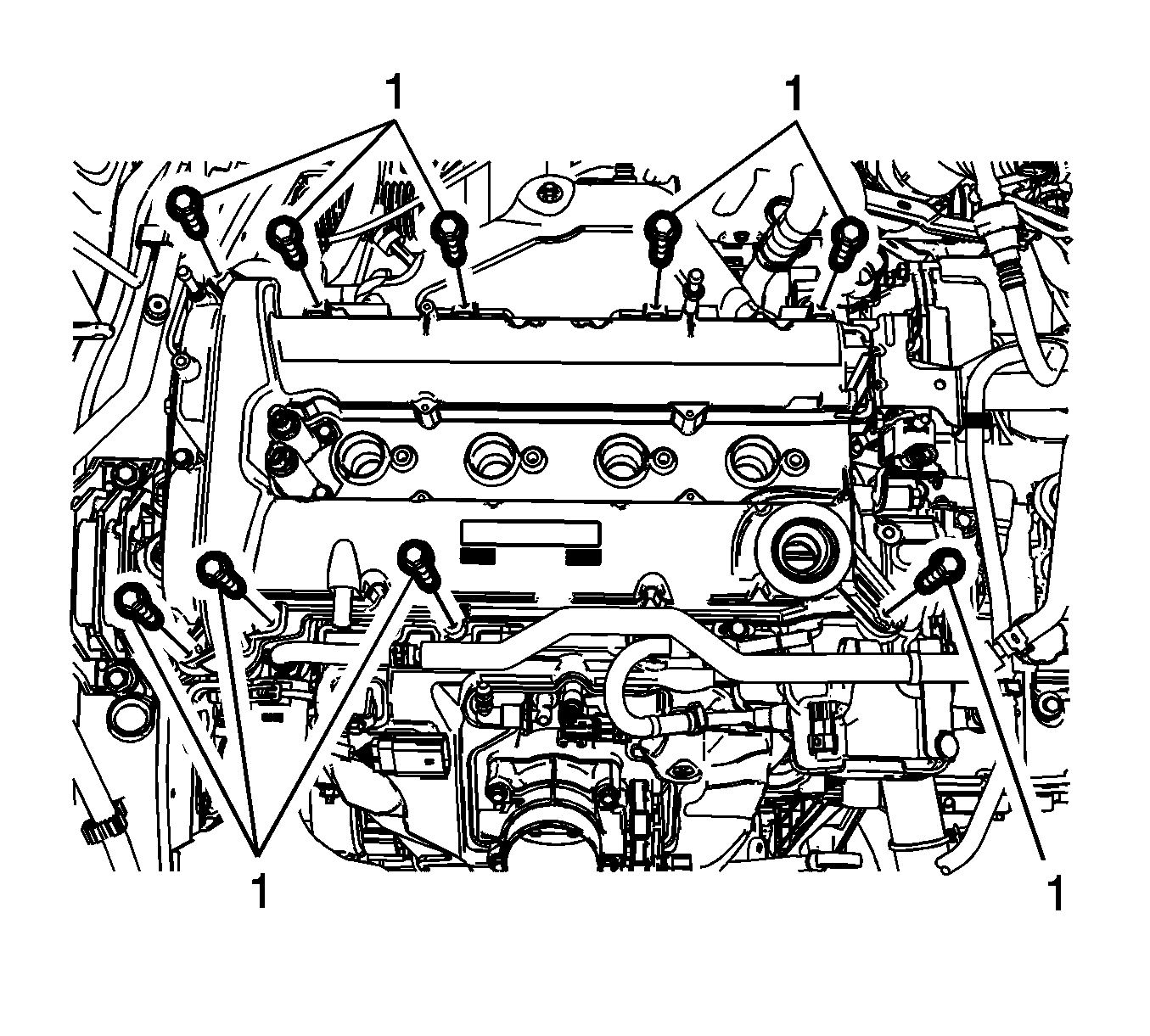

    8. Fig 5: Camshaft Cover Bolt
    GM2680258Courtesy of GENERAL MOTORS COMPANY
  8. Remove the camshaft cover bolts (1).

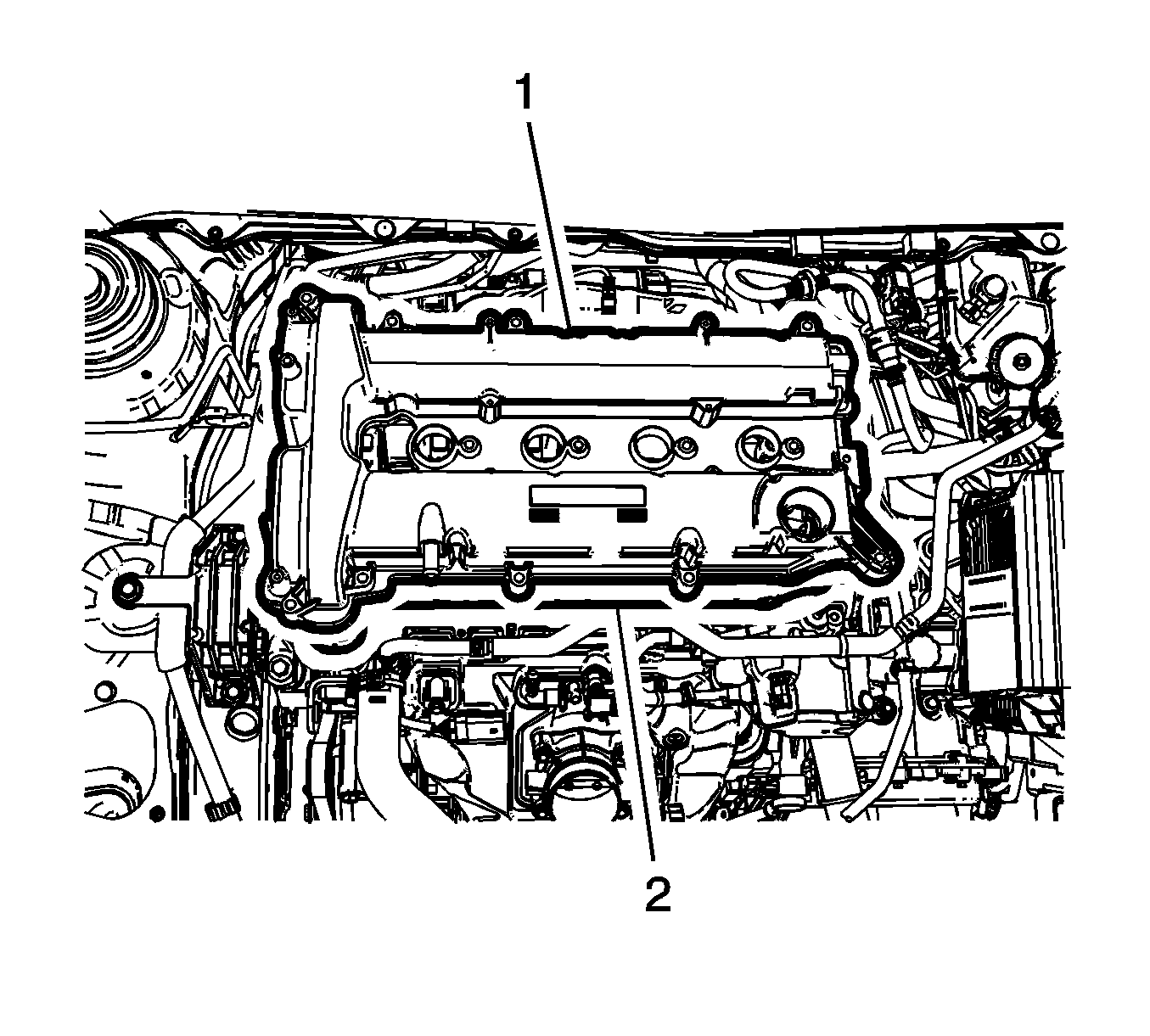

    9. Fig 6: Camshaft Cover And Gasket
    GM2680257Courtesy of GENERAL MOTORS COMPANY
  9. Remove the camshaft cover (1) and gasket (2).
