Turbocharger Wastegate Actuator Replacement

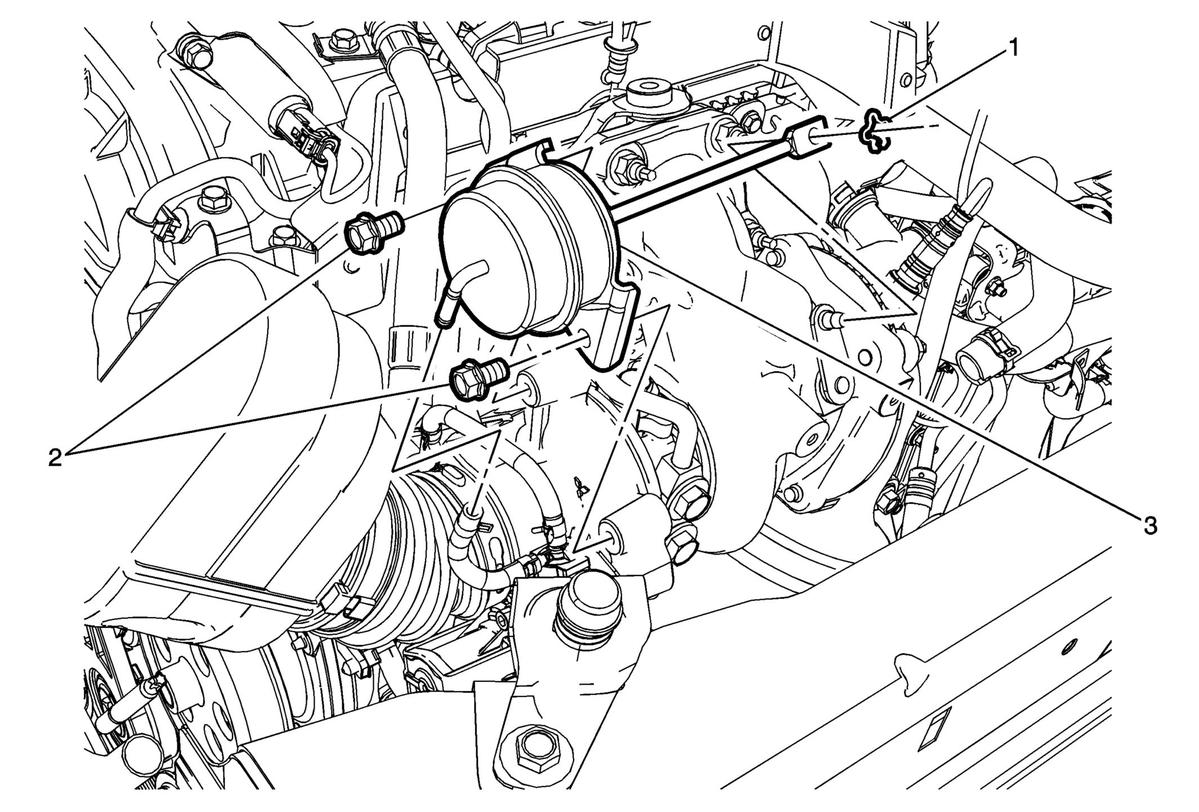

Fig 1: Turbocharger Wastegate Actuator (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement .
1	Turbocharger Wastegate Actuator Arm Retainer
2	Turbocharger Wastegate Actuator Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  20 N.m (15 lb ft)
3	Turbocharger Wastegate Actuator Procedure  Disconnect the vacuum line from the turbocharger wastegate actuator.
