Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Non Tamper Proof)

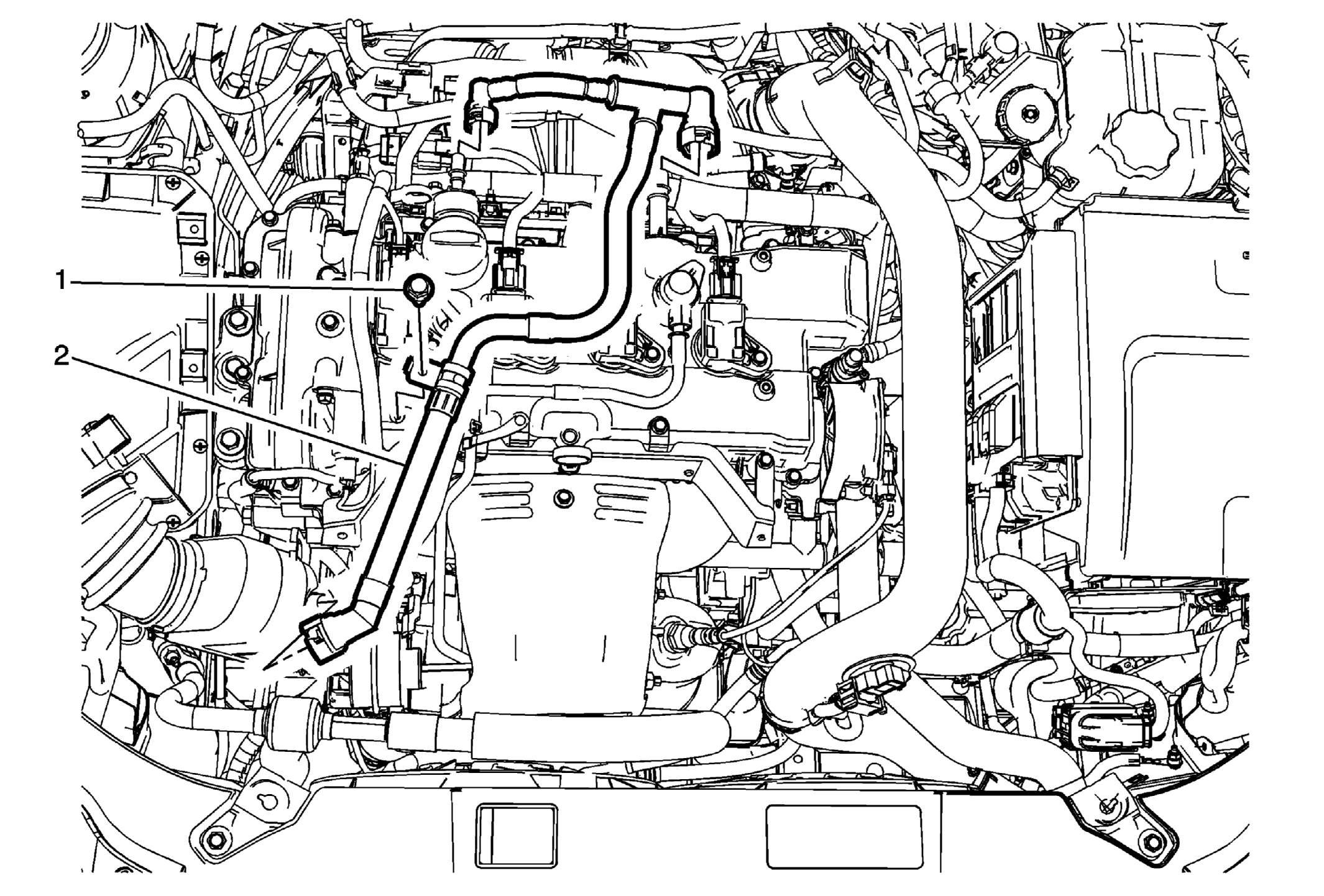

Fig 1: Positive Crankcase Ventilation Hose/Pipe/Tube (Camshaft Cover to Air Cleaner Resonator to Outlet Duct)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
1	Positive Crankcase Ventilation Hose Fastener CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Positive Crankcase Ventilation Hose
