Installation Procedure

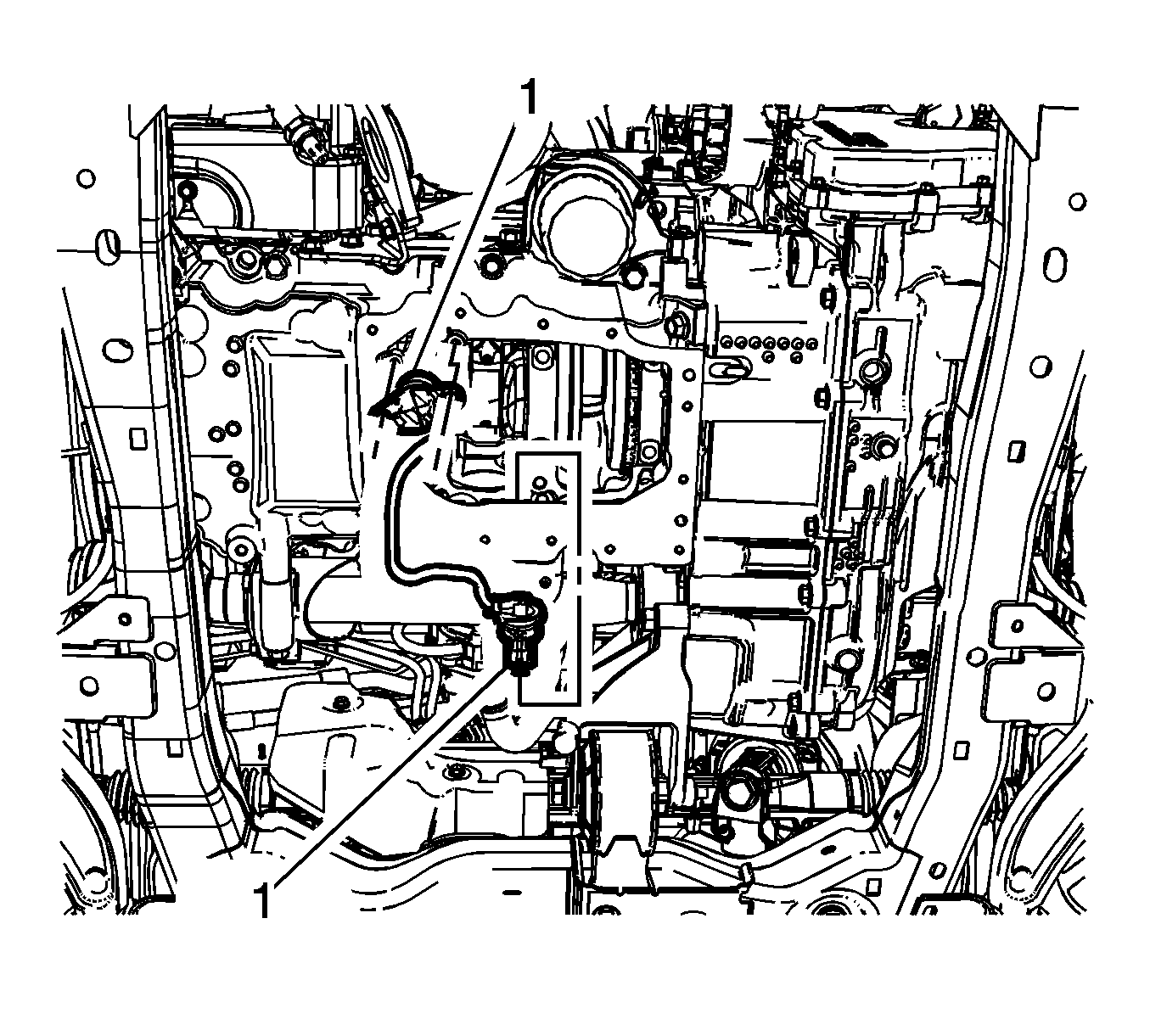

    Fig 1: O-ring Around Level Sensor
    GM2812246Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine oil level sensor (1).

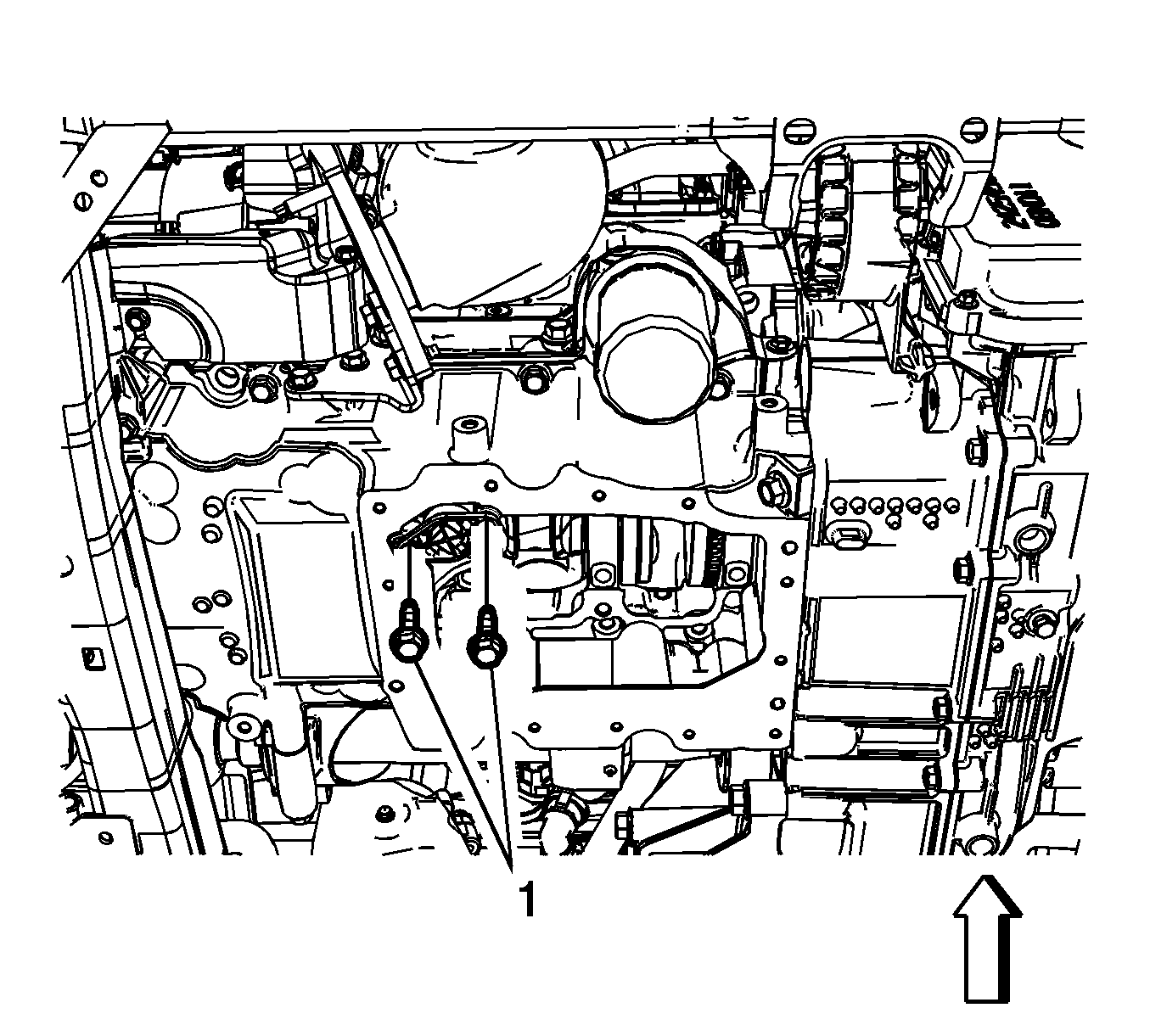

    2. Fig 2: Engine Oil Level Sensor Fasteners
    GM2812245Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the engine oil level sensor fastener (1) and tight to 10 N.m (89 lb in).

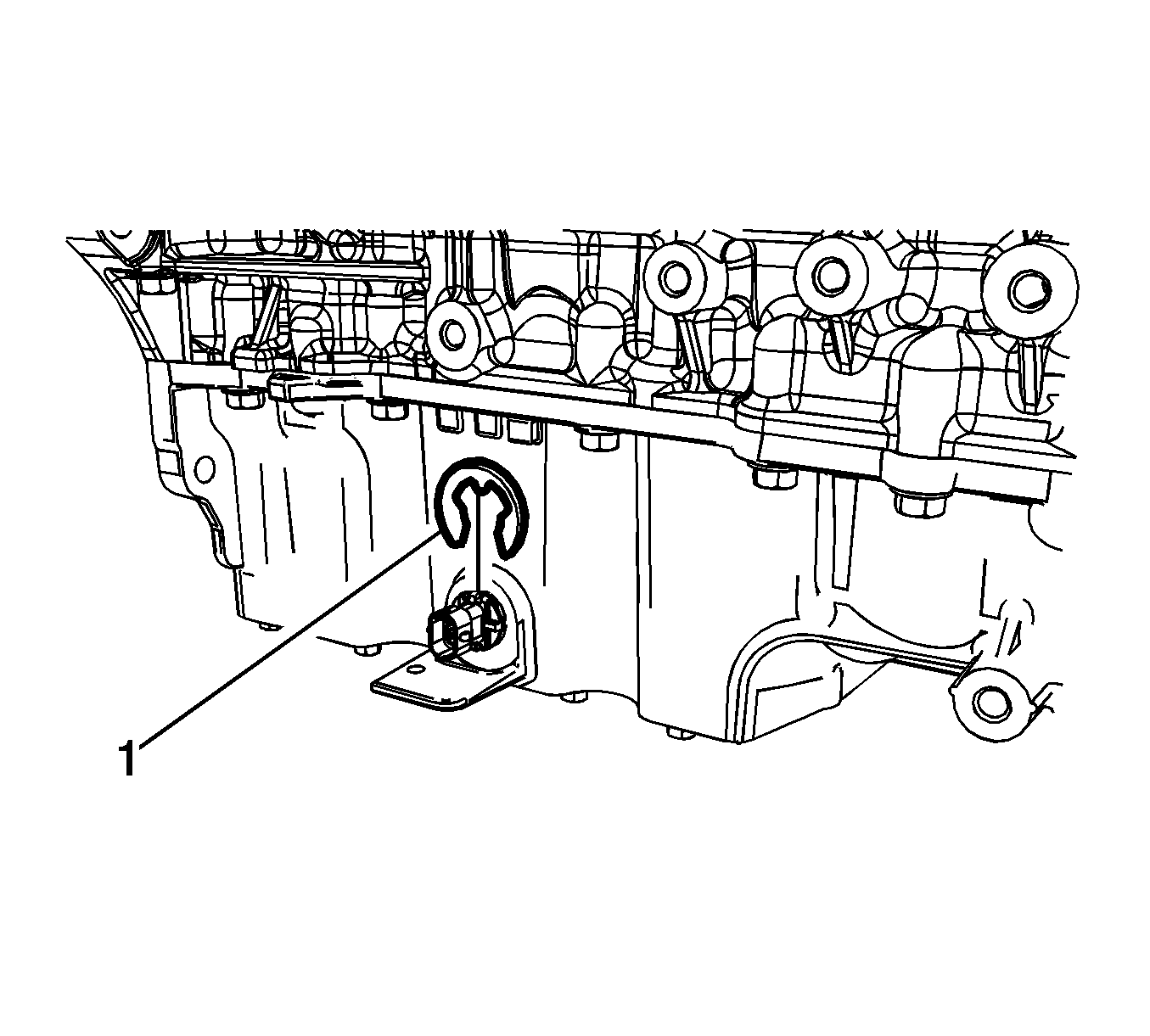

    3. Fig 3: Engine Oil Level Sensor C-clip
    GM2812244Courtesy of GENERAL MOTORS COMPANY
  3. Install the engine oil level sensor retainer (1).
  4. Connect the oil level sensor electrical connector.
  5. Install the lower oil pan. Refer to Lower Oil Pan Replacement .
