Drive Belt Tensioner Replacement

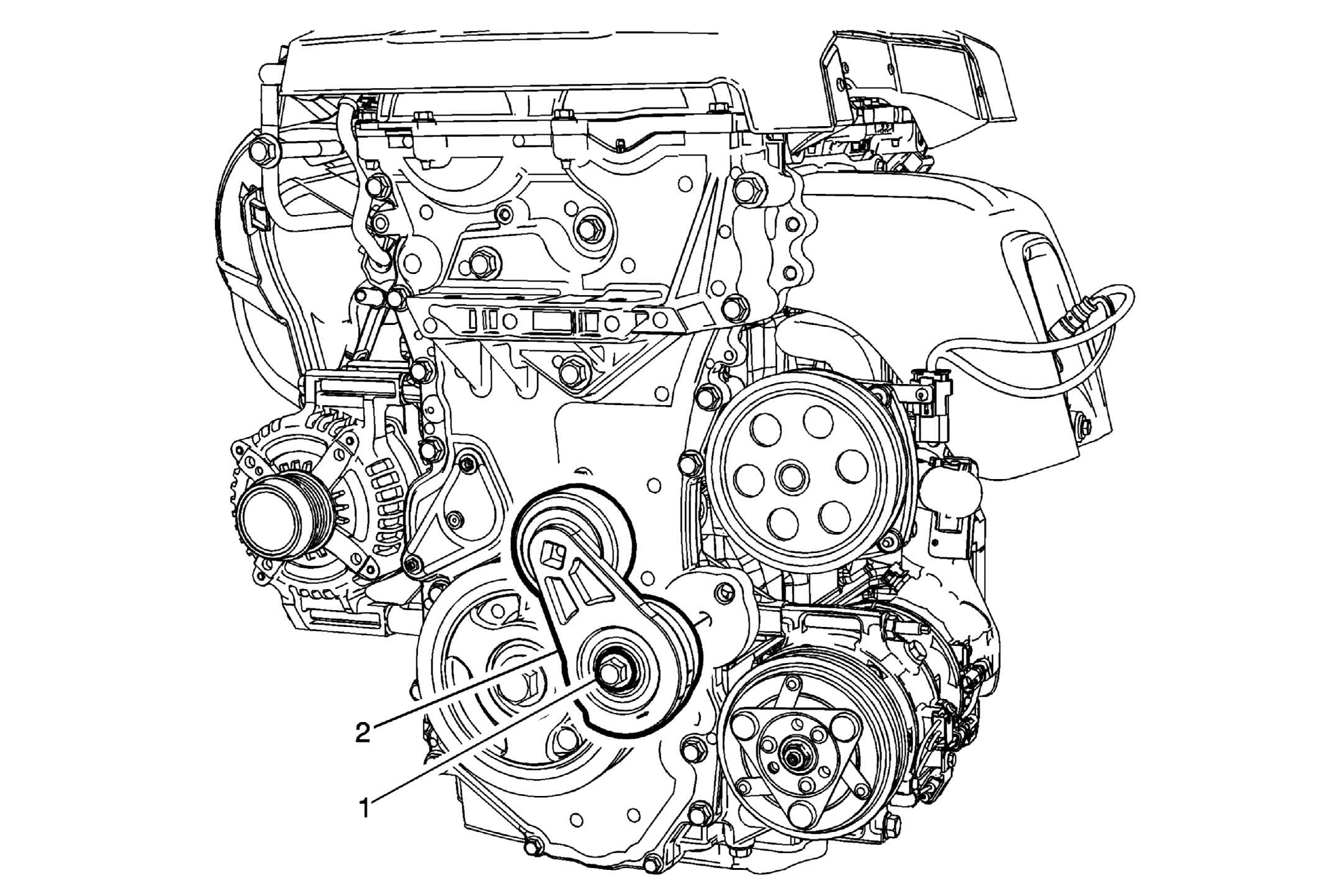

Fig 1: Drive Belt Tensioner
GM2812296Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the drive belt. Refer to Drive Belt Replacement .
1 Drive belt tensioner fastener
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Drive belt tensioner
