Drive Belt Replacement

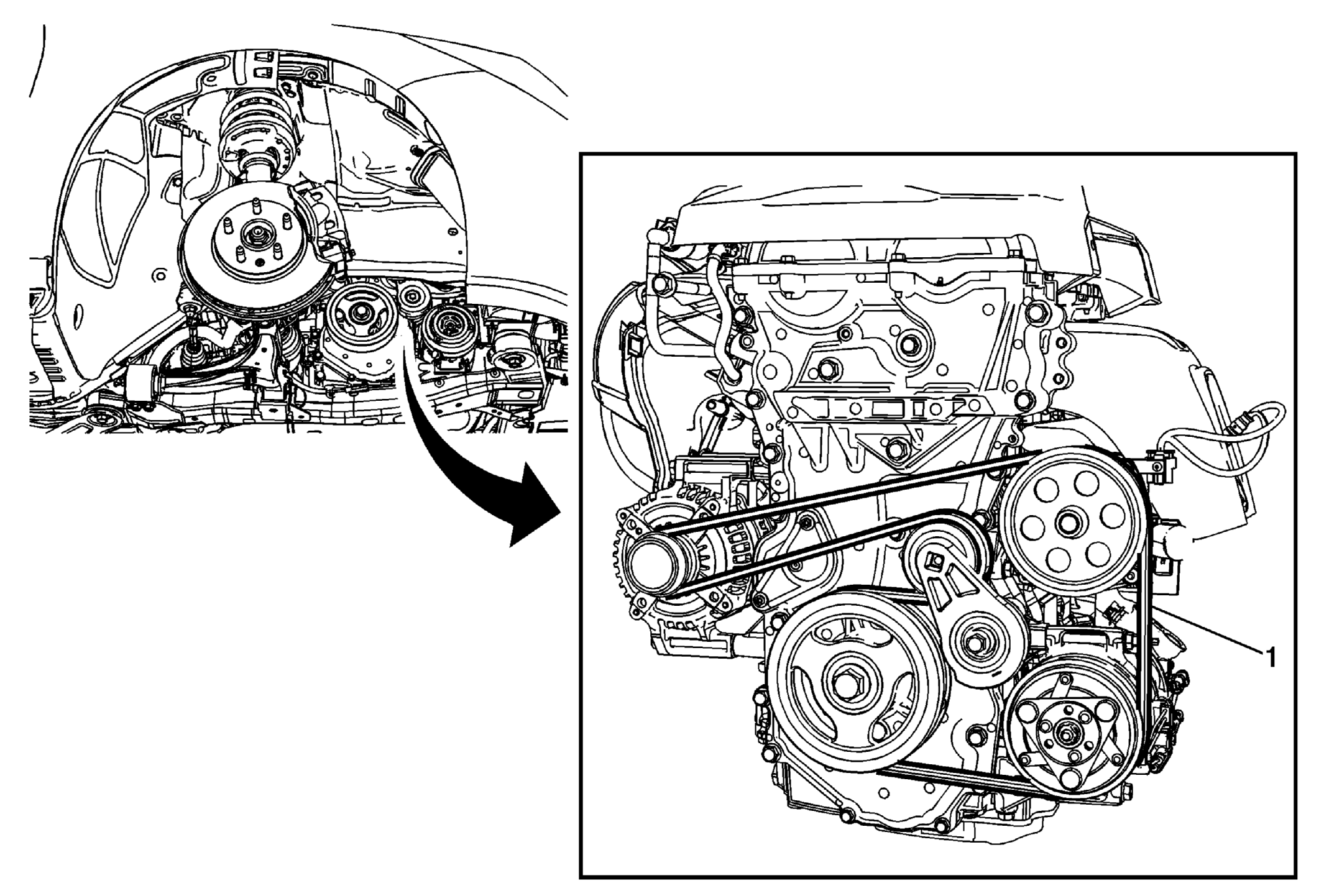

Fig 1: Drive Belt Routing (LTG)
GM2812339Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
1 Drive Belt

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Remove the drive belt from the pulleys and tensioner.
