Camshaft Cover Heat Shield Replacement

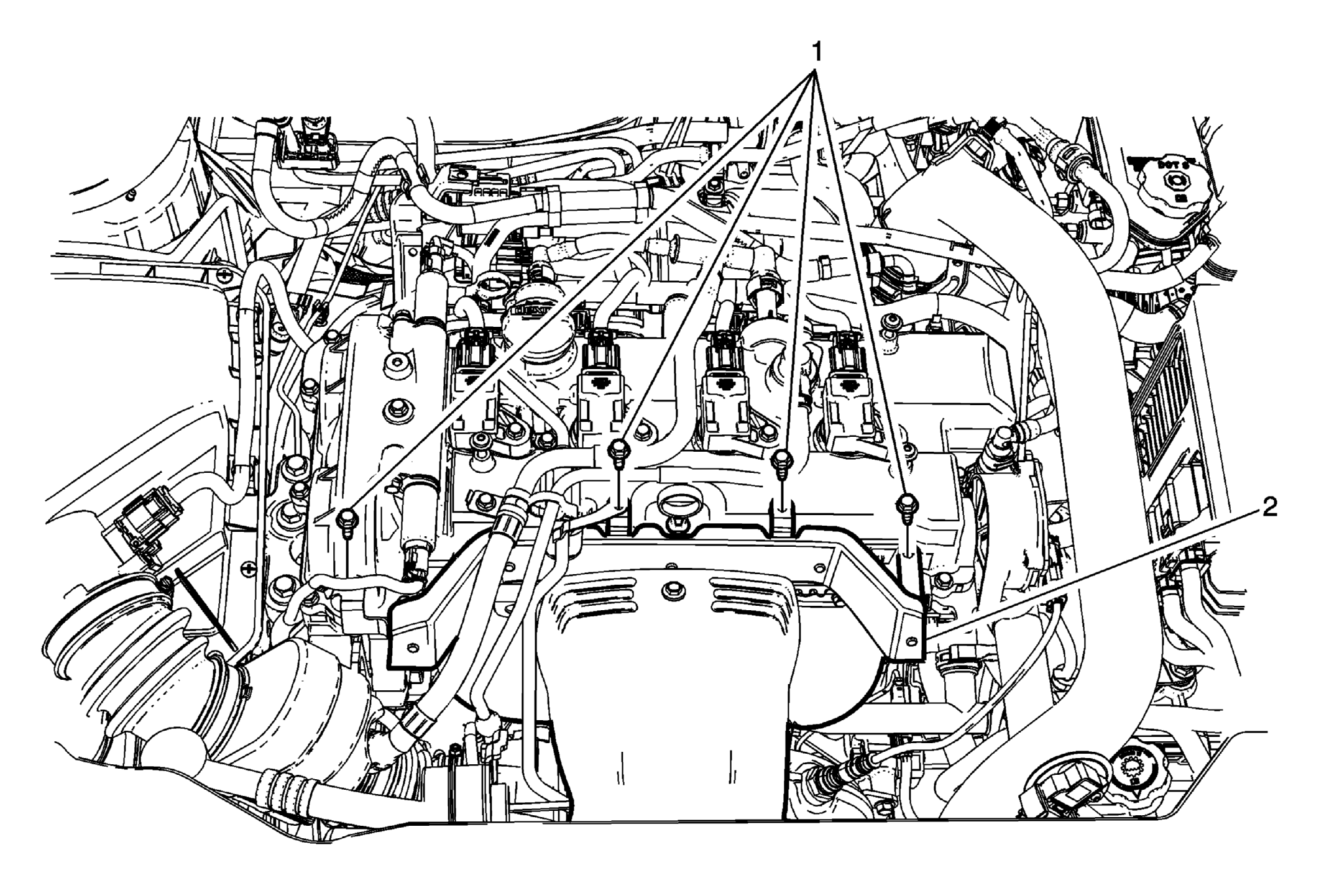

Fig 1: Camshaft Cover Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
1	Camshaft Heat Shield Cover Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Camshaft Heat Shield Cover
