Removal Procedure

WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Eye Protection Warning .

  1. Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LTG) .
  2. Remove the turbocharger. Refer to Turbocharger Replacement .

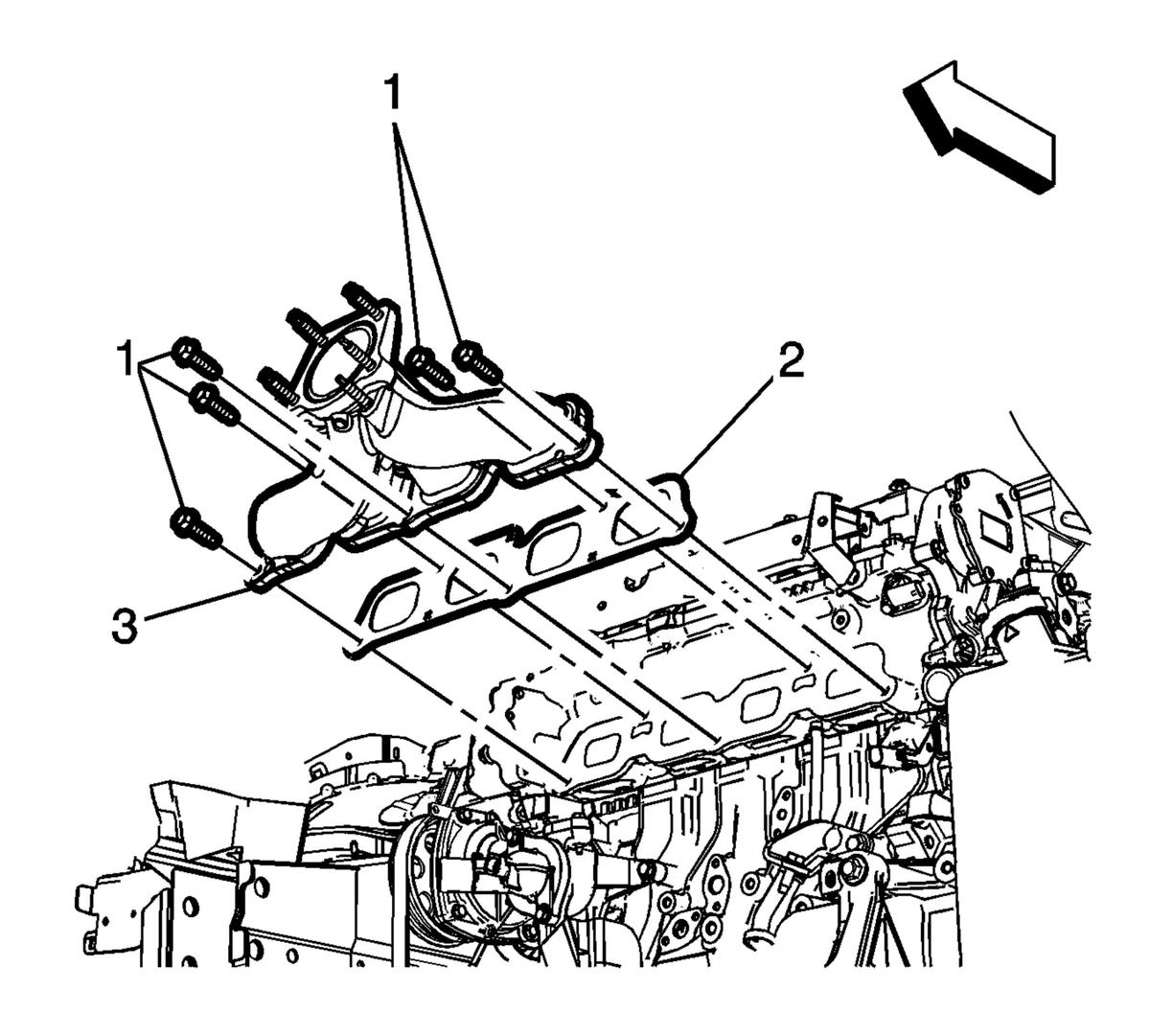

    3. Fig 1: Exhaust Manifold
    GM2865081Courtesy of GENERAL MOTORS COMPANY
  3. Remove the exhaust manifold fasteners (1) and discard.
  4. Remove the exhaust manifold (3) and discard the exhaust manifold gasket (2).
