Radiator Outlet Hose Replacement (LUK)

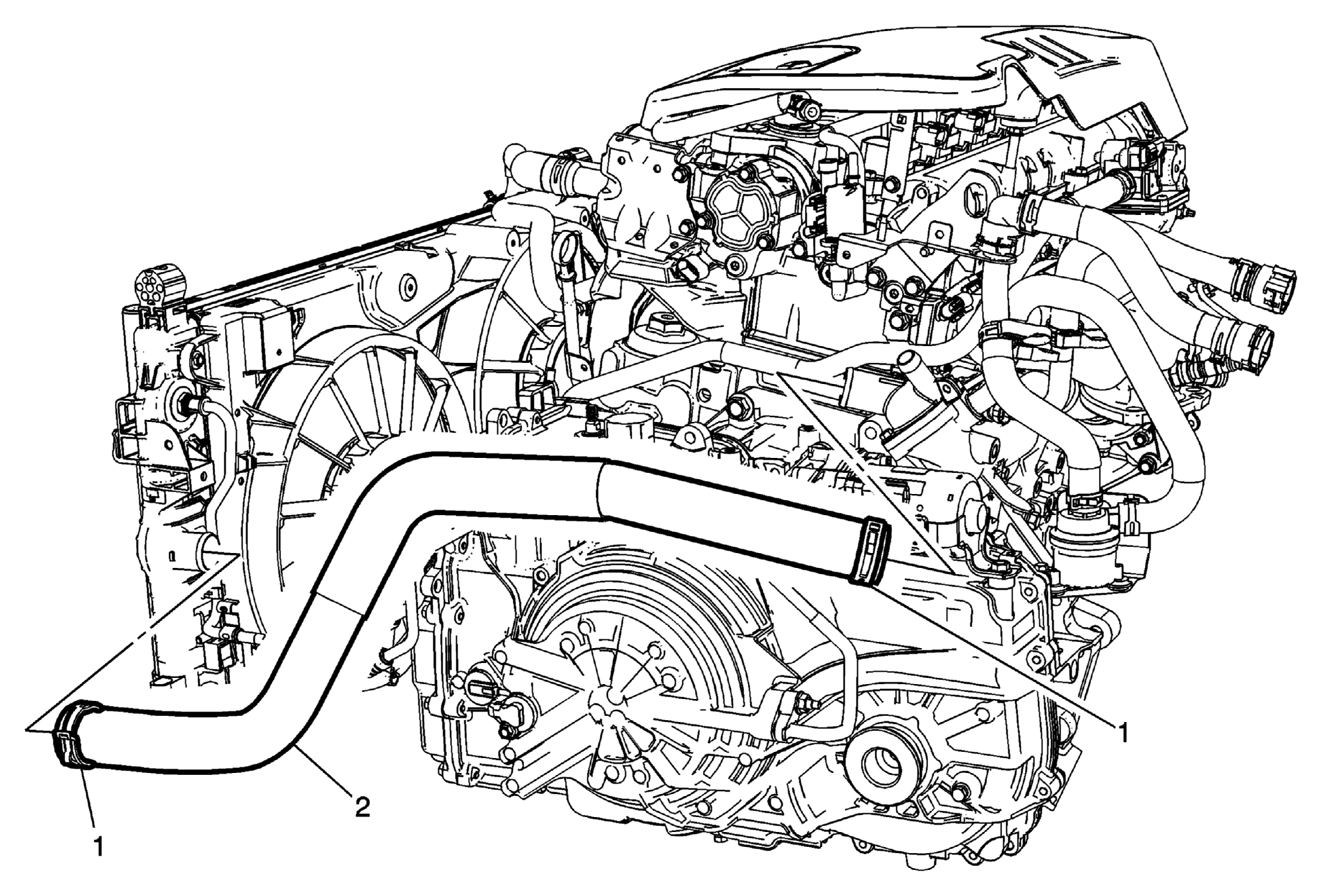

Fig 1: Radiator Outlet Hose (LUK)

GM2563466

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Reposition the engine control module out of the way. Refer to Engine Control Module Replacement .
Reposition the drive motor battery coolant air separator out of the way. Refer to Drive Motor Battery Coolant/Air Separator Replacement .

1

Radiator Outlet Hose Clamps

2

Radiator Outlet Hose
