Radiator Lower Bracket Replacement (LEA, LTG)

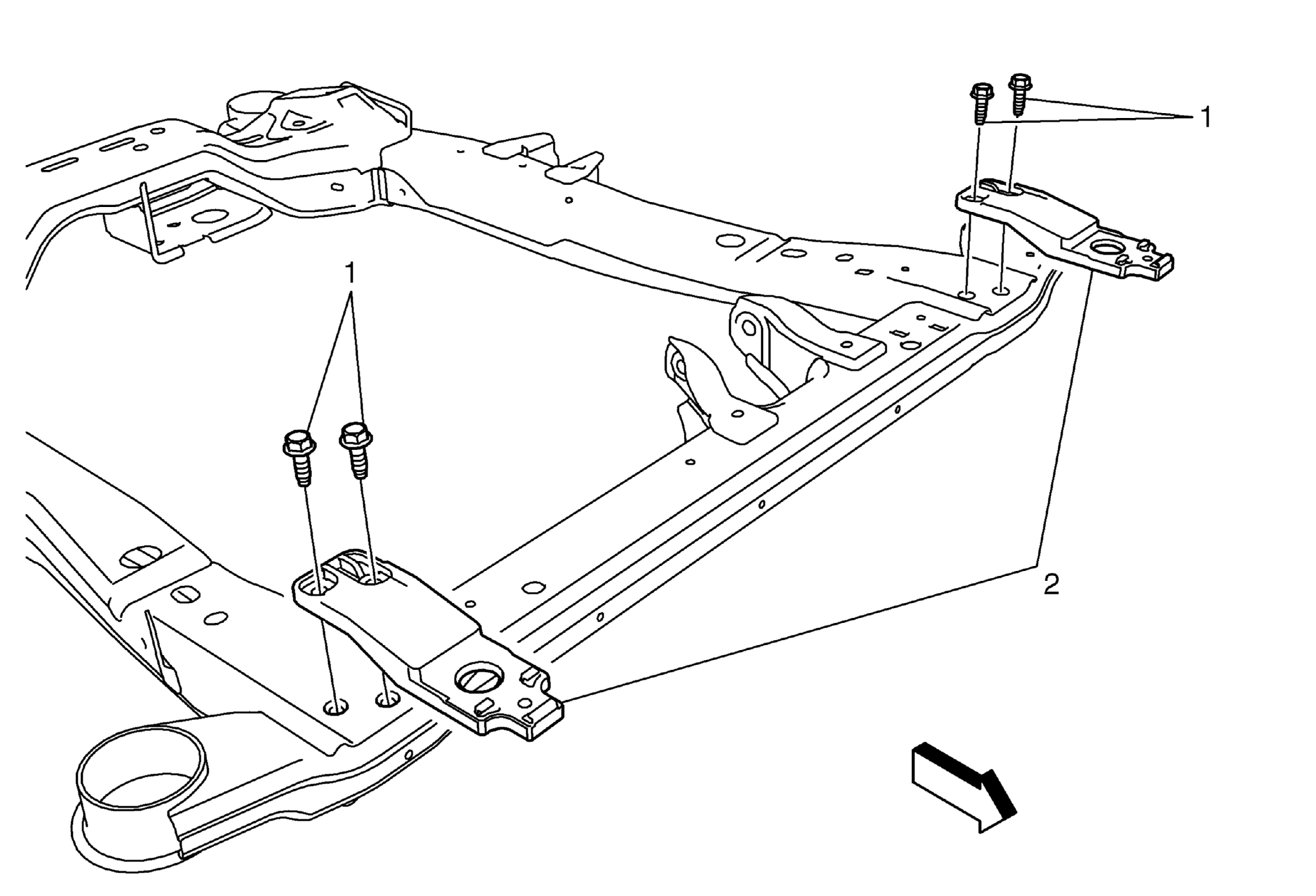

Fig 1: Radiator Support Bracket (LEA, LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Support the radiator.
1	Radiator Lower Bracket Fastener (Qty:4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Radiator Lower Bracket (Qty:2)

Callout

Component Name

Preliminary Procedures

Radiator Lower Bracket Fastener (Qty:4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Radiator Lower Bracket (Qty:2)
